Поз.
Артикул
Описание
1

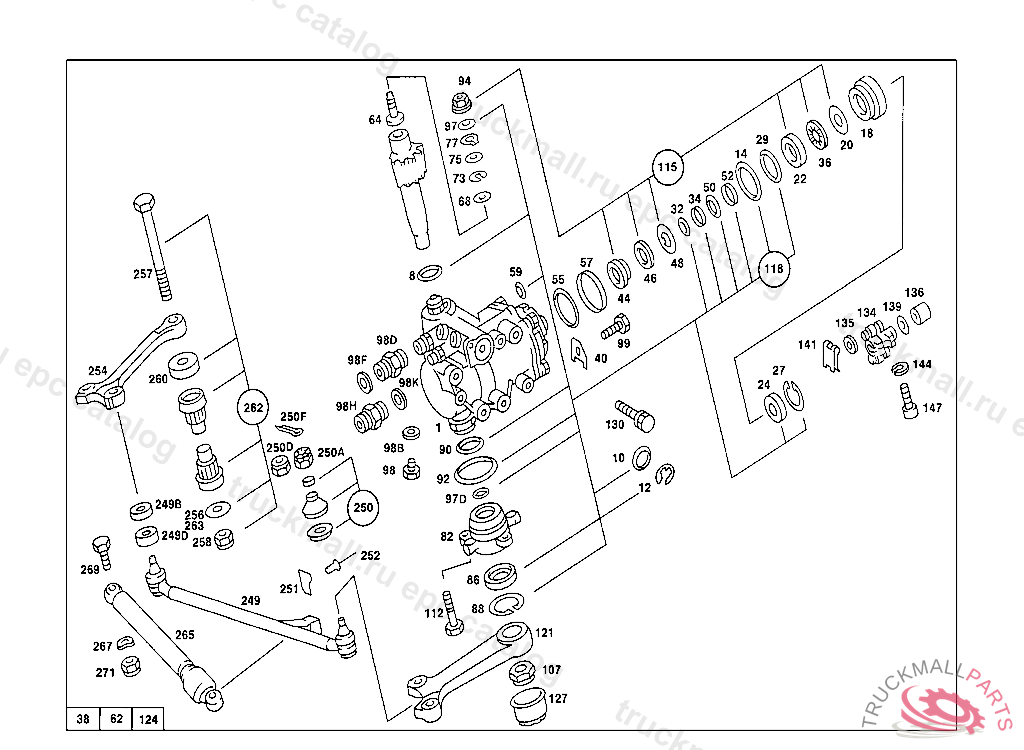

STEERING BOX ASSEMBLY , UP TO CHASSIS: 020 046749 024,025 046779 028,029 028143 032,033 040254 FROM CHASSIS,SEE SPARE PARTS LIST 765.7 PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
8
SEAL RING
8
SEAL RING
10
SEAL RING
12
LOCK
14
SEAL RING
18
THREADED INSERT
20
WASHER
22
NEEDLE BEARING
24
SEAL RING , Replaced By: A0119976746
24
SEAL RING , Replaced By: A0199975147
27
LOCK
29
SEAL RING , 000 10/50,12/52 056283 20/60,22/62 057848 003 10/50,12/52 026979 20/60,22/62 027742 102,103 10/50,12/52 029862 20/60,22/62 041002 105 10/50,12/52 051237 20/60,22/62 052678
32
SEAL RING , 023 10/50,12/52 056283 023 20/60,22/62 057847 033 10/50,12/52 027435 033 20/60,22/62 028022 123 10/50,12/52 029862 123 20/60,12/52 041001 130 10/50,12/52 051237 130 20/60,22/62 052677
34
SEAL RING , 023 10/50,12/52 056283 023 20/60,22/62 057847 033 10/50,12/52 027435 033 20/60,22/62 028022 123 10/50,12/52 029862 123 20/60,12/52 041001 130 10/50,12/52 051237 130 20/60,22/62 052677
36
ROLLER BEARING
38
PISTON
40
LOCK , Replaced By: A1239940005
40
LOCK , 023 10/50,12/52 056283 023 20/60,22/62 057847 033 10/50,12/52 027435 033 20/60,22/62 028022 123 10/50,12/52 029862 123 20/60,12/52 041001 130 10/50,12/52 051237 130 20/60,22/62 052677
44
ANGULAR CONTACT BEARING
46
ROLLER BEARING
48
WASHER
50
SEAL RING
52
SEAL RING
55
SEAL RING , Replaced By: A0149976148
55
SEAL RINGTO 388 476 71 69
57
SEAL RING
59
SEAL RING VALVE
62
STEERG. WORM SECTOR SHAFT , FROM CHASSIS: 023 009059 UP TO CHASSIS: 073 107866 FROM CHASSIS: SEE UNIT SPARE PARTS LIST 104
64
SCREW
68
THRUST WASHER2.70 MM
68
THRUST WASHER2.95 MM
68
THRUST WASHER3.10 MM
68
THRUST WASHER2.80 MM, Replaced By: A1074620262
68
THRUST WASHER3.05 MM
68
THRUST WASHER2.80 MM, TO BE ADAPTED DURING ASSEMBLY
68
THRUST WASHER2.65 MM
68
THRUST WASHER2.85M
68
THRUST WASHER2.75 MM
68
THRUST WASHER3.00 MM
73
LOCK , UP TO CHASSIS: 020 046749 032,033 040254 FROM CHASSIS SEE SPARE-LIST 765.7
75
THRUST WASHER SHOCK ABSORBER TO TOP BRACKET
77
LOCK RINGTO 000 553 37 01,000 553 39 01,
82
STEERING BOX COVER
86
SEAL RING
86
SEAL RING , Replaced By: A0119976846
86
SEAL RING , Replaced By: A0199975047
88
LOCK TOP TO 387 460 14 09
90
SEAL RING
90
SEAL RING
92
SEAL RING
94
NUT
94
NUT , Replaced By: A0009904050
97
SEAL RING PRESSURE REGULATOR,CONNECTION: "23",5 161701
98
SCREW PLUG
99
SCREW BRACKET TO CROSS MEMBER
107
NUT DRAG LINK END M 24X1.5
112
SCREW
115
REPAIR KIT
118
GASKET KIT , 023 10/50,12/52 056283 023 20/60,22/62 057847 033 10/50,12/52 027435 033 20/60,22/62 028022 123 10/50,12/52 029862 123 20/60,12/52 041001 130 10/50,12/52 051237 130 20/60,22/62 052677
121
PITMAN ARM
127
PROTECTIVE PLATE
130
SCREW
130
SCREW , Replaced By: A1299901101
130
SCREW 110 MM, FOR REPAIRS ON SIDE MEMBER ONLY
134
STEERING COUPLING
144
LOCK WASHER PARKING BRAKE VALVE TO WINDOW SILL,013035
147
SCREW
249
DRAG LINK , 10/50,12/52 A 063107 20/60,22/62 A 072609
252
RIVET , Replaced By: N910003004123
252
RIVET AS REQUIRED 7.50 MM
254
STEERING INTERMEDIATE ARM
256
SPACER WASHER , Replaced By: A1244630077
256
WASHER
257
SCREW SHOCK ABSORBER TO TOP BRACKET
258
NUT COMBINATION CYLINDER TO BEARING BRACKET, Replaced By: N910113016002
258
NUT COMBINATION CYLINDER TO BEARING BRACKET
260
DUST CAP
262
INTERMEDIATE LEVER REPAIR KIT
262
REPAIR KIT , Replaced By: A1244600150
262
REPAIR KIT , Replaced By: A1264600819
262
REPAIR KIT. BUSHING , Replaced By: A1244600019
263
SPACER WASHER BRAKE PEDAL TO BEARING BRACKET
265
SHOCK ABSORBER (STEERING SHOCK ABSORBER)
267
SPRING WASHER STEERING COLUMN BRACKET TO CAB
269
SCREW , Replaced By: N000961010031
269
SCREW , Replaced By: N308676010023
269
SCREW BRACKET TO CROSS MEMBER M 10X40
271
NUT , Replaced By: N910113010002
271
HEXAGON NUT
999
FILTER
999
WASHER
999
IGNITION SWITCH , Replaced By: A1164620093
999
WASHERTO115 460 15 05, 16 05, 114 460 02 05
999
BOOT , 023 12/52 112751 22/62 114592 033 046913 123 10/50,12/52 092503 20/60,22/62 094516 130 12/52 116016 22/62 117868
999
SHOCK ABSORBER , Replaced By: A0004635132
999
SHOCK ABSORBER , Replaced By: A0004635132
999
BADGE , Replaced By: A0004640432
999
CONTACT PIECE , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A1074640143
999
LOCK
999
NUT RETAINER REGULATOR AND CUT-OUT, FOR VEHICLES HAVING LOW CAB 344 ON CAB 344
999
PLUG PIN ADDITIONAL CABLE TO SERIES CABLE
999
NUT , Replaced By: A0019907051
999
SPRING
999
PLUG , Replaced By: A0065457828, +006A0015453826, +001A0095453028
999
SWITCH,AUTOMATIC , Replaced By: A0065453224
999
SWITCH,AUTOMATIC , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A0045456724
999
SWITCH,AUTOMATIC , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A0055454124
999
HOSE80 MM, ORDER BY THE METER
999
SEAL RING , Replaced By: A0129978047
999
PLUG HOUSING 14-POLE
999
COVERTO 009 545 56 28
999
SCREW , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A1234620071
999
STEERG. WORM SECTOR SHAFT , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A1074600211
999
REPAIR KIT , Replaced By: A1074600037
999
REPAIR KIT , Replaced By: A1075860246
999
REPAIR KIT , Replaced By: A1074600061
999
BUSHING , Replaced By: A1164620060
999
SCREW , Replaced By: N000931008046
999
BOOT , Replaced By: A0003300485
999
REPAIR KIT , Replaced By: A1143300085
999
REPAIR KIT , Replaced By: A1165860046
999
GASKET , Replaced By: A1164620280
999
GASKET , Replaced By: A1164620480
999
STEERING SHAFT , Replaced By: A1164601109
999
DRAG LINK , Replaced By: A1164600905
999
DRAG LINK , 10/50,12/52 A 063106 20/60,22/62 A 072608, Replaced By: A1234601505, +002N913002010002
999
STEER. COLUMN JACKET TUBE , Replaced By: A1164603316, +001A1164620396
999
STEER. COLUMN JACKET TUBE , Replaced By: A1164603316
999
STEER. COLUMN JACKET TUBE , Replaced By: A1164603816, +001A1234600203, +001A1164602909, +001A0029818625, +002N000471025000, +001N000936018005
999
STEERING LOCK , 023 009623 024 007307 043 011383 WITH CENTRAL LOCKING MECHANISM UP TO CHASSIS: 022 005192 023 012497 024 021807 026 000025 042 004216 043 013577 044 047075 LESS CENTRAL LOCKING MECHANISM UP TO CHASSIS: 022 005267 023 012544 024 022006 026 000061 042 004280 043 013577 044 047451 IN PLACE OF 116 462 02 79 WITH LOCK DEFINED WITH KEY BITTING HD,USE 116 462 01 79, AND WITH KEY BITTING HA,USE 116 460 06 04, Replaced By: A1164620830, +001A1164620023, +001A1164620279, +001A1236890056, +001A1236890080
999
BOOT , Replaced By: A1164620396
999
STEERING LOCK , Replaced By: A1164620830
999
SPACER WASHER , Replaced By: A1164630452
999
BUSHING ,F 189738
999
PROTECTIVE RING
999
PAD , 010173
999
PROTECTIVE RING , Replaced By: A6019900540
999
REPAIR KIT , Replaced By: A1235860246
999
SCREW
999
SCREW , Replaced By: A1299901101
999
SCREW , Replaced By: A1169900601
999
WASHER
999
SPRING
999
SPRING
999
NUT
999
REPAIR KIT , Replaced By: A1234600050
999
SCREW
999
WASHER
999
COTTER PIN CONNECTOR TO BRAKE PRESSURE REGULATOR LEVER
999
SEAL RING SCREW PLUG
999
SEAL RING LINE CONNECTION
999
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
999
NUT BRACKET TO CROSS MEMBER
999
SCREW FITTING
999
SCREW FITTING
