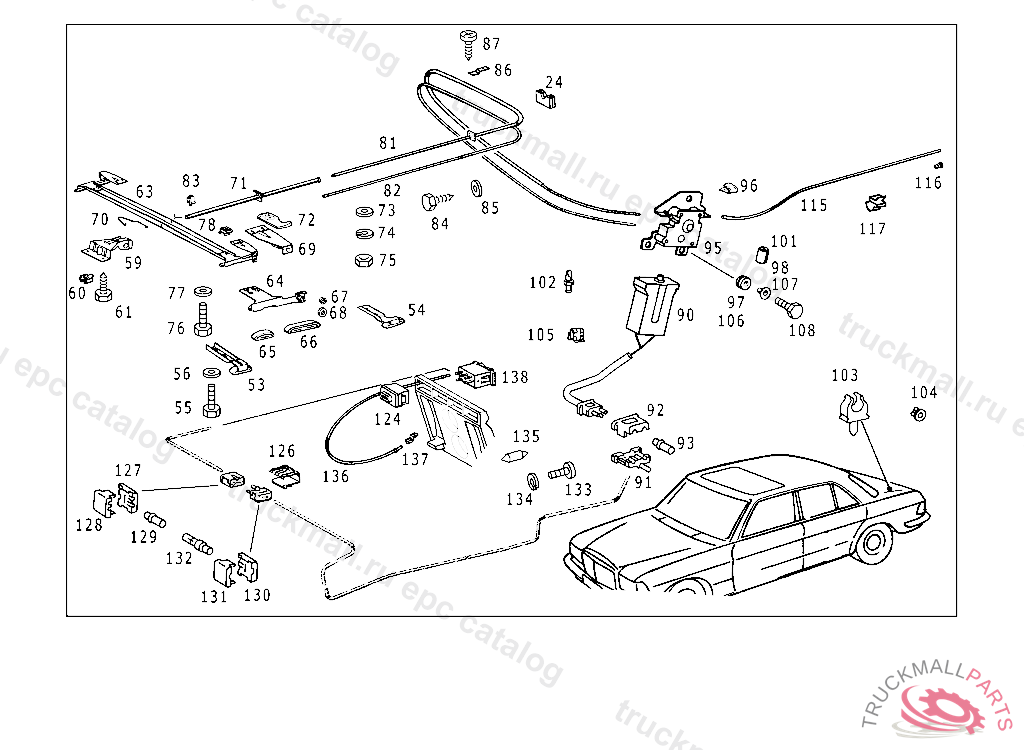

Поз.
Артикул
Описание
24
SEAL
53
ANGLE FRONT LEFT AND RIGHT
54
ANGLE REAR LEFT
54
ANGLE REAR RIGHT
55
SCREW SHUT-OFF VALVE TO BRACKET
56
TOOTHED WASHER , 123.020 082784 123.023 100522 123.026 050534 123.120 116041 123.123 080963 123.126 045537 123.130 101733
59
PLATE
60
LOCK
61
SHEET METAL SCREW BRACKET TO CAB FLOOR
63
BRIDGE
64
ANGLE RIGHT
64
ANGLE LEFT
65
SLIDING JAW , 023 143560 033 058449 123 130866 130 149678
66
SLIDING JAW
67
MOUNTING
68
ROLLER LIFTING ANGLE
69
ANGLE
70
SPRING
71
TUBE
72
PAD HEIGHT ADJUSTMENT,RIGHT
72
PAD HEIGHT ADJUSTMENT,LEFT
73
WASHER BOOT TO CAB FLOOR
74
LOCK WASHER BRACKET TO STEERING COLUMN END
75
NUT TACHOGRAPH TO BRACKET
76
SCREW BRACKET TO TAIL LAMP BRACKET
77
TOOTHED WASHER , 123.020 082784 123.023 100522 123.026 050534 123.120 116041 123.123 080963 123.126 045537 123.130 101733
78
NUT RETAINER
81
TUBE
81
TUBE
82
PULL. CABLE
82
CABLE
83
CLIP PULL TO SLIDING ROOF PLATE,FRONT
84
SHEET METAL SCREW
85
WASHER BRACKET TO SUPPORT
86
CLAMP TUBE TO REAR PILLAR
87
SHEET METAL SCREW ANTENNA CABLE TO REAR INSIDE PILLAR
90
ELECTRIC MOTOR
91
PLUG HOUSING
92
COVER
93
PLUG PIN ADDITIONAL CABLE TO SERIES CABLE
95
GEARING ELECTRIC SLIDING ROOF, 033 102015 123 329277 130 276372
96
CLIP
97
GROMMET GEARING TO BRACKET
98
BUSHING MOTOR TO BRACKET
101
CONNECTOR
102
LINK EMERGENCY CRANK, UP TO CHASSIS126.021 004328 022,023 014559 032,033 006153 036,037 005335 120 000195
103
BRACKET CONNECTOR
104
CLIP CONNECTOR
105
CLIP
106
GROMMET GEARING TO BRACKET
107
BUSHING MOTOR TO BRACKET
108
COVER RAIL
108
SCREW COVER PLATE TO COVER PLATE M 6 X 12
115
TUBE IN LUGGAGE COMPARTMENT
116
CAP
117
CLIP13 MM, Replaced By: A0129884678
124
CONNECTOR , Replaced By: A0008212426, +004A0015454426, +001A0105456628
126
CLIP PLUG TO REAR PILLAR
127
PIN BUSHING HOUSING , 10/20 UP TO CHASSIS 4 411810,50/60 UP TO CHASSIS 4 414810
128
COVER , 10/20 UP TO CHASSIS 4 411810,50/60 UP TO CHASSIS 4 414810
129
ROUND PIN BUSHING WITH DETENT AND WITH CATCH FOR HOUSING 2.5 MM2
130
PLUG HOUSING
131
COVER
132
PLUG PIN ADDITIONAL CABLE TO SERIES CABLE
133
SCREW ELECTRIC CABLE TO FUSE BOX
134
LOCK WASHER T-FITTING TO BRACKET
135
FUSEA16
136
LIGHT GUIDE
137
CABLE SHOE , UP TO CHASSIS 107.022 003727 EXCEPT FOR 003725,003726,107.023 011770 EXCEPT FOR 011769,107.024 018073 EXCEPT FOR 018049, 018052-018072 AND FOOTN.123
138
SWITCH SLIDING ROOF
999
SLIDING SHOE
