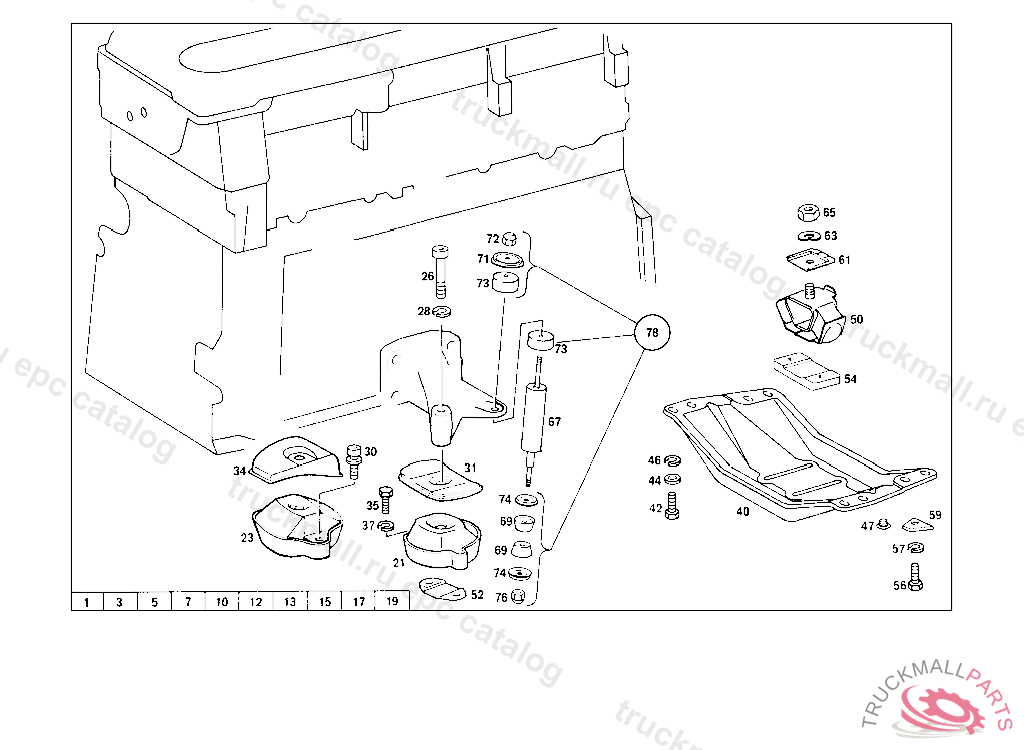

Поз.
Артикул
Описание
21
RUBBER MOUNTING
26
SCREW COMPRESSOR TO MOUNTING PLATE, HALTERUNG KLIMAKOMPRESSOR FA.KONVEKTA
28
LOCK WASHER OIL PUMP TO TRANSMISSION CASE
30
COMBINATION BOLT
31
SCREENING PLATE , Replaced By: A1232410234
31
SCREENING PLATE ENGINE FRONT RIGHT MOUNTING
34
SCREENING PLATE , UP TO CHASSIS: 020 044381, EXCEPT FOR 030624-036882 024,025 044271, EXCEPT FOR 034172-039073 028,029 024154 032,033 039349, EXCEPT FOR 030603-034116
35
SCREW BRACKET TO FRAME SIDE MEMBER
37
SPRING WASHER AIR COMPRESSOR LINE TO ENGINE,5 812731 - 5 8174215 936366 - 5 999999K 000001N 817422K 126820
37
SPRING WASHER CAB FLOOR
42
SCREW , Replaced By: N304017008021
42
SCREW PIPE CLAMP
44
WASHER REAR FOGLAMP TO BRACKET
46
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
47
SCREW ON CAB
50
RUBBER MOUNTING , Replaced By: A1162400418
52
SHIM ENGINE REAR SUPPORT TO MOUNTING
57
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
59
WASHER BRACKET TO ENGINE MOUNTING USED WITH FIVE-SPEED TRANSMISSION
61
MOUNTING PLATE MOUNTING WITH SUPPORT TO TRANSMISSION
63
SPRING WASHER AIR COMPRESSOR LINE TO ENGINE,5 812731 - 5 8174215 936366 - 5 999999K 000001N 817422K 126820
63
SPRING WASHER CAB FLOOR
65
NUT. HEXAGON NUT SHOCK ABSORBER MOUNTING
65
NUT , Replaced By: N308673012002
67
ENGINE VIBRATION ABSORBER
69
RUBBER BUFFER , 083 000039 183 000380
71
RETAINER , 026,028 047555 030 022730 033 041004
72
NUT , Replaced By: N913002006009
72
NUT OIL TANK TO BRACKET
73
RUBBER BUFFER
74
RETAINER
76
NUT , Replaced By: N913002006009
76
NUT OIL TANK TO BRACKET
78
REPAIR KIT ENINE SHOCK ABSORBER MOUNTING PARTS
999
SCREW , UP TO CHASSIS: 020 044381, EXCEPT FOR 030624-036882 024,025 044271, EXCEPT FOR 034172-039073 028,029 024154 032,033 039349, EXCEPT FOR 030603-034116
999
SCREW , Replaced By: N304017008021
999
SCREW , Replaced By: N007984012011
999
WASHER , Replaced By: A1269900540
999
REPAIR KIT , Replaced By: A1162400117
999
ENGINE SUPPORT , Replaced By: A1162420601
999
ENGINE VIBRATION ABSORBER
999
RUBBER BUFFER , Replaced By: A1232410365
999
RUBBER BUFFER , Replaced By: A1232410365
999
RUBBER BUFFER , Replaced By: A1072410065
999
WASHER , Replaced By: A1232420066
999
ENGINE VIBRATION ABSORBER
999
ENGINE VIBRATION ABSORBER
