Поз.
Артикул
Описание

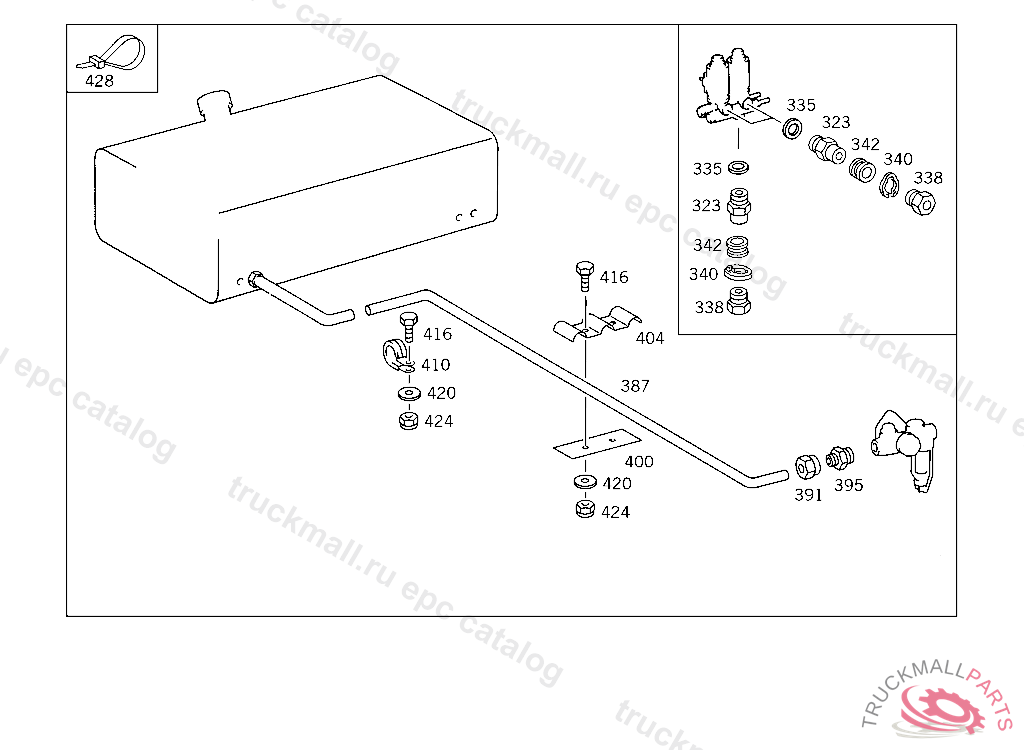

323
FITTING LINE CONNECTION
335
SEAL RING LINE CONNECTION
335
SEAL RING SRREW PLUG
338
SCREW. UNION SCREW , Replaced By: A0009973734
338
SCREW. UNION SCREW LINE CONNECTION
340
LOCK , Replaced By: A0009945448
340
LOCK LINE CONNECTION
342
SEAL RING , Replaced By: A0009940747
342
LOCK RING LINE CONNECTION
387
LINE WITH BANJO UNION
387
LINE FUEL FILTER,063636
391
NUT. UNION NUT RETURN
395
SCREW FITTING , Replaced By: A4039971172
395
FITTING FROM INTAKE MANIFOLD TO VACUUM LINE, FROM IDENT NO.002799-360785
400
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, TOP
400
BRACKET FUEL LINES
404
CLAMP FUEL LINE, 741959
404
CLAMP LINE MOUNTING
410
CLAMP SENSOR CABLE TO BRACKET
410
CLAMP SENSOR CABLE TO BRACKET
416
SCREW CAB FLOOR COVERING M 6X25
416
SCREW CAB FLOOR COVERING M 6X25
420
WASHER COMPRESSED AIR LINE TO BRACKET
420
WASHER , Replaced By: N009021006208
424
NUT PUMP TO BRACKET
424
NUT PUMP TO BRACKET
424
NUT , Replaced By: N913004006001
428
LOOM TIE LINE MOUNTING
999
CLAMP HOSE TO FLANGE AND TO VALVE
999
SCREW PUMP TO BRACKET
999
SEAL RING LOAD/NO-LOAD VALVE,CONNECTIONS: "20,21",5 727400
999
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
999
SCREW , Replaced By: N304017006016
999
FITTING FROM PUMP TO CYLINDER
999
HOSE , Replaced By: A3074290035, +001A0019909871, +001A0029906071
999
BRAKE HOSE AT CYLINDER, TO BE ADAPTED DURING ASSEMBLY
999
TS DOUBLE FITTING SOLENOID VALVE
999
SCREW CONNECTION
999
ELBOW FITTING FROM PUMP TO CYLINDER, Replaced By: N000000006197
