Поз.
Артикул
Описание

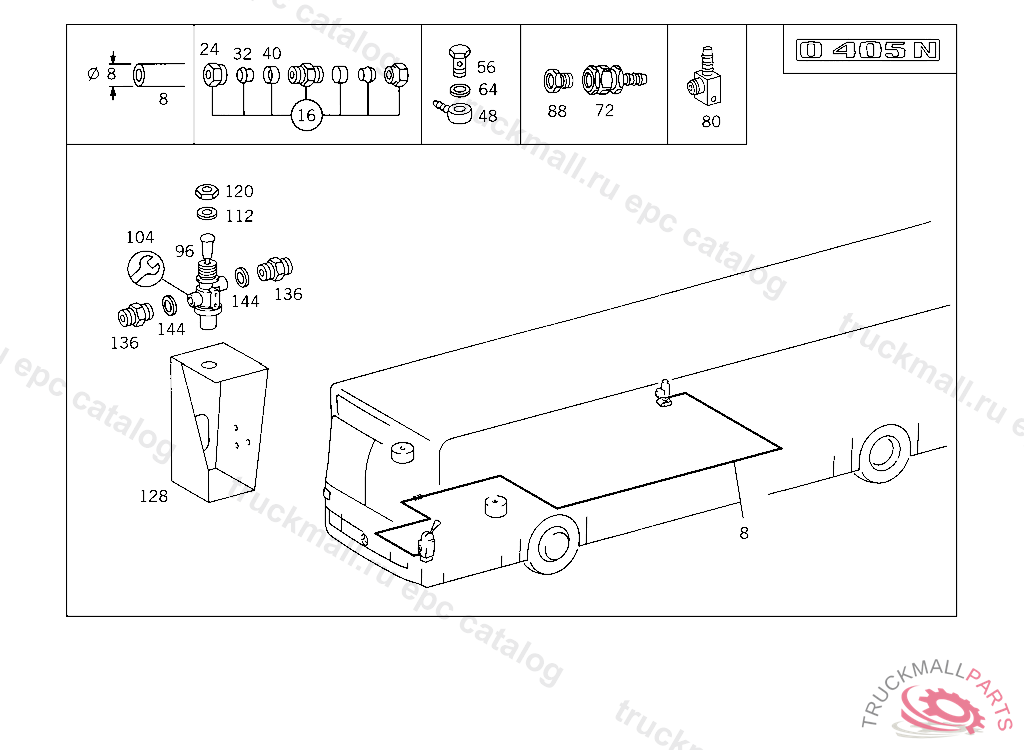

8
PLASTIC PIPE AERATION, ORDER BY THE METER
8
PLASTIC PIPE. HOSE AERATION 6X8 MM, ORDER BY THE METER
16
FITTING (PARTS KIT),LINE RUPTURE
16
FITTING , Replaced By: A0029905971
24
UNION NUT LINE CONNECTION
32
GLAND LINE CONNECTION
40
SLEEVE LINE CONNECTION
48
BANJO UNION HEATING CONNECTION,K 169122
56
HOLLOW SCREW FUEL LINE TO FEED PUMP
56
HOLLOW SCREW , Replaced By: N915036010108
64
SEAL RING FUEL LINE TO FEED PUMP
72
CONNECTOR COMPRESSED-AIR-LINE PLUG-CONNECTION
80
CONNECTOR DISTRIBUTOR TO FRAME
88
SCREW. UNION SCREW LINE CONNECTION
88
SCREW. UNION SCREW , Replaced By: A0009973734
96
VALVE TWO-WAY,4 685151
96
VALVE TWO-WAY,4 685151
104
REPAIR KITTO 001 429 55 44
112
WASHER TWO-WAY VALVE TO BRACKET
120
NUT 3/2-WAY VALVE TO CAB,4 685151
120
NUT , Replaced By: N080705026003
128
CONSOLE TWO-WAY VALVE
128
CONSOLE TWO-WAY VALVE
136
FITTING PARKING BRAKE VALVE
136
FITTING LINE CONNECTION
144
SEAL RING FUEL LINE TO FEED PUMP
999
ELBOW FITTING , Replaced By: A0049905371
999
ELBOW FITTING HOSE WIDTH, 9 MM,TO M22
999
ELBOW FITTING HOSE WIDTH, 6 MM,TO M22
