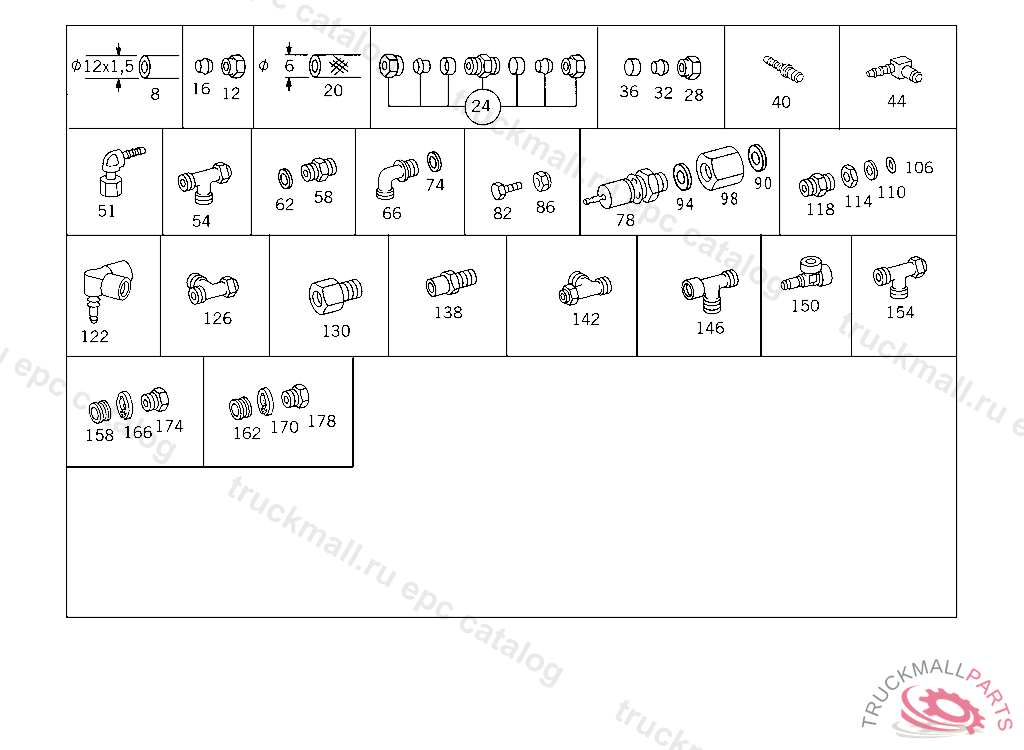

Поз.
Артикул
Описание
8
LINE FROM FOUR-CIRCUIT PROTECTIVE VALVE TO AIR RESERVOIR 9X12 MM, LENGTH AVAILABLE 3000 MM
12
UNION NUT LINE CONNECTION
12
UNION NUT LINE CONNECTION, Replaced By: N000000006239
16
SEAL CONE LINE CONNECTION
16
GLAND , Replaced By: A0019901967
20
PLASTIC PIPE AERATION, ORDER BY THE METER
20
PLASTIC PIPE. HOSE AERATION 6X8 MM, ORDER BY THE METER
24
FITTING (PARTS KIT),LINE RUPTURE
28
UNION NUT LINE CONNECTION
32
GLAND LINE CONNECTION
36
SLEEVE LINE CONNECTION
40
CONNECTOR , Replaced By: A0029905478
44
ELBOW FITTING HOSE WIDTH, 9 MM,TO M22
44
ELBOW FITTING HOSE WIDTH, 6 MM,TO M22
44
ELBOW FITTING , Replaced By: A0049905371
51
ELBOW FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION M 14 / 6 MM
54
T-FITTING POWER STEERING
58
FITTING DELIVERY LINE TO PUMP
62
SEAL RINGTO 006 997 00 72
66
ELBOW FITTING FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION: "1", 620.415 UP TO CHASSIS 5 014668 620.416 UP TO CHASSIS 5 000515 620.417 UP TO CHASSIS 4 972023
66
ELBOW FITTING AT AIR RESERVOIR TO 003 432 02 01
66
ELBOW FITTING AT AIR RESERVOIR TO 003 432 02 01
74
SEAL RING TO 18-MM-DIA. COMPRESSED AIR LINES
78
VALVE (SAFETY VALVE) WABCO 10 BAR
78
VALVE PRESSURE LIMIT,K 025180
78
VALVE PRESSURE LIMIT,K 025180
82
SCREW LICENSE PLATE TO BRACKET
82
SCREW , Replaced By: N304017006020
86
NUT PUMP TO BRACKET
86
NUT , Replaced By: N913004006001
90
SEAL RING VALVE TO VALVE,K 025179
94
SEAL RING LOAD/NO-LOAD VALVE,CONNECTIONS: "20,21",5 727400
98
ADAPTER FITTING FLUID RESERVOIR TO BRACKET
98
ADAPTER FITTING RESERVOIR TO SUPPORT
106
O-RING CHECK VALVE TO AIR RESERVOIR
110
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
114
NUT CHECK VALVE TO AIR RESERVOIR
118
FITTING ANTI-FREEZE DEVICE TO PRESSURE REGULATOR
122
FITTING FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "20"
126
T-FITTING POWER STEERING
130
FITTING AT AIR RESERVOIR
130
T-FITTING LEVEL ADJUSTMENT VALVE,CONNECTION: "2"
138
FITTING LINE CONNECTION
142
T-FITTING FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION: "10"
146
TANK RECESS. T-FITTING LINE CONNECTION
150
T-FITTING BRAKE POWER REGULATOR,CONNECTION: "10", Replaced By: A0049971689, +001A0009974834
150
T-FITTING BRAKE POWER REGULATOR,CONNECTION: "10", Replaced By: A0049971689, +001A0009974834
154
T-FITTING 3/2-WAY VALVE,CONNECTION: "33", UP TO IDENT NO. 5 385481 FROM IDENT NO. SEE STANDARD VERSION
158
SEAL RING COMPRESSED-AIR-LINE PLUG-CONNECTION
158
SEAL RING COMPRESSED-AIR-LINE PLUG-CONNECTION
162
LOCK RING LINE CONNECTION
162
SEAL RING , Replaced By: A0009940747
166
LOCK COMPRESSED-AIR-LINE PLUG-CONNECTION
166
LOCK COMPRESSED-AIR-LINE PLUG-CONNECTION
170
LOCK LINE CONNECTION
170
LOCK , Replaced By: A0009945448
174
SCREW. UNION SCREW LINE CONNECTION
174
SCREW. UNION SCREW LINE CONNECTION
178
SCREW. UNION SCREW LINE CONNECTION
178
SCREW. UNION SCREW , Replaced By: A0009973734
999
VALVE ,K 025179, Replaced By: A0044297044
999
ADAPTER FITTING T-FITTING
999
BRACKET
999
FITTING OVERFLOW VALVE,CONNECTION: "10",K 025179
999
SEAL RING LINE CONNECTION
