Поз.
Артикул
Описание

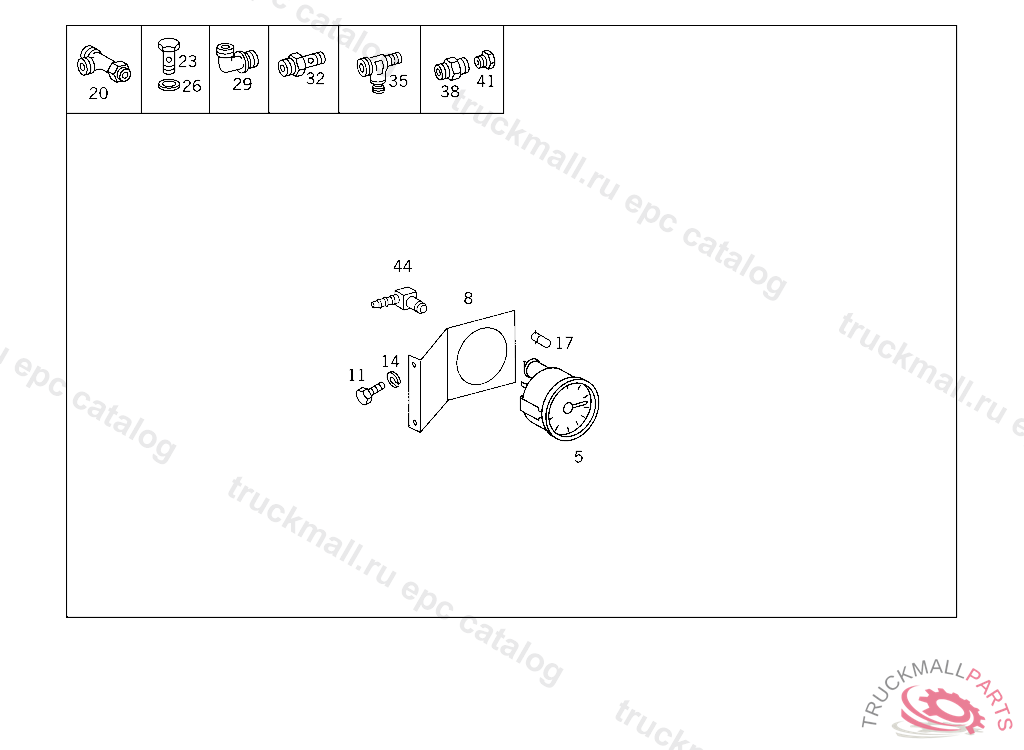

5
AIR PRESSURE GAUGE BRAKE CIRCUITS I AND II
5
AIR PRESSURE GAUGE BRAKE CIRCUITS I AND II
5
AIR PRESSURE GAUGE
5
AIR PRESSURE GAUGE
5
AIR PRESSURE GAUGE , Replaced By: A0015425708
5
AIR PRESSURE GAUGE
8
BRACKET PRESSURE GAUGE
11
SCREW LEVER TO SHAFT
11
SCREW , Replaced By: N304017005002
14
LOCK WASHER T-FITTING TO BRACKET
17
BULB INSTRUMENT LIGHTING 24V/2W
20
T-FITTING EXHAUST-BRAKE POWER CYLINDER
23
HOLLOW SCREW FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "10",K 009079
23
HOLLOW SCREW FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION: "24"
23
HOLLOW SCREW LINE CONNECTION
26
SEAL RING LINE CONNECTION
29
FITTING FROM PUMP TO CYLINDER
29
ELBOW FITTING FROM PUMP TO CYLINDER, Replaced By: N000000006197
32
HOLLOW SCREW FITTING LEFT AND RIGHT COMBINATION CYLINDERS, CONNECTION: "11,12",5 356525
32
HOLLOW SCREW FITTING LEFT AND RIGHT COMBINATION CYLINDERS, CONNECTION: "11,12",5 356525
35
T-FITTING AIR DEHYDRATOR,CONNECTION:21"
38
FITTING FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "20"
41
SCREW. UNION SCREW LINE CONNECTION
44
ELBOW FITTING HOSE WIDTH, 4 MM,TO M 22
