Поз.
Артикул
Описание

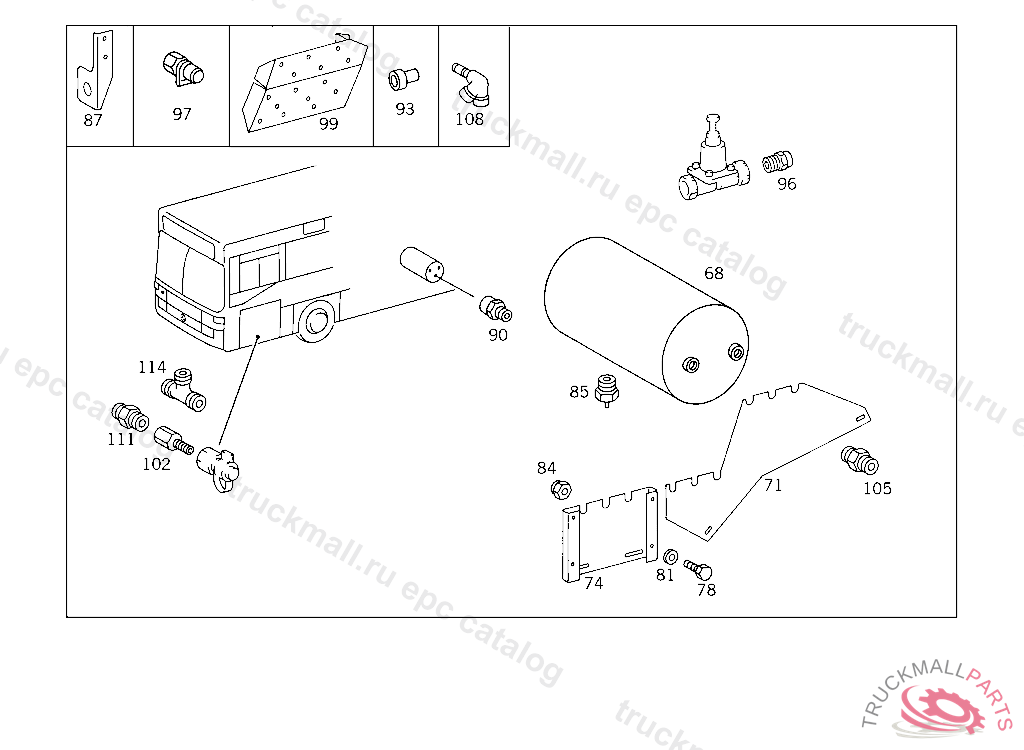

68
RESERVOIR STEEL 20L, D246MM
68
COMPRESSED AIR RESERVOIR COMPRESSED AIR 20 L.
68
RESERVOIR COMPRESSED AIR 20 L., Replaced By: A0064329801
71
BRACKET AIR RESERVOIR
74
BRACKET AIR RESERVOIR TO BRACKET
78
SCREW PIPE CLAMP
78
SCREW , Replaced By: N304017008021
81
WASHER BRACKET TO LEFT SIDE MEMBER
81
WASHER , Replaced By: N009021008213
84
NUT , Replaced By: N913004008001
85
VALVE DRAIN, Replaced By: A0004322107
85
VALVE. DRAIN VALVE DRAIN
85
VALVE DRAIN, Replaced By: A0004322107
85
VALVE DRAIN, Replaced By: A0004322407
85
VALVE. DRAIN VALVE DRAIN
87
BRACKET FILLING CONNECTION
90
FITTING LINE CONNECTION
93
PLUG DISTRIBUTOR,CONNECTION: "11",5 411349
96
FITTING LINE CONNECTION
97
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
97
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
97
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
97
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
97
TEST CONNECTION
99
BRACKET TEST CONNECTIONS
102
ADAPTER FITTING TEST CONNECTION
105
FITTING LINE CONNECTION
108
ADAPTER FITTING FLUID RESERVOIR TO BRACKET
108
FITTING TEST CONNECTIONS
111
FITTING QUICK BREATHER VALVE,REAR, CONNECTION: "23"
111
FITTING FROM 3/2-WAY VALVE TO PRESSURE CONTROL VALVE
114
T-FITTING EXHAUST-BRAKE POWER CYLINDER
999
RESERVOIR COMPRESSED AIR 10 L.
999
RESERVOIR COMPRESSED AIR 30 L
999
RESERVOIR PNEUMATIC SUSPENSION AIR RESERVOIR 40 L
999
BRAKE VALVEWABCO
999
ARTICULATION PIECE ACCELERATOR PEDAL
999
CONSOLE AIR RESERVOIR 10 L
999
COVERING BOTTOM,087672089587
999
LINE , NOT USED
999
COVERING TOP,087672089587
999
COVERING STEERING COLUMN PANELLING,087556
999
STEERING COLUMN BRACKET ,068088
999
STEERING SUPPORT (STEERING BRACKET)
999
PROTECTIVE SLEEVE STEERING COLUMN PANELLING
999
PITMAN ARM
999
PITMAN ARM , Replaced By: A3574633001
999
NUT , Replaced By: N304032008006
