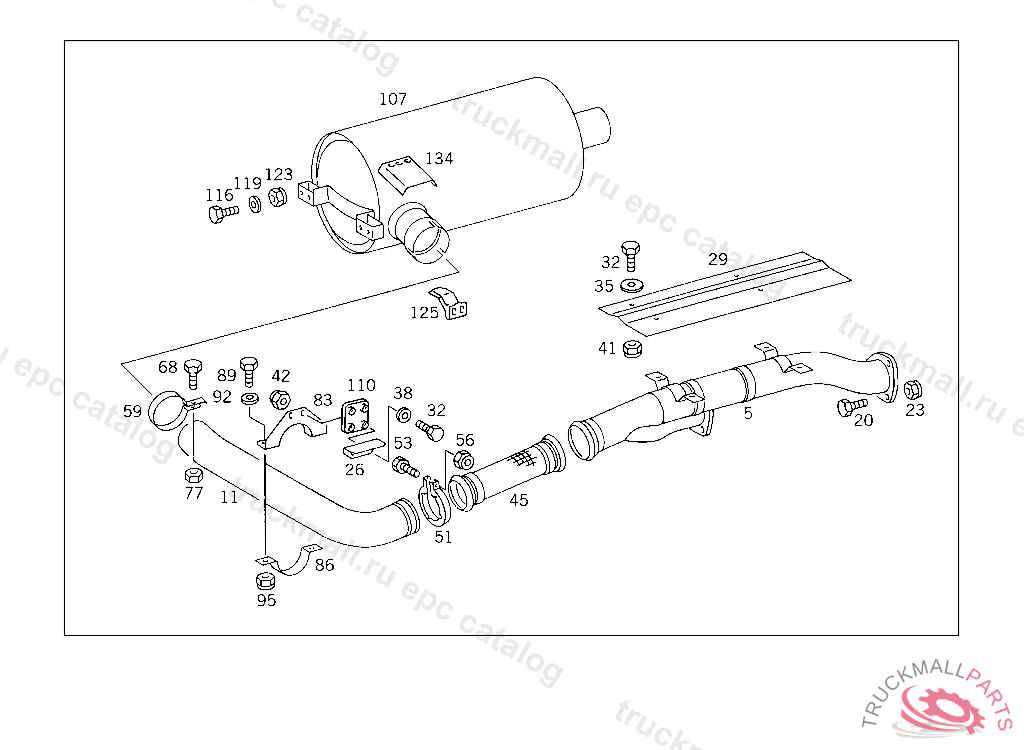

Поз.
Артикул
Описание
11
EXHAUST PIPE FRONT
11
EXHAUST PIPE FRONT
26
PROTECTIVE PLATE REAR EXHAUST PIPE
32
SCREW VALVE TO BRACKET
32
SCREW VALVE TO BRACKET
38
WASHER EXHAUST MUFFLER TO STRAP
38
WASHER EXHAUST MUFFLER TO STRAP
38
WASHER , Replaced By: N000125008443
42
NUT , Replaced By: N913004008001
42
NUT , Replaced By: N913004008001
45
FLEXIBLE METAL TUBE FRONT LEFT
51
CLAMP FLEXIBLE METAL TUBE TO CONNECTOR AND TO COLLAR
53
SCREW , Replaced By: N304017008028
56
NUT , Replaced By: N913004008001
59
CLAMP FLEXIBLE METAL TUBE TO EXHAUST PIPE
59
CLAMP , Replaced By: A3574921240
59
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
59
CLAMP , Replaced By: N071555104501
59
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
68
SCREW CONNECTOR TO REAR SHIFTING ROD
68
SCREW , Replaced By: N304017010047
68
SCREW END PIECE TO EXHAUST PIPE M 10X25
77
NUT BRACKET TO SUPPORT AND TO END PIECE
83
BRACKET EXHAUST PIPE TO SUPPORT
86
BRACKET AT BRACKET
89
SCREW EXHAUST PIPE TO BRACKET
92
WASHER EXHAUST MUFFLER TO STRAP
92
WASHER , Replaced By: N000125008443
95
NUT , Replaced By: N913004008001
107
EXHAUST MUFFLER
110
DAMPING PAD EXHAUST MUFFLER TO SUBSTRUCTURE,047203
110
DAMPING PAD , Replaced By: A0004920082
116
SCREW VALVE TO BRACKET
116
SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30
116
SCREW , Replaced By: N304017008027
119
WASHER EXHAUST MUFFLER TO STRAP
123
NUT BRACKET TO SIDE MEMBER
123
NUT REAR EXHAUST PIPE TO BRACKET
125
CONSOLE CONSOLE TO EXHAUST MUFFLER,032182
134
PROTECTIVE PLATE (HEAT SHIELD),EXHAUST MUFFLER, TO BE ADAPTED DURING ASSEMBLY
999
RUBBER BUFFER COVERING TO FRAME
999
BRACKET
999
BRACKET
