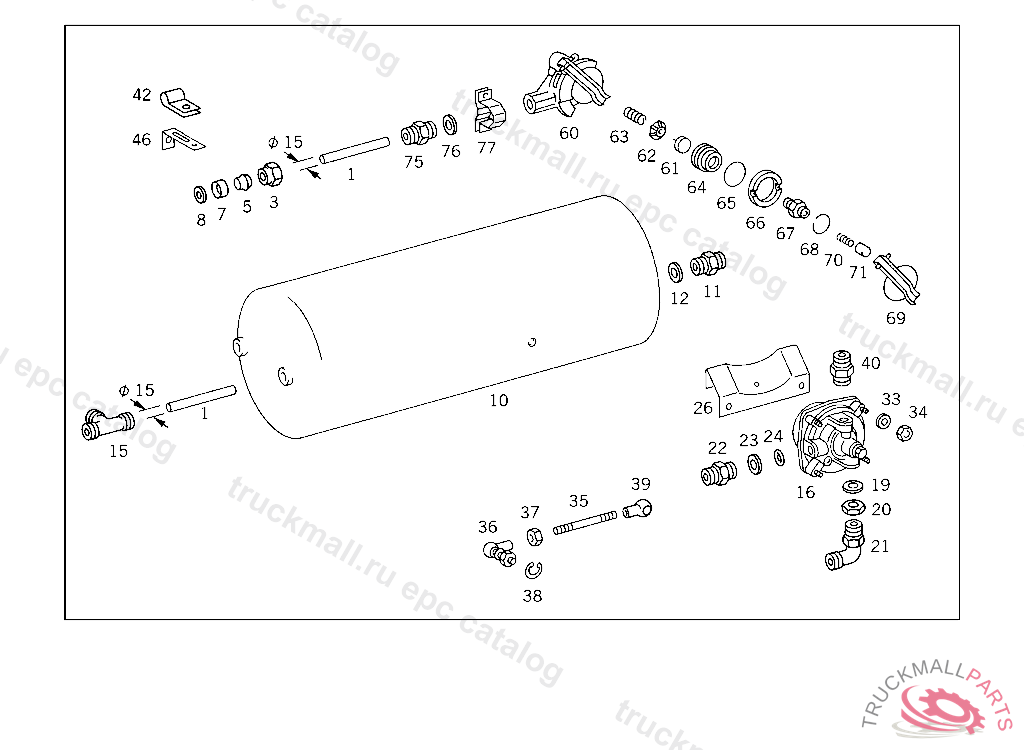

Поз.
Артикул
Описание
1
TUBE FROM HIGH PRESSURE HOSE TO STEERING, LENGTH AVAILABLE: 3000 MM
3
UNION NUT BUTT SCREW CONNECTION
5
SLIP RING BRAKE LINE COUPLING
7
THRUST RING BUTT SCREW CONNECTION
8
SEAL RING DOUBLE BRAKE LINE COUPLING, CONNECTIONS: "11,12"
8
SEAL RING , Replaced By: N007603012121
10
RESERVOIR COMPRESSED AIR
11
DOUBLE FITTING BETWEEN THE LINES, BUTT CONNECTION
12
SEAL RING LINE CONNECTION
15
T-FITTING BETWEEN THE LINES
16
BRAKE VALVE TRAILER BRAKE VALVE, 673429
16
BRAKE VALVE TRAILER BRAKE VALVE, 673429
16
BRAKE VALVEBOSCH, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
19
SEAL RING LINE CONNECTION
20
NUT CHECK VALVE TO AIR RESERVOIR
20
NUT CHECK VALVE TO AIR RESERVOIR
21
ELBOW FITTING CHECK VALVE TO AIR RESERVOIR
21
ELBOW FITTING CHECK VALVE TO AIR RESERVOIR
22
DOUBLE FITTING BETWEEN THE LINES, BUTT CONNECTION
22
DOUBLE FITTING BETWEEN THE LINES, BUTT CONNECTION
23
THRUST RING CHECK VALVE TO AIR RESERVOIR
23
THRUST RING CHECK VALVE TO AIR RESERVOIR
23
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
24
O-RING CHECK VALVE TO AIR RESERVOIR
24
O-RING CHECK VALVE TO AIR RESERVOIR
26
BRACKET TRAILER BRAKE VALVE
26
BRACKET TRAILER BRAKE VALVE
33
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
33
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
34
NUT BRACKET TO SUPPORT AND TO END PIECE
34
NUT BRACKET TO SUPPORT AND TO END PIECE
35
PULL ROD FROM CONTROL SHAFT BEARING TO ENGINE SHAFT, TO BE ADAPTED DURING ASSEMBLY
35
PULL ROD FROM CONTROL SHAFT BEARING TO ENGINE SHAFT, TO BE ADAPTED DURING ASSEMBLY
36
ANGLE JOINT DUMPER PUMP
37
NUT
38
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
39
BALL SOCKET ROD TO BALL PIVOT
40
DOUBLE FITTING BETWEEN THE LINES, BUTT CONNECTION
40
DOUBLE FITTING BETWEEN THE LINES, BUTT CONNECTION
40
DOUBLE FITTING BETWEEN THE LINES, BUTT CONNECTION
42
CLAMP , Replaced By: N916016011202
42
CLAMP AT BRACKET
42
CLAMP AT BRACKET
42
CLAMP AT BRACKET
46
BRACKET LINE MOUNTING
46
BRACKET , Replaced By: A3184280240
60
BRAKE LINE COUPLING , Replaced By: A0004297530
60
BRAKE LINE COUPLING AT REAR CROSS MENBER
60
BRAKE LINE COUPLING AT REAR CROSS MENBER
60
BRAKE LINE COUPLING AT REAR CROSS MENBER
61
VALVE DISCTO 000 429 48 30
62
VALVE DISCTO 000 429 48 30
63
SPRINGTO 000 429 16 30
64
VALVE PARTTO 000 429 16 30
65
GASKETTO 000 429 16 30
66
NUTTO 000 429 16 30
67
VALVE TAPPETTO 000 429 16 30
68
SNAP RINGTO 000 429 16 30
69
COVERTO 000 429 16 30,BOSCH
70
SPRINGTO 000 429 16 30
71
SPRING CAPSULETO 000 429 16 30
75
DOUBLE FITTING BETWEEN THE LINES, BUTT CONNECTION
76
SEAL RING LINE CONNECTION
77
BRACKET
999
PIN
999
SEAL RINGTO 000 429 75 30
999
LINE , Replaced By: A0005516256
999
VALVE CONEBOSCH
999
COVERTO 000 429 48 30
999
COVERWABCO
999
REPAIR KITKNORR
999
SEAL RINGTO 000 429 16 30
999
REPAIR KITWABCO
999
SEAL RINGTO 000 429 16 30
999
BRACKET
999
PIN PULL ROD TO BRAKE LEVER,REAR AXLE
999
PIN INTERMEDIATE LEVER
999
RESERVOIR COMPRESSED AIR 20 L
999
SCREW BRACKET TO CAB CROSS MEMBER
999
COTTER PIN DRAG LINK TO STEERING ARM AND PITMAN ARM
999
SCREW , Replaced By: N304017008021
999
SCREW , Replaced By: N304017008034
999
SCREW BRACKET TO SIDE MEMBER,5 105538
999
NUT BALL PIVOT TO LEVER
999
NUT STRAP TO SUPPORT,5 149419
999
NUT STRAP TO SUPPORT
999
SCREW , Replaced By: N308676012012
999
GLAND LINE CONNECTION
999
BALL STUD. BALL PIVOT PULL ROD TO BRACKET
999
SECURING CLIP. CIRCLIP
999
T-FITTING , Replaced By: A0009902370
999
SCREW PIPE CLAMP
999
SCREW BRACKET TO CROSS CONNECTION STRUT
999
SCREW. HEXAGON HEAD BOLT VALVE TO BRACKET
999
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
999
LOCK WASHER
999
LOCK WASHER FITTING TO BRACKET
