Поз.
Артикул
Описание

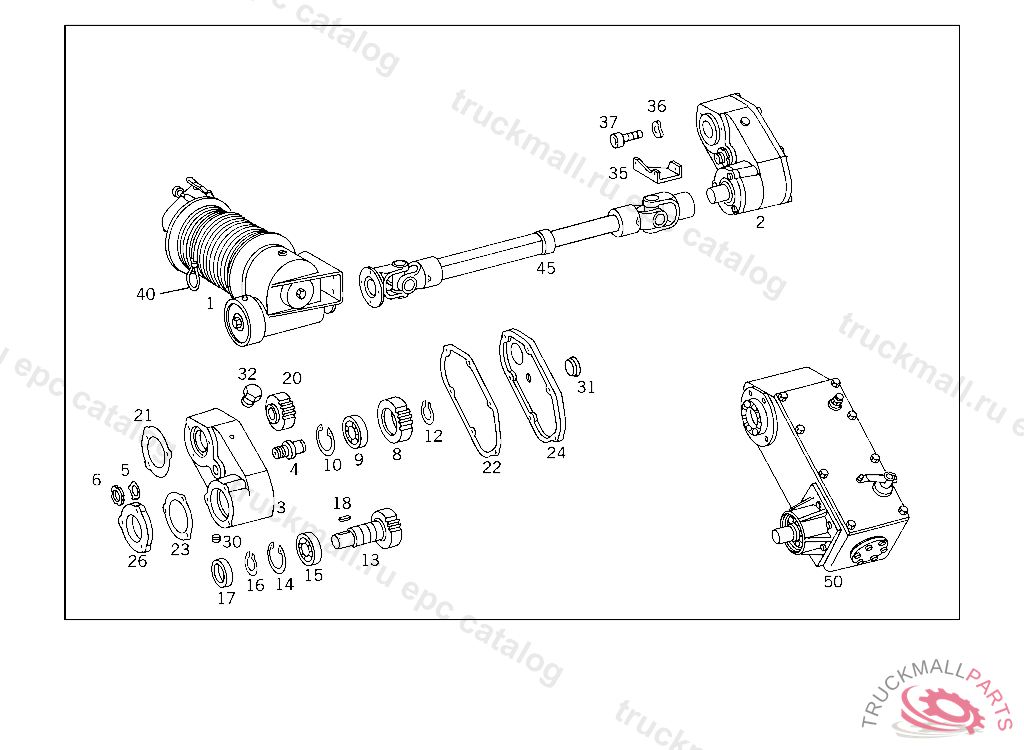

1
CABLE WINCH
1
CABLE WINCH
2
P.T.O. CABLE WINCH
3
CASE P.T.O.
4
PIN P.T.O.
5
LOCK P.T.O.
6
NUT P.T.O.
8
GEAR P.T.O.
9
ANG. CONTACT BALL BEARING P.T.O.
10
LOCK RING
10
LOCK STEERING KNUCKLE,TOP AND BOTTOM
12
LOCK RING P.T.O.
13
SHAFT P.T.O.
14
RETAINING RING. LOCK RING BEARING TO DRIVE SHAFT
15
GROOVED BALL BEARING OUTPUT SHAFT
16
LOCK RING SHACKLE TO CONSOLE TO 393 326 00 63,965965
17
SEAL RING P.T.O.
18
KEY P.T.O.
20
GEAR
21
GASKET BRACKET TO TRANSMISSION CASE
22
GASKET COVER TO P.T.O. CASE
23
GASKET COVER TO P.T.O. CASE
24
COVER TRANSMISSION CASE
26
COVER TRANSMISSION CASE
30
SCREW PLUG FUEL TANK BREATHING M 14X1.5
30
SCREW PLUG , Replaced By: N000906014000
31
SCREW PLUG
32
BREATHER TRANSMISSION CASE
35
BRACKET TRANSMISSION CASE
36
SPRING WASHER STEERING COLUMN BRACKET TO CAB
37
SCREW BRACKET TO TRANSMISSION CASE
40
WIRE CABLE CABLE WINCH
40
WIRE CABLE CABLE WINCH
45
PROPELLER SHAFT PROPELLER SHAFT
50
REVERSING GEAR
999
PROTECTIVE WRAPPER
999
SPRING WASHER , Replaced By: N000137008212
999
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
999
SCREW TRANSMISSION CASE
999
SCREW STEERING SHAFT BEARING TO CAB M 8X30,5 191030
999
THREADED PIN PROPELLER SHAFT
999
SCREW VALVE TO BRACKET
999
SCREW , Replaced By: N304017008034
999
SCREW BRACKET TO FRAME
999
NUT STRAP TO SUPPORT,5 149419
999
FITTED WASHER AS REQUIRED 1.1 MM
999
FITTED WASHER
999
FITTED WASHER AS REQUIRED 1.4 MM
999
FITTED WASHER AS REQUIRED 1.6 MM
999
FITTED WASHER AS REQUIRED 1,8 MM
999
FITTED WASHER
999
FITTED WASHER AS REQUIRED 1.5 MM
999
FITTED WASHER AS REQUIRED 1.3 MM
999
FITTED WASHER AS REQUIRED 1.7 MM
999
LOCK WASHER PARKING BRAKE
999
SCREW BRACKET TO CROSS CONNECTION STRUT
999
NUT
999
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
999
LOCK WASHER FITTING TO BRACKET
