Mercedes
CAR
450 SEL
116.033 STANDARD

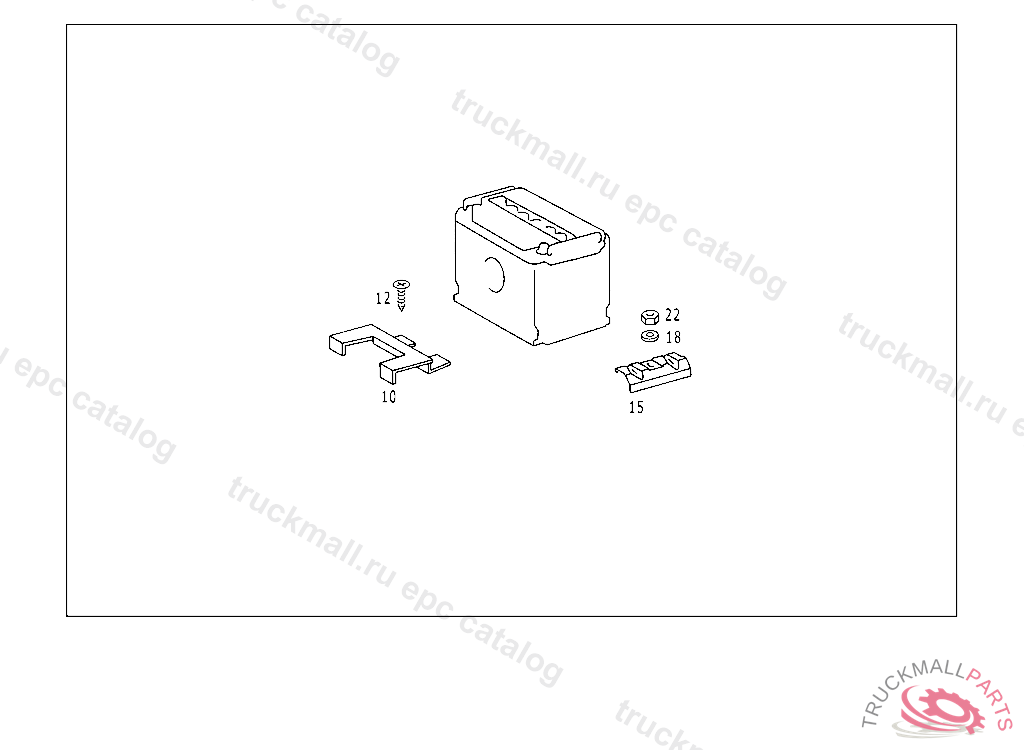

62 FRONT PANEL
001 INTERMEDIATE PIECE USED FOR 88 AH BATTERY (FOR TYPE 124 ,129 ,201 SEE STANDARD V

Mercedes N007976004215 - Саморез

450 SEL 116.033 STANDARD

62 FRONT PANEL - 001 INTERMEDIATE PIECE USED FOR 88 AH BATTERY (FOR TYPE 124 ,129 ,201 SEE STANDARD V

Поз.
Артикул
Описание
10
A1156260544
INTERMEDIATE PIECE BATTERY FRAME
12
N007976004215
SHEET METAL SCREW
15
A1236260242
RAIL BATTERY
18
N000125006421
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
22
N000934006007
NUT BALL PIVOT TO LEVER
