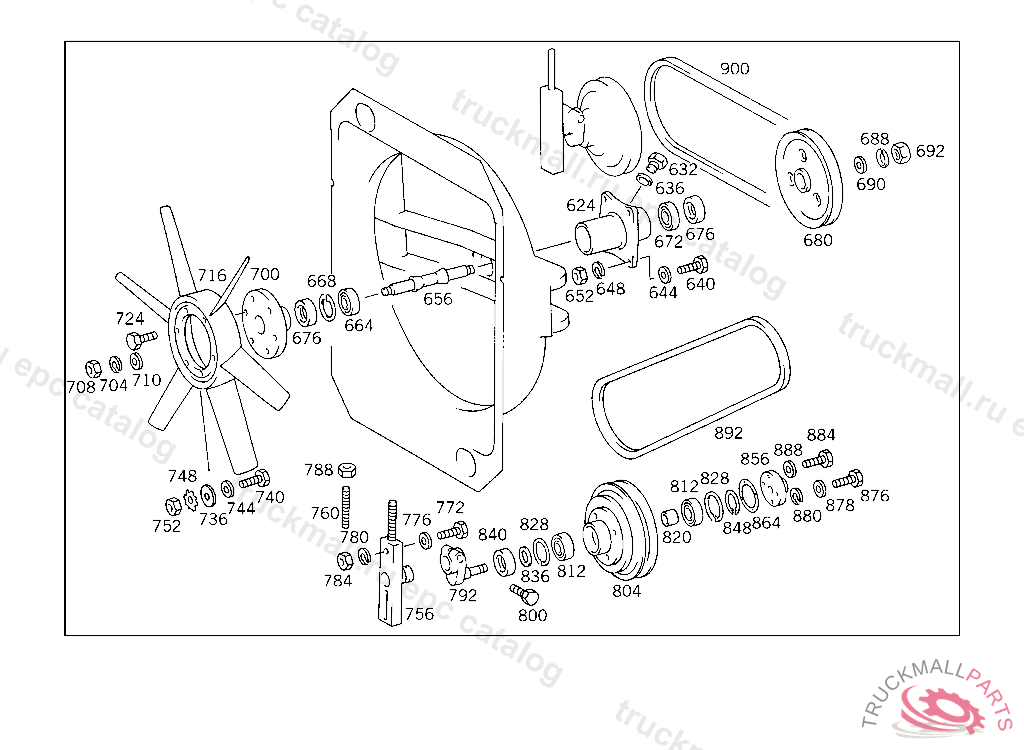

Поз.
Артикул
Описание
624
BEARING BODY FAN DRIVE
624
BEARING BODY FAN DRIVE
632
SCREW PLUG 4/2-WAY VALVE
636
SEAL RING LINE CONNECTION
640
SCREW BEARING BODY TO SUPPORT
644
WASHER , Replaced By: N000125008443
648
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
652
NUT , Replaced By: N304032008006
656
FAN SHAFT232 MM,TO 373 205 71 05
656
FAN SHAFT
664
ANG. CONTACT BALL BEARING
668
LOCK RING52X2 MM
668
LOCK RING
672
GROOVED BALL BEARING
676
SEAL RING CASE COVER
680
PULLEY ,212368
690
WASHER BRACKET TO FRAME
690
WASHER , Replaced By: N000125017016
692
NUT CONSOLE TO SUPPORT
692
NUT , Replaced By: N910113016001
692
NUT WEAR INDICATOR
700
HUB FAN DRIVE
708
NUT CONSOLE TO SUPPORT
708
NUT , Replaced By: N910113016001
708
NUT WEAR INDICATOR
710
WASHER BRACKET TO FRAME
710
WASHER , Replaced By: N000125017016
716
FAN
724
SCREW , Replaced By: A0069909301
736
WASHER2.5 MM
736
WASHER1.5 MM
736
WASHER3.2 MM
740
SCREW , Replaced By: A0009847929
740
SCREW BALANCING PLATES TO FAN AND TO PULLEY 6X15
740
CYLINDRICAL HEAD SCREW. SCREW BALANCING PLATES TO FAN AND TO PULLEY 6X20 MM
744
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
748
TOOTHED WASHER BALANCING PLATES TO FAN AND TO PULLEY
752
NUT SPRING-LOADED PUSH ROD
752
NUT BALL PIVOT TO LEVER
756
SUPPORT CLAMPING LEVER
760
STUD
772
SCREW TIGHTENER PULLEY BRACKET TO CONSOLE
776
WASHER RADIATOR TO RUBBER MOUNTING
776
WASHER , Replaced By: N000125010532
780
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
784
NUT BATTERY CABLE
784
NUT BRACKET TO SUPPORT AND TO END PIECE
788
NUT STRAP TO SUPPORT
792
LEVER
800
SCREW VIBRATION ABSORBER TO BRACKET M 12X1.5X85
804
TIGHTENER PULLEY
812
GROOVED BALL BEARING
820
SPACER TUBE
828
LOCK RING
836
SPACER WASHER0.50 MM
836
SPACER WASHER BELT TIGHTENER 0.50 MM
836
SPACER WASHER BELT TIGHTENER 0.20 MM
836
SPACER WASHER AS REQUIRED 0.20 MM
840
RADIAL SEAL RING
848
LOCK RING ,212368
856
EXPANSION PLUG
864
GASKET COVER TO TIGHTENER PULLEY,212368
876
SCREW COVER PLATE TO COVER PLATE M 6 X 10
876
SCREW FAN SHROUD TO RADIATOR
880
LOCK WASHER CLUTCH AND BRAKE PEDAL LOCKS TO BEARING BRACKETS
884
SCREW PLUG 4/2-WAY VALVE
888
SEAL RING LINE CONNECTION
892
V-BELT SET2 PIECES,212369
892
V-BELT BETWEEN VIBRATION DAMPER AND TIGHTENER PULLEY,212368
892
NARROW V-BELT , Replaced By: A0039975892
900
V-BELT12.5X1100 MM
900
V-BELT ALTERNATOR 12.5X975
900
V-BELT , Replaced By: A0049973692
999
SPACER WASHER BELT TIGHTENER 1.00 MM
999
SCREW
