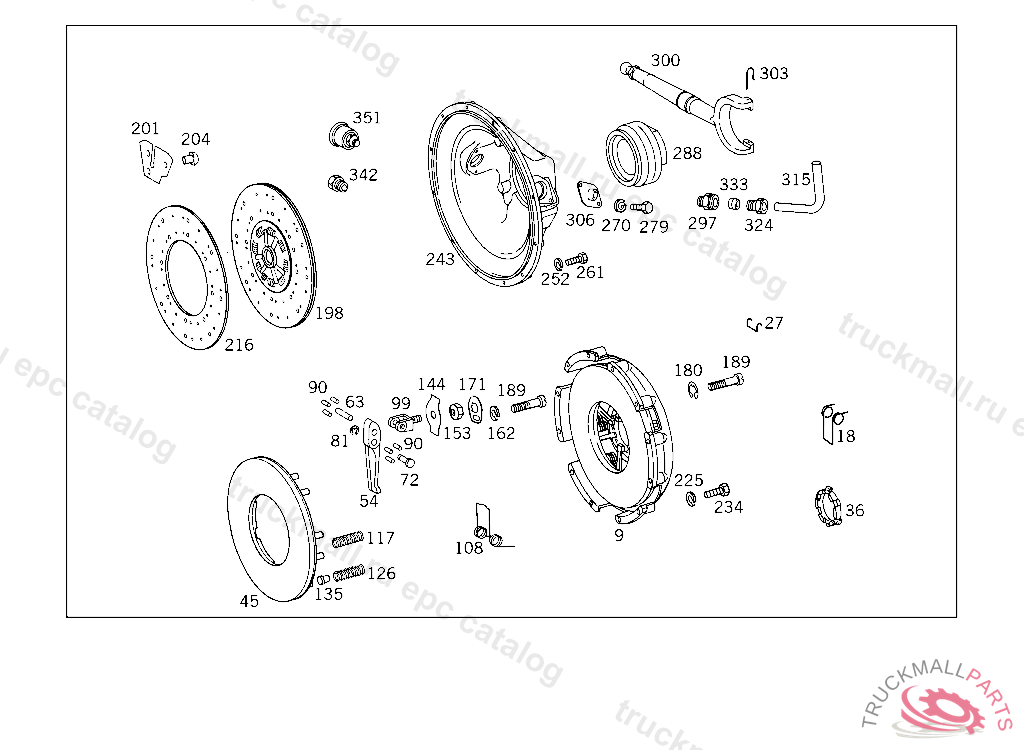

Поз.
Артикул
Описание
9
CLUTCH PRESSURE PLATE
9
CLUTCH PRESSURE PLATE
18
SPRING SUSPENDED IN CLUTCH PRESSURE PLATE HOUSING
27
CLAMP RELEASE FLANGE TO RELEASE LEVER
27
CLAMP , Replaced By: A0002523227
36
FLANGE
45
PRESSURE PLATE
54
RELEASE LEVER CLUTCH ACTUATION
63
SPINDLE FOR BEDDING THE LEVERS IN CLUTCH PRESSURE PLATE
72
SPINDLE FOR BEDDING THE LEVERS IN BRACKETS
81
LOCK PLATE RELEASE LEVER TO SHAFT
90
ROLLER FOR BEDDING THE LEVERS IN BRACKETS
99
BRACKET RELEASE LEVER
108
SPRING , Replaced By: A0002523227
117
PRESSURE SPRING SPRING STEEL WIRE DIA., 3.75 MM
126
PRESSURE SPRING SPRING STEEL WIRE DIA., 3.5 MM
135
SLEEVE CLUTCH PRESSURE PLATE
144
LEAF SPRING THIGH SPRING SUSPENDED IN CLUTCH PRESSURE PLATE HOUSING
153
NUT FOR BRACKETS
153
NUT , Replaced By: A0002523072
162
LOCK WASHER , Replaced By: N912004005103
171
LOCK FOR BRACKETS
180
LOCK PLATE RELEASE LEVER TO SHAFT
189
SCREW RELEASE LEVER,BRACKET
189
SCREW
198
CLUTCH DISC
201
LEAF SPRING
201
LEAF SPRING , REBORE HOLE IN SUPPORTING PLATE FROM 5.2MM TO 6.2MM, Replaced By: A0002524419, +002A0002523975
204
RIVET LEAF SPRING TO CLUTCH DISC
204
RIVET LEAF SPRING TO CLUTCH DISC
204
RIVET LEAF SPRING TO CLUTCH DISC 5X6 MM
216
CLUTCH LINING
216
CLUTCH LINING , Replaced By: A0012522910
225
LOCK WASHER , Replaced By: N912004010102
234
SCREW BRACKET TO BELL HOUSING
243
BELL HOUSING
252
LOCK WASHER , Replaced By: N912004010102
261
SCREW BRACKET TO FRAME SIDE MEMBER
270
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
270
LOCK WASHER EXTENSIBLE BRAKE VALVE TO CAB
279
SCREWM 6X12
288
RELEASE BEARING
297
SCREW-IN FITTING RELEASE COLLAR LUBRICATION
300
RELEASE LEVER
303
SPRING
306
FLANGE
315
HOSE RELEASE COLLAR LUBRICATION 220 MM
324
UNION SCREW RELEASE COLLAR LUBRICATION
333
DOUBLE TAPER RING RELEASE COLLAR LUBRICATION
342
SCREW-IN FITTING RELEASE COLLAR LUBRICATION
351
GREASE CUP ,5 190179, Replaced By: A6209880135, +001A6209970088
999
CLUTCH PRESSURE PLATE , FOR USE WITH OM 327 ENGINE,UNTIL SERIES PRODUCTION STOP,FOR USE WITH OM 360 ENGINE FROM IDENT NO. 797910 PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
999
HOUSING LOWER PART
999
RELEASE BEARING
