Поз.
Артикул
Описание

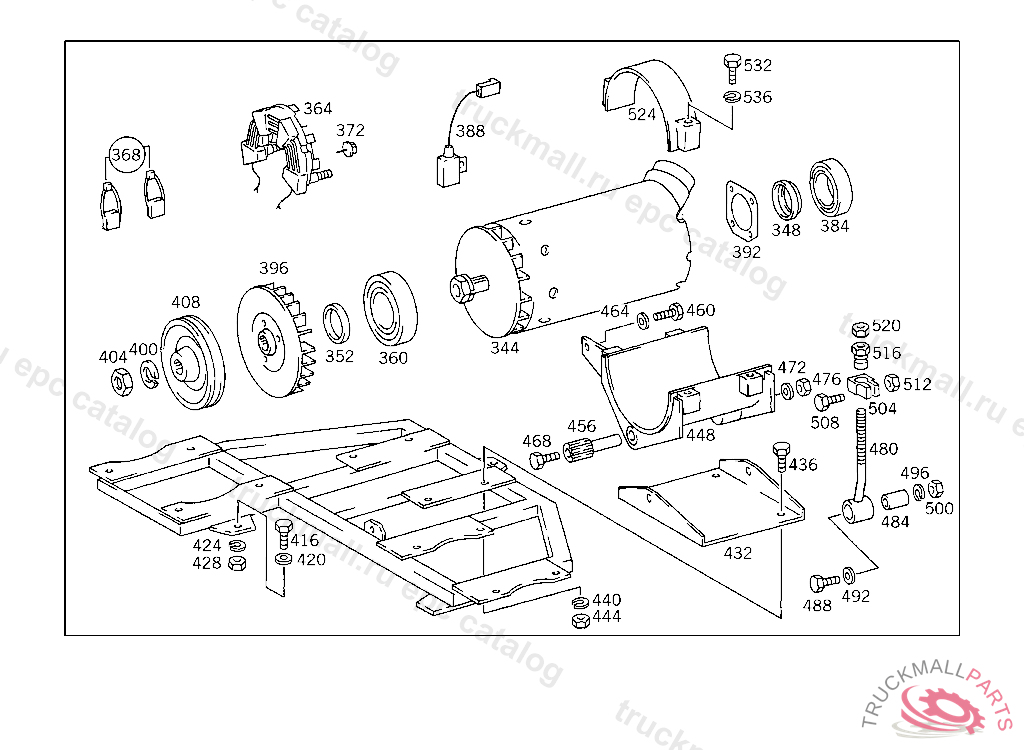

344
348
SEAL RING ,061991
352
SEAL RING , NOT USED
360
GROOVED BALL BEARING LEFT ALTERNATOR MOUNTING,061991
364
RECTIFIERTO 005 154 01 02
368
CARBON BRUSH SET ,600808
368
CARBON BRUSH SET , Replaced By: A0001547214
372
DIODE EXCITER TO 004 154 79 02
372
DIODETO 005 154 01 02
372
DIODETO 005 154 01 02
384
CYLINDR. ROLLER BEARING ,061991
388
CONDENSER ,054430
392
GASKETTO 004 154 79 02
396
FAN ,600808
400
SPRING WASHER
404
408
416
SCREW CONSOLE TO SIDE MEMBER
420
WASHER
424
LOCK WASHER FITTING TO BRACKET
428
NUT STRAP TO SUPPORT
432
436
HEXAGON HEAD BOLT RUBBER MOUNTING TO SIDE MEMBER AND TO SUPPORT M10X20
436
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
440
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
444
NUT BRACKET TO SUPPORT AND TO END PIECE
444
NUT BATTERY CABLE
448
456
BUSHING
460
SCREW ,A 006845
464
WASHER HORN TO ENGINE CROSS MEMBER
468
472
WASHER , Replaced By: A1403521376
472
WASHER , Replaced By: A3149900940
476
NUT BRACKET TO FRAME
480
484
BUSHING
488
SCREW MOUNTING AND RAIL TO LEAF SPRING
492
SPACER WASHER ENGINE REAR SUPPORT TO RUBBER MOUNTING
492
WASHER CLAMPING BOLT TO CYLINDER CRANKCASE
496
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
500
NUT BRACKET TO SUPPORT AND TO END PIECE
500
NUT BATTERY CABLE
504
CLAMPING PIECE , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A3141550228
508
SCREW MOUNTING PLATE,SHOCK ABSORBER CROSS MEMBER & SHIM TO FRAME SIDE MEMBER M 12X45
512
NUT STRAP TO SUPPORT
516
NUT TIGHTENER PULLEY TO LEVER
520
NUT , 058 USED WITH HYDRAULIC BRAKE, UP TO CHASSIS 589554
520
NUT
524
524
CLAMPING BRACKET ,9500213-600807
532
SCREW , Replaced By: N308676012018
536
LOCK WASHER FITTING TO BRACKET
999
VALVE
999
VALVE
999
GASKET
999
999
999
BALL BEARING DISC SUPPORT
999
999
999
999
999
CLAMPING PIECE TIGHTENER PULLEY TO LEVER
999
NUT ALTERNATOR
999
CYLINDRICAL PIN ,A 057455, 341.023,027,032,034,036,038,041,042,043,044,045 FROM IDENT NO. A 057456 SEE SPARE PARTS LIST 713.0, MF 859A 077314, 341.116 FROM IDENT NO. A 077315 SEE SPARE PARTS LIST 713.0, MF 859
