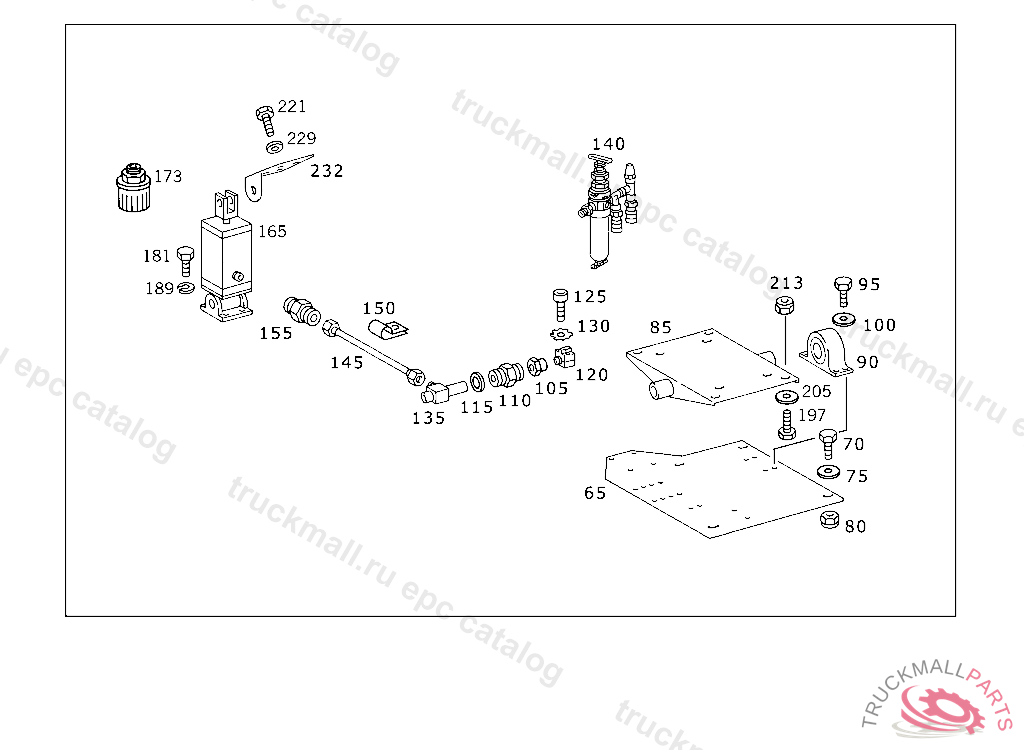

Поз.
Артикул
Описание
65
SUPPORTING PLATE REFRIGERANT COMPRESSOR, FIXTURE REFRIGERANT COMPRESSOR
70
SCREW RETURN AND SUCTION LINES TO FRAME, FRONT M 12X40
70
SCREW BRACKET TO SIDE MEMBER M 12X40
75
WASHER LEAF SPRING TO STRUT
80
NUT BRACKET TO LEFT SIDE MEMBER
80
NUT END PIECE TO EXHAUST PIPE
85
MOUNTING PLATE COMPRESSOR TO MOUNTING PLATE
90
SELF-ALGN.ROLLER BEARING
95
SCREW PARKING BRAKE VALVE TO INSTRUMENT PANEL,TB108828
95
SCREW SWITCH TO BRACKET 8X16
95
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
100
WASHER PLATE TO BASE PLATE, FIXTURE REFRIGERANT COMPRESSOR
105
FITTING , Replaced By: N003901006007, +001N007603010404
110
FITTING
115
SEAL RING
120
SHUT-OFF COCK ,KAO 525/93
125
SCREW OIL LINES TO ENGINE,001498
125
SCREW OIL PUMP HOUSING M6X35
130
TOOTHED WASHER
135
VALVE (PRESSURE VALVE), FIXTURE REFRIGERANT COMPRESSOR
140
VALVE (PRESSURE VALVE),KAO 525/93 REPAIR IMPOSSIBLE
145
HOSE , FIXTURE REFRIGERANT COMPRESSOR
145
HOSE ,KAO 525/93
150
CLAMP , Replaced By: N916016012201
150
CLAMP LINES TO BRACKET
155
FITTING
165
CYLINDER BELT TIGHTENER
173
MUFFLER CYLINDER, FIXTURE REFRIGERANT COMPRESSOR
181
SCREW STEERING SHAFT BEARING TO CAB M 8X20
181
SCREW PIPE CLAMP
189
LOCK WASHER RAIL TO BATTERY SUPPORT
197
SCREW STRAP TO CONSOLE M 10X40,20 L
205
WASHER A. WASHER BRACKET TO LEFT SIDE MEMBER
205
WASHER , Replaced By: N009021010209
205
WASHER BRACKET TO COVERING
213
NUT , Replaced By: N910113010000
221
SCREW BRACKET TO REFRIGERANT COMPRESSOR M 10X85
229
WASHER GROUND CABLE
229
WASHER RADIATOR TO RUBBER MOUNTING
232
BRACKET BRACKET TO REFRIGERANT COMPRESSOR, FIXTURE REFRIGERANT COMPRESSOR
999
COUPLING
999
CONNECTOR , HALTERUNG KLIMAKOMPRESSOR FA.KONVEKTA
999
COMPRESSOR REFRIGERANT COMPRESSOR
999
999
999
VALVE , Replaced By: A0001307720
