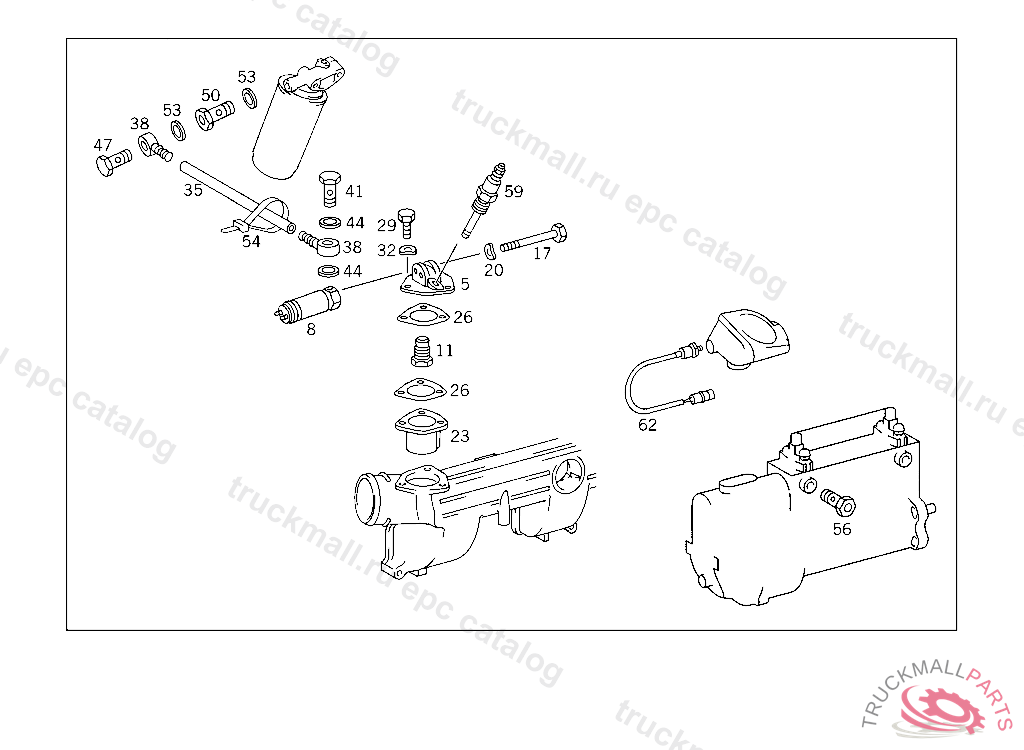

Поз.
Артикул
Описание
5
BRACKET NOZZLE HOLDER, Replaced By: A5410700840
8
VALVE (ELECTROMAGNET VALVE)
11
NOZZLE
11
SEAL ELECTROMAGNET VALVE
17
SCREW. HEXAGON HEAD BOLT BATTERY AND ENGINE CABLE HARNESSES TO BRACKET M6X35
20
SPRING WASHER CABLE TO ALTERNATOR
23
BURNER , Replaced By: A5420700086
26
SEAL TO LOCK THE BORE MEANT FOR FLAME START SYSTEM
29
SCREW STEERING SHAFT BEARING TO CAB M 8X20
32
SPRING WASHER STEERING SHAFT BEARING TO CAB
35
HOSE LEAK LINE 4X6 MM, ORDER BY THE METER
38
BANJO UNION HOSE WIDTH, / I.D., 4/16 MM,5 999999K 040105
38
BANJO UNION FROM INJECTION PUMP TO VALVE
41
HOLLOW SCREW FUEL LINES TO SOLENOID VALVE
44
SEAL RING
47
HOLLOW SCREW FUEL LINE LEADING TO FUEL PUMP
50
HOLLOW SCREW FUEL LINE LEADING TO FUEL PUMP
53
SEAL RING
56
VALVE (OVERFLOW VALVE)
59
HEATER PLUG
62
SWITCH,AUTOMATIC , Replaced By: A3825450224
62
SWITCH,AUTOMATIC ON RIGHT CYLINDER HEAD
