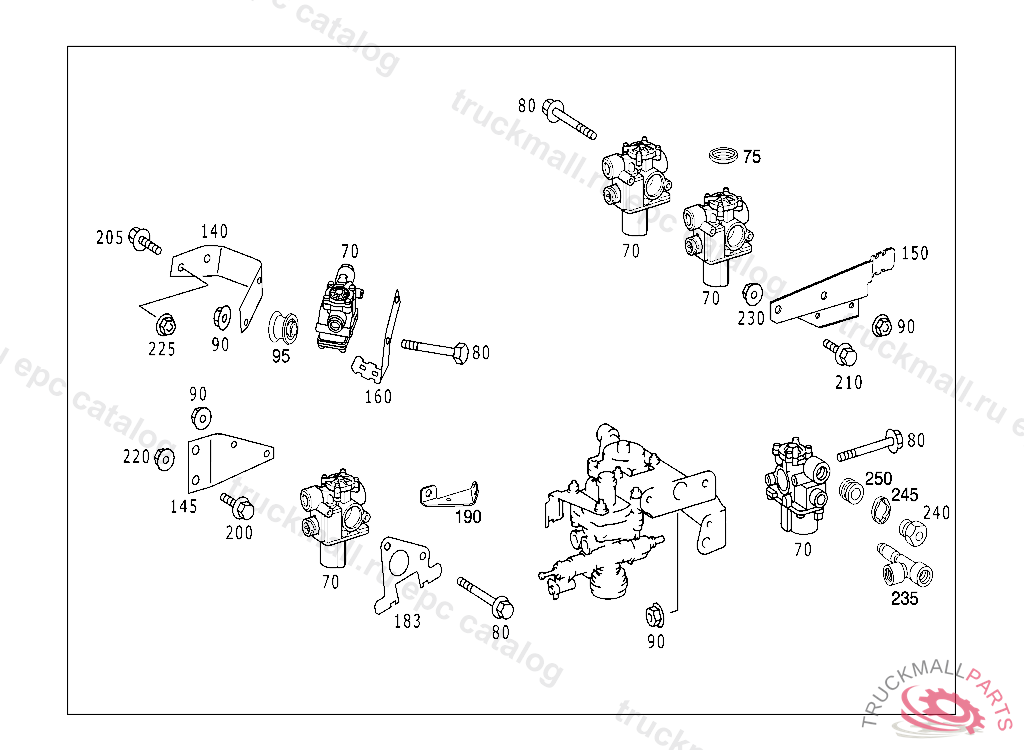

Поз.
Артикул
Описание
70
VALVE FRONT AND REAR AXLE BRAKE PRESSURE KNORR 45.01
70
VALVE PRESSURE CONTROL VALVE ABS
70
VALVE , Replaced By: A0044298844
75
DIAPHRAGMBOSCH, TO 004 429 87 44
80
SCREW , Replaced By: N910143008010
80
HEXAGON HEAD BOLT SOLENOID VALVE TO BRACKET M8X140
90
NUT HORN TO BRACKET M8
95
WASHER LINE MOUNTING 18 MM / 11.5 MM
140
140
BRACKET FRONT RIGHT
140
140
BRACKET FRONT LEFT
160
160
BRACKET COMPRESSED AIR LINE GUIDE ABS VALVE FRONT AXLE, RIGHT
190
190
200
SCREW SHIFT LEVER TO BRACKET M8X30
205
HEXAGON HEAD BOLT CONSOLE TO REAR CROSS MEMBER AND TO FRAME SIDE MEMBERS M 10X40
205
HEXAGON HEAD BOLT. SCREW BRACKET TO AIR INTAKE PIPE M 10X45
205
HEXAGON HEAD BOLT RESONATOR TO TRANSMISSION CASE,K 138633
220
NUT HORN TO BRACKET M8
225
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
240
UNION SCREW COMPRESSED-AIR-LINE PLUG-CONNECTION M 22, VOSS 232
240
SCREW. UNION SCREW LINE CONNECTION
245
LOCK COMPRESSED-AIR-LINE PLUG-CONNECTION
250
SEAL RING COMPRESSED-AIR-LINE PLUG-CONNECTION
