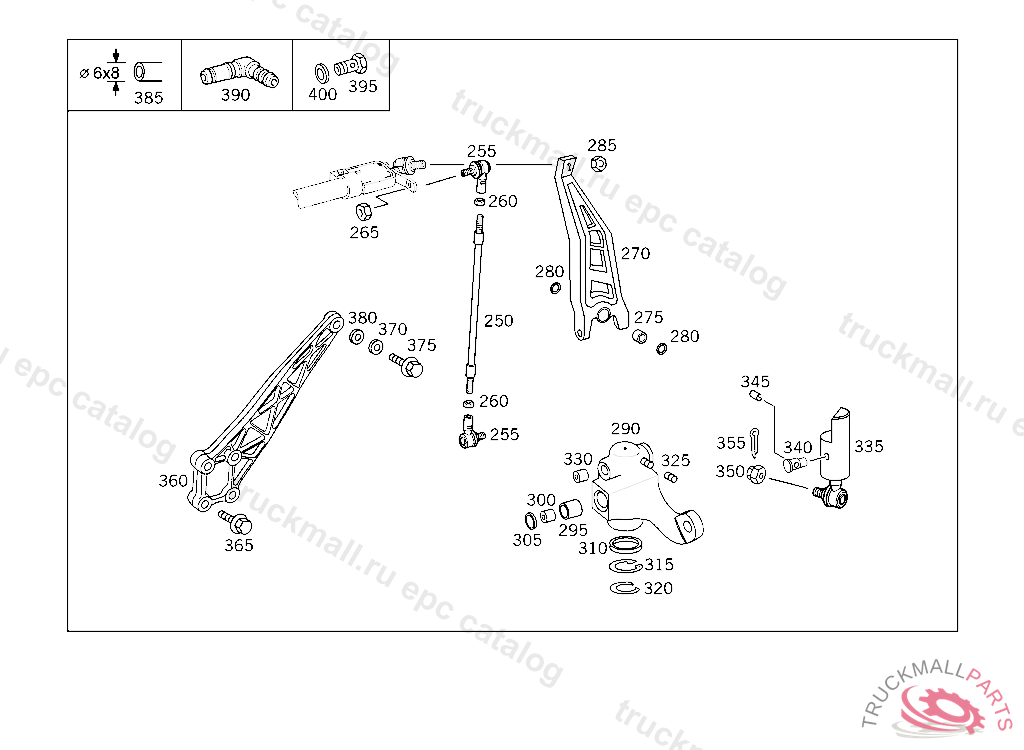

Поз.
Артикул
Описание
250
PULL ROD
255
JOINT
255
JOINT
260
NUT L.H. THREAD
260
NUT BRACKET TO FRAME
265
NUT STRAP TO BRACKET
270
LEVER AT SHIFTING ROD
275
BUSHING PAWL TO ROD END,5 443047
280
ROUND CORD RING. SEAL RING ROD END
285
NUT STRAP TO BRACKET
290
LEVER AT SHIFTING ROD
290
LEVER AT SHIFTING ROD, NOT USED
295
THREADED PIN
295
BUSHING
295
BUSHING PAWL TO ROD END,5 443048
300
NEEDLE BEARING
305
SEAL RING , Replaced By: A0249977747
310
FITTED WASHER
315
LOCK RING
320
SNAP RING
325
THREADED PIN
330
BUSHING
335
LEVER
335
LEVER , NOT USED
340
PIN LEVER TO LEVER
340
PIN LEVER TO LEVER, NOT USED
345
CLAMPING SLEEVE
350
NUT REAR SHIFTING ROD TO SHAFT M 10X1
355
COTTER PIN CONNECTOR TO BRAKE PRESSURE REGULATOR LEVER
360
BRACKET REVERSING LEVER
365
HEXAGON HEAD BOLT. SCREW BRACKET TO TIMING CASE M 16X60
370
WASHER LEVER TO BRACKET 30X10.5X4 MM
375
HEXAGON HEAD BOLT. SCREW BRACKET TO SIDE MEMBER M10X25
380
WASHER SHIFT LEVER TO FRONT SHIFTING TUBE
385
PLASTIC PIPE AERATION, ORDER BY THE METER
390
ELBOW FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 22, 6 MM, VOSS 232
390
ELBOW FITTING HOSE WIDTH, 9 MM,TO M22
395
HOLLOW SCREW HEATING CONNECTION
400
SEAL RING LINE CONNECTION
