Mercedes A0009912422 - НАКОНЕЧНИК ТЯГИ

OM 366 LA 376.977

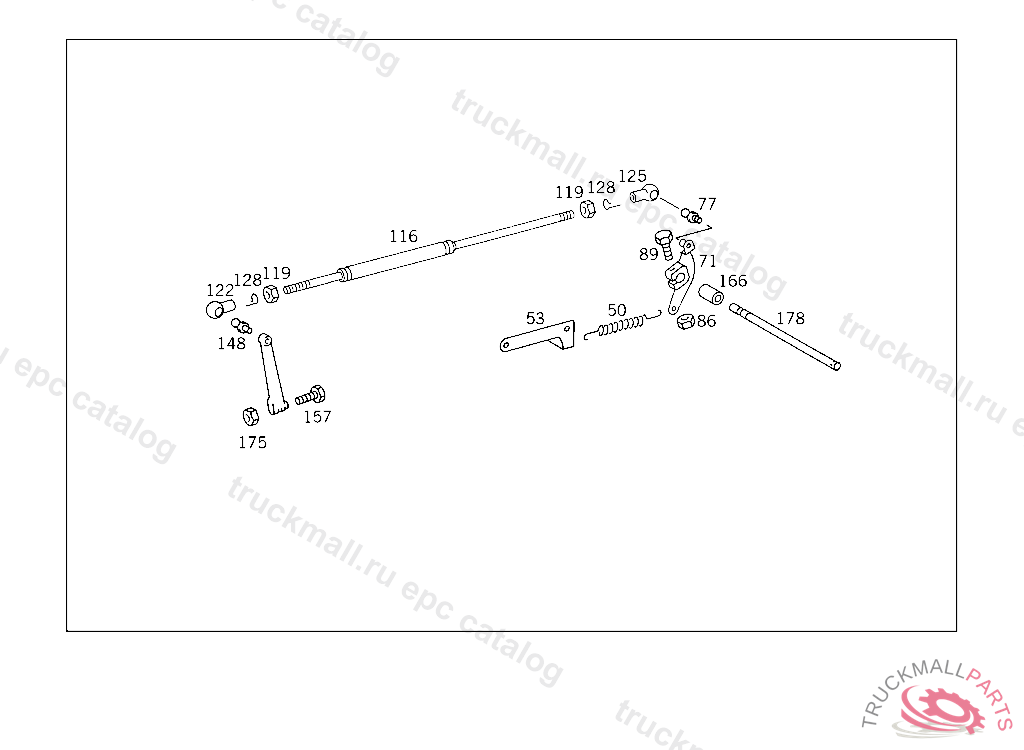

07 INJECTION PUMP - 135 CONTROL IL. 2

Поз.
Артикул
Описание
50
A3199930510
SPRING ACCELERATOR CONTROL LINKAGE RELEASE SPRING
53
A3660720740
BRACKET
71
A3760708121
LEVER CONTROL
77
N071803010209
BALL PIVOT , Replaced By: A3129910120
77
A3449917515
BALL PIVOT
86
N000934006006
NUT
89
N000933006061
SCREW LEVER TO THROTTLE VALVE SHAFT
116
A3763001915
ROD SPRING-LOADED
119
N000934006006
NUT
122
N071805010202
BALL SOCKET AT CONTROL LEVER
125
A0009912422
BALL SOCKET PULL ROD TO LEVER
128
N071805010402
SECURING CLIP. CIRCLIP ACCELERATOR CONTROL
166
A3210720053
SPACER TUBE VIBRATION ABSORBER TO BRACKET 39 MM, TO BE ADAPTED DURING ASSEMBLY
166
A3210720253
SPACER TUBE , Replaced By: A3210720053
178
A3760722010
SHAFT (CONTROL SHAFT)
