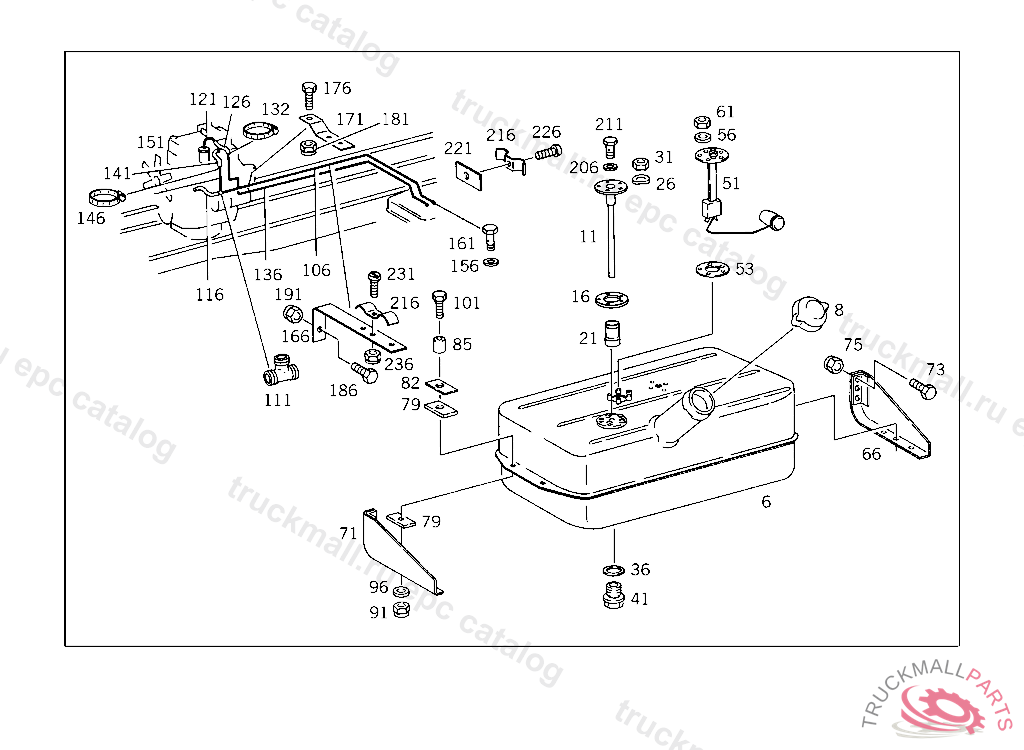

Поз.
Артикул
Описание
6
8
8
FILLER CAP
11
11
16
GASKET FUEL GAUGE SENDER UNIT TO FUEL TANK
16
GASKET SENDER UNIT AND COVER TO FUEL TANK
21
STRAINER
26
SPRING WASHER
31
HEX. NUT M 5 DIN 934-5 S. NUT PLUG SOCKET TO FRAME
36
SEAL RING , TYPE 1113B UP TO CHASSIS 604683,TYP LP 1517 UP TO CHASSIS 600412,TYPE LP 1317 UP TO CHASSIS 601123,TYPE LP 911 B UP TO CHASSIS601688 CONTINUED,SEE FOOTNOTE 003
41
SCREW PLUG SUCTION LINE TO FUEL TANK
41
51
SENDER UNIT FUEL TANK
51
53
GASKET SENDER UNIT AND COVER TO FUEL TANK
53
GASKET FUEL GAUGE SENDER UNIT TO FUEL TANK
56
SEAL RING SENDER UNIT AND COVER TO FUEL TANK
61
HEX. NUT M 5 DIN 934-5 S. NUT PLUG SOCKET TO FRAME
66
66
71
71
73
SCREW GROUND STRAP TO CAB CROSS MEMBER M 10X25
75
NUT , Replaced By: N910113010000
79
82
BASE DELIVERY AND SUCTION LINES TO RADIATOR CONSOLE
85
91
NUT , Replaced By: N913004008001
96
WASHER BRACKET TO CAB REAR PANEL
101
SCREW BRACKET TO FIRE WALL
106
106
111
T-FITTING , Replaced By: A0009902670
111
116
116
HOSE
121
121
126
HOSE , Replaced By: A3074702766, +001A3054760126, +001N915017010201, +002N916017011100
126
132
CLAMP ,747891
132
CLAMP LINE CONNECTION
136
136
136
141
HOSE LEAK LINE, ORDER BY THE METER
146
CLAMP CHECK VALVE,K 169122
151
151
156
SEAL RING CHECK VALVE,CONNECTION "1",4 704213
161
HOLLOW SCREW OIL LINE TO CONVERTER HOUSING
166
BRACKET COMPRESSED AIR LINE MOUNTING,A 069681
171
BRACKET COMPRESSED AIR LINE MOUNTING
176
SCREW GROUND STRAP TO CAB CROSS MEMBER M 10X25
181
NUT , Replaced By: N910113010000
186
SCREWM 8X20
191
NUT , Replaced By: N913004008001
206
SEAL RING CHECK VALVE,CONNECTION "1",4 704213
211
HOLLOW SCREW OIL LINE TO CONVERTER HOUSING
216
CLAMP
216
CLAMP , Replaced By: A3379950332
221
BRACKET FUEL LINE
221
BRACKET FUEL LINES
226
TAPPING SCREW
231
SCREW PROTECTION PLATE TO BRACKET
236
NUT , Replaced By: N913004006001
999
999
999
999
999
999
999
999
999
999
999
999
999
LOCK WASHER , Replaced By: N912004010102
999
SPRING WASHER CABLE TO CABLE CONNECTOR
999
SCREW OIL TANK TO BRACKET
