Поз.
Артикул
Описание

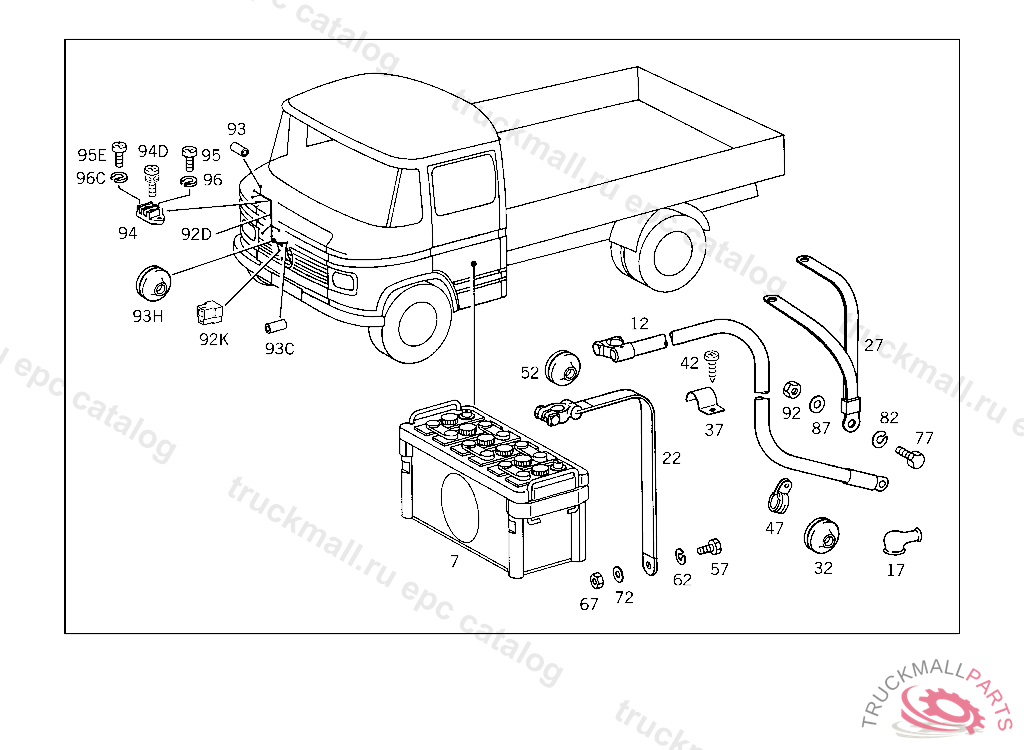

7
BATTERY LESS ACID 12 V 135 A
7
BATTERY12V 135AH
12
POSITIVE CABLE FROM BATTERY TO STARTING MOTOR
12
POSITIVE CABLE , Replaced By: A3785407030
17
GUMMISCHUTZKAPPE. BOOT
22
NEG. CABLE FROM BATTERY TO CAB REAR CROSS MEMBER
27
GROUND STRAP
27
GROUND STRAP , Replaced By: A3135400041
32
GROMMET 34 MM
37
CLAMP , Replaced By: A3049950220
42
SHEET METAL SCREW WIPER PULSE SENDER UNIT
47
CLAMP ,K 147121, Replaced By: N000000000319
52
GROMMET
57
SCREW OIL TANK TO BRACKET
62
LOCK WASHER REINFORCEMENT ANGLE TO SIDE MEMBER, 005,006,007,011,012,021,031,106,108,FROM CHASSIS A 012137,014,016,018 FROM CHASSIS A 007627
67
NUT , 005,006,007,011,012,021,031,106,108,FROM CHASSIS A 012137,014,016,018 FROM CHASSIS A 007627
72
WASHER RADIATOR STRUT TO SUPPORT AND TO CAB
77
SCREW ENGINE CROSS MEMBER TO SIDE MEMBERS M 10X25
82
LOCK WASHER REINFORCEMENT ANGLE TO SIDE MEMBER, 005,006,007,011,012,021,031,106,108,FROM CHASSIS A 012137,014,016,018 FROM CHASSIS A 007627
87
WASHER RADIATOR STRUT TO SUPPORT AND TO CAB
92
NUT , 005,006,007,011,012,021,031,106,108,FROM CHASSIS A 012137,014,016,018 FROM CHASSIS A 007627
93
GROMMET3.0 MM
94
CABLE CONNECTOR
95
SCREW , Replaced By: N007985006580
96
LOCK WASHER EXTENSIBLE BRAKE VALVE TO CAB
999
BATTERY LESS ACID 135 AH
999
BOOT PIN BUSHING
999
NUT SWITCH
999
CLAMP , Replaced By: N916016008200
999
GROMMET5.0 MM
999
PIN BUSHING HOUSING 3-POLE,4 483482
999
RUBBER BUFFER
999
PLUG
999
CABLE HARNESS , Replaced By: A3785400005
999
CABLE HARNESS , Replaced By: A3785400005
999
CABLE HARNESS , Replaced By: A3785400005
999
GROMMET
999
GROMMETD6/32
999
GROMMET REGULATOR FEED CABLE TO VENTILATION DUCT, 017121521009
999
GROMMET HEADLAMP
999
GROMMET , Replaced By: A3359970081
999
POTENTIOMETER INSTRUMENT LIGHTING "SCRAM", WITH STEERING COLUMN MOUNTED SWITCH,FROM CHASSIS A 061072 TO BE ADAPTED DURING ASSEMBLY
999
BRACKET LEFT
999
BRACKET RIGHT
999
ELECTRIC CABLE FROM ALTERNATOR TO REGULATOR AND TO CABLE CONNECTOR,A 002297
999
SCREW STEERING COLUMN MOUNTED SWITCH TO STEERING COLUMN BRACKET M4X10
999
SCREW , Replaced By: N007985004107
999
LOCK WASHER T-FITTING TO BRACKET
999
COMBINATION BOLT , Replaced By: N007981004244, +001N000125004311
