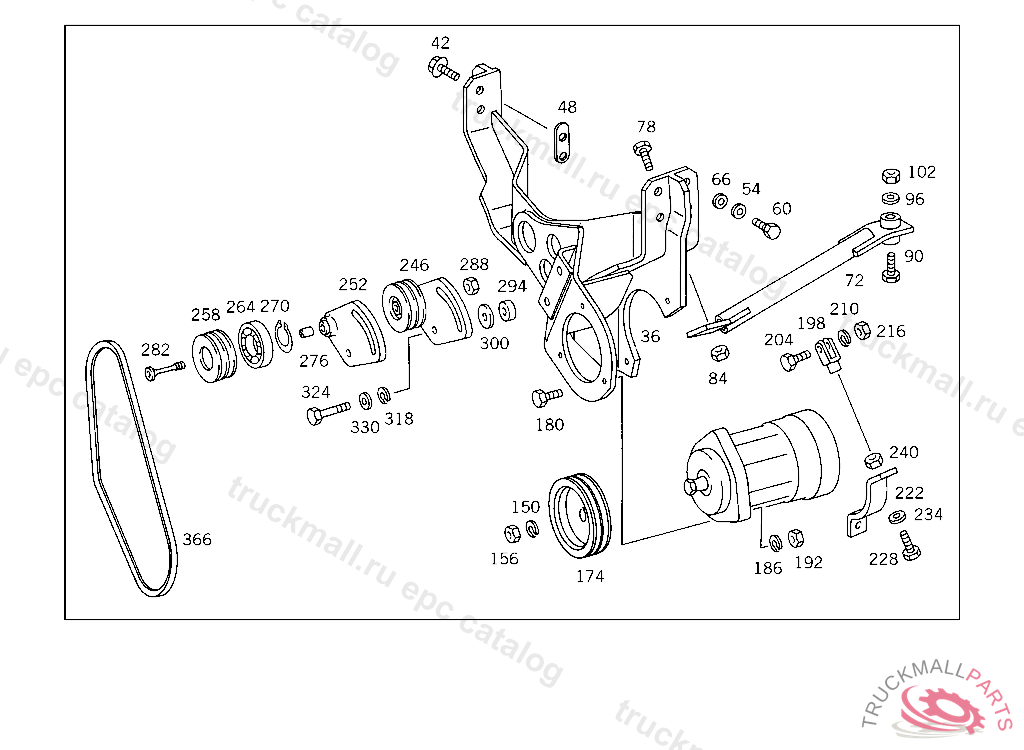

Поз.
Артикул
Описание
36
CONSOLE HYDRAULIC PUMP
42
SCREW HYDRAULIC PUMP CONSOLE TO ENGINE SUPPORTING ARM,RIGHT
48
SHIM SUPPORT TO FRAME 1.50 MM
48
SHIM SUPPORT TO FRAME 0.40 MM
54
WASHER
60
SCREW HYDRAULIC PUMP CONSOLE TO ENGINE SUPPORTING ARM,LEFT
66
WASHER HUB CAP TO BRACKET
72
BRACKET HYDRAULIC PUMP CONSOLE
78
HEX. HEAD SCREW. SCREW ELECTRIC CABLE TO SIDE MEMBER, 032,033,040,041,132,133,140,141 FROM CAB 1606715
84
NUT , Replaced By: N910113010000
90
SCREW BEARING BODY TO CROSS MEMBER
96
WASHER
102
NUT BRACKET TO BATTERY CASE
150
LOCK WASHER BRACKET TO SIDE MEMBER,5 703114
156
NUT SPARE WHEEL CARRIER
174
PULLEY HYDRAULIC PUMP
180
HEX. HEAD SCREW. SCREW EXHAUST PIPE TO SUPPORT M 8X40
186
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
192
NUT , Replaced By: N304032008006
198
YOKE HYDRAULIC PUMP CONSOLE
204
SCREW RADIATOR TO BUFFER
210
LOCK WASHER , Replaced By: N912004010102
216
NUT BRACKET TO RETARDER
222
BRACKET HYDRAULIC PUMP CONSOLE
228
SCREW RADIATOR TO BUFFER
234
WASHER , Replaced By: N000125010532
240
NUT BRACKET TO RETARDER
246
PULLEY BELT TENSION READJUSTMENT
252
BRACKET TIGHTENER PULLEY
258
PULLEY TIGHTENER PULLEY
264
BALL BEARING PULLEY
270
LOCK RING SHIFT LEVER BEARING
276
SPACER TUBE BELT TENSION READJUSTMENT
282
SCREW BELT TENSION READJUSTMENT
288
NUT COVER PLATE
294
SPACER TUBE BRACKET TO TRANSMISSION,5 724671
300
SPACER WASHER AS REQUIRED 2.00 MM
300
SPACER WASHER AS REQUIRED 3.00 MM
300
SPACER WASHER AS REQUIRED 1.00 MM
318
LOCK WASHER , Replaced By: N912004010102
324
SCREW TIGHTENER PULLEY BRACKET TO CONSOLE
330
WASHER STRUT TO CONSOLE
366
V-BELT HYDRAULIC PUMP
999
ENGINE CROSS MEMBERNO.2,156152
999
BRACKET LEFT, 156152
999
BRACKET RIGHT, 156152
999
SHIM , Replaced By: A4075460143
