Поз.
Артикул
Описание

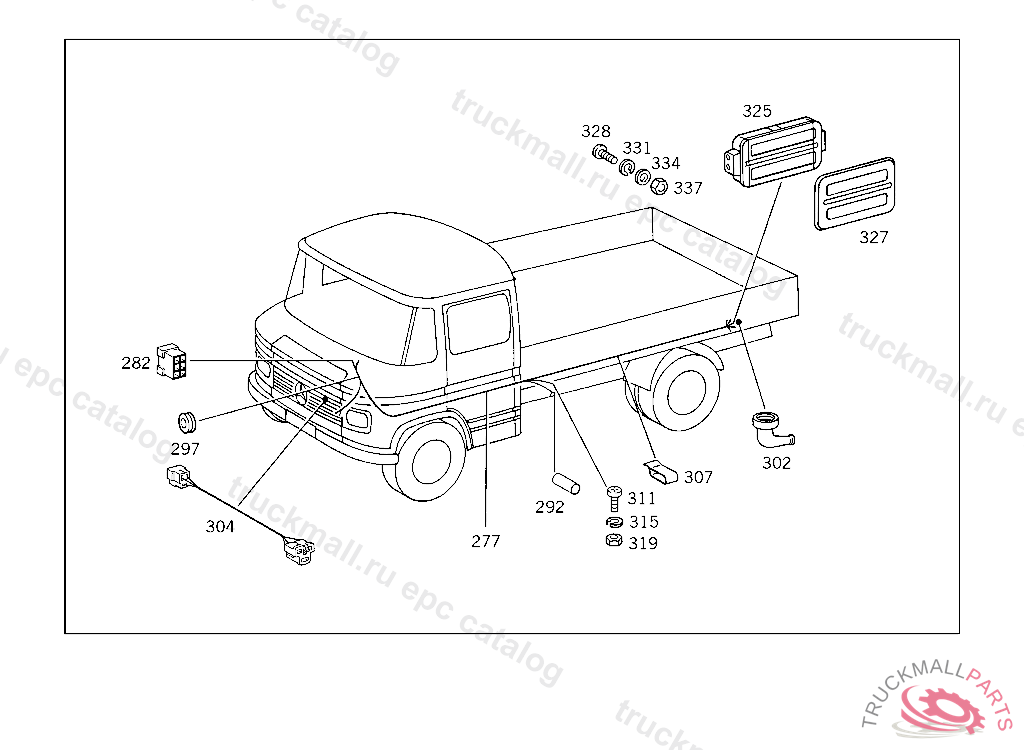

277
ELECTRIC CABLE FROM FRONT PLUG CONNECTION TO REAR CABLE CONNECTOR,A 002297
277
ELECTRIC CABLE FROM FRONT PLUG CONNECTION TO REAR CABLE CONNECTOR, FROM IDENT NO. 145737 ALSO INSTALLED ON 139841,139842,140553,145397,145406,145409,145426,145445,145462,145592,145660,145697,145701. EXCEPT FOR 145741,145768,145770,145774,145786,145787,145795,145807,145808,145819,145825,145830,145837,145840, 145846,145860,145861,145888,145901,145907,145910,145911,145913-145917,146138.303364
277
ELECTRIC CABLE , Replaced By: A3105400327
282
PLUG 6-POLE
282
PLUG FROM CHASSIS/CAB CONNECTION POINT TO TACHOGRAPH 2.5 MM2
282
PLUG HOUSING 6-POLE
282
PLUG. PIN BUSHING HOUSING 6-POLE
292
GROMMET3.0 MM
297
GROMMET ,D 314239
297
GROMMET PLUG SOCKET
302
PLUG SOCKET
304
ELECTRIC CABLE ALTERNATOR BRANCH-OFF
307
CLAMP , Replaced By: A3099950140
311
SCREW , Replaced By: N000000001145
315
LOCK WASHER CLAMP TO BRACKET
319
NUT BALL PIVOT TO LEVER
325
CABLE CONNECTION 6-POLE. CABLE CONNECTOR ,4 248860
325
CABLE CONNECTOR 6-POLE
327
COVERING WITH GASKET
328
SCREW CABLE CONNECTOR
331
LOCK WASHER CONTACT PLATE TO STEERING WHEEL
334
WASHER CABLE CONNECTOR
337
HEX. NUT M 4 DIN 934-5 S. NUT FUEL CONSUMPTION DISPLAY
999
BATTERY LESS ACID 135 AH
999
BOOT PIN BUSHING
999
NUT SWITCH
999
CLAMP , Replaced By: N916016008200
999
GROMMET5.0 MM
999
PIN BUSHING HOUSING 3-POLE,4 483482
999
RUBBER BUFFER
999
PLUG
999
CABLE HARNESS , Replaced By: A3785400005
999
CABLE HARNESS , Replaced By: A3785400005
999
CABLE HARNESS , Replaced By: A3785400005
999
GROMMET
999
GROMMETD6/32
999
GROMMET REGULATOR FEED CABLE TO VENTILATION DUCT, 017121521009
999
GROMMET HEADLAMP
999
GROMMET , Replaced By: A3359970081
999
GROMMET
999
POTENTIOMETER INSTRUMENT LIGHTING "SCRAM", WITH STEERING COLUMN MOUNTED SWITCH,FROM CHASSIS A 061072 TO BE ADAPTED DURING ASSEMBLY
999
BRACKET LEFT
999
BRACKET RIGHT
999
ELECTRIC CABLE FROM ALTERNATOR TO REGULATOR AND TO CABLE CONNECTOR,A 002297
999
SCREW STEERING COLUMN MOUNTED SWITCH TO STEERING COLUMN BRACKET M4X10
999
SCREW , Replaced By: N007985004107
999
LOCK WASHER T-FITTING TO BRACKET
999
COMBINATION BOLT , Replaced By: N007981004244, +001N000125004311
