Mercedes A0025450628 - КЛЕММА

1017 LS 380.251

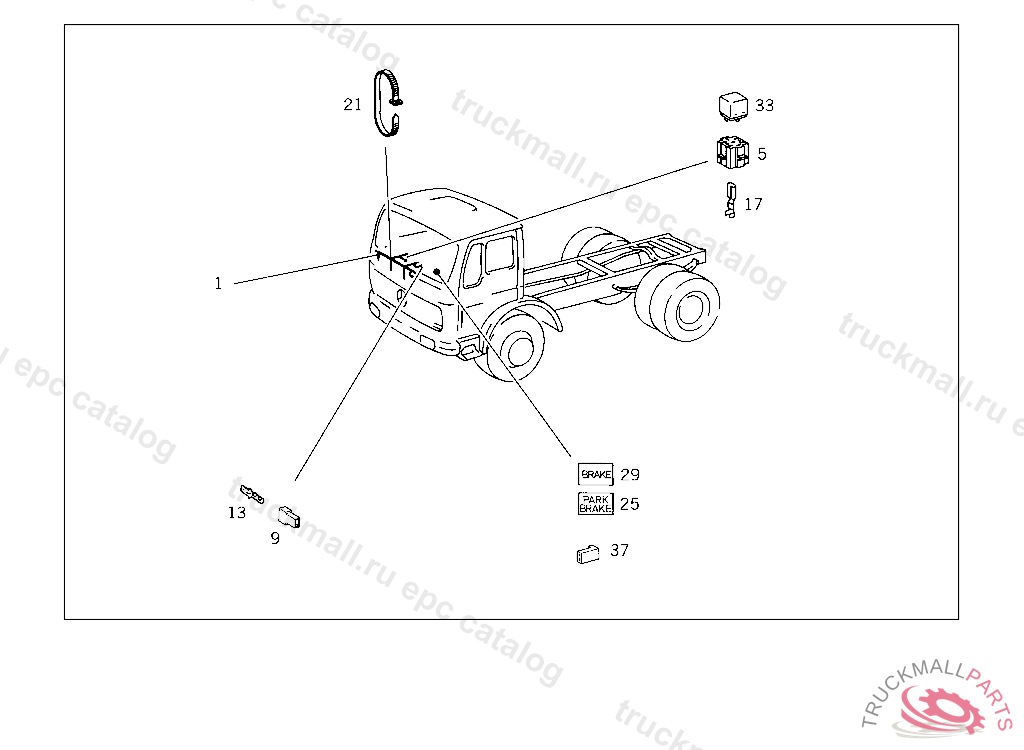

42 BRAKES - 001 ELECTRIC STROKE INDICATOR USED FOR BRAKE BOOSTER

Поз.
Артикул
Описание
1
A6205400636
ELECTRIC CABLE FROM CHARGING COMPENSATION RELAY TO BRAKE CONTROL SWITCH
5
A0065450728
PIN BUSHING HOUSING 5-POLE
9
A0025451328
PIN BUSHING HOUSING UNIPOLAR
13
A0025450628
PLUG FROM CHASSIS/CAB CONNECTION POINT TO TACHOGRAPH 2.5 MM2
17
A0005453726
PIN BUSHING WITH DETENT AND WITH CATCH FOR HOUSING 2,5 MM2
21
A0019978490
LOOM TIE LINE MOUNTING
21
A0019978390
LOOM TIE LINE MOUNTING 280 MM
25
A0035454090
LENS PARKING BRAKE
29
A0035453990
LENS HYDRAULIC BRAKE, Replaced By: A0015452290
29
A0015452290
LENS LESS SYMBOL, RED
33
A0005458305
RELAY REAR FOGLAMP
33
A0005455505
RELAY REAR FOGLAMP
37
A0025451128
PIN BUSHING HOUSING UNIPOLAR
999
A0015456290
LENS HYDRAULIC BRAKE ACTUATION, 415 5 014668 416 5 000515 417 4 972023
