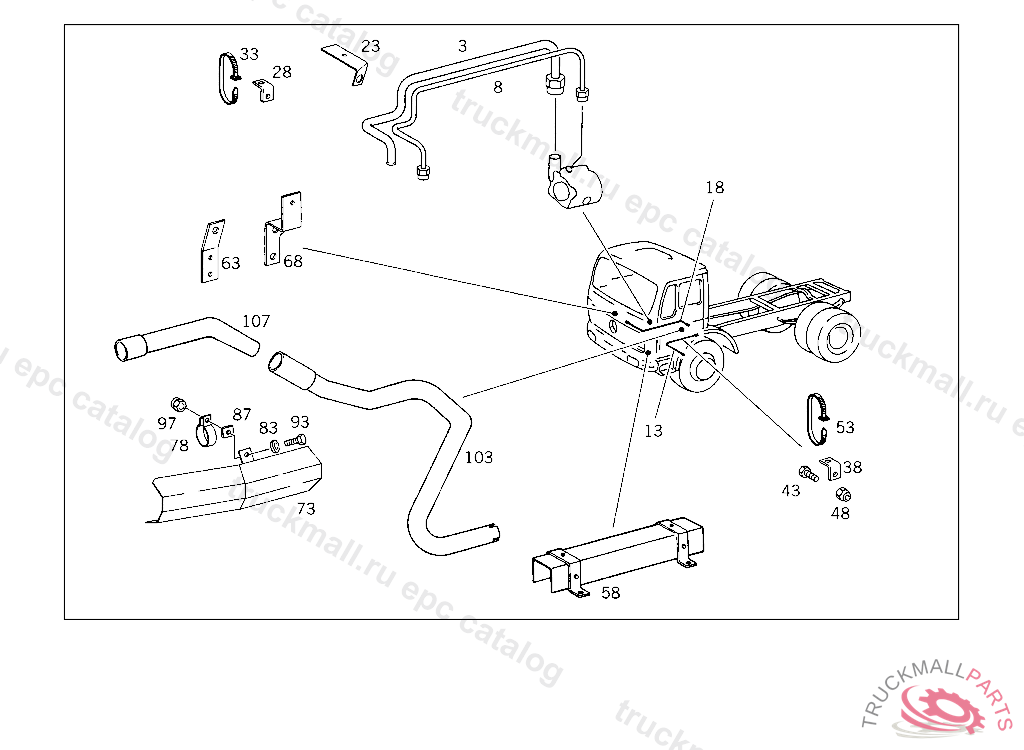

Поз.
Артикул
Описание
3
LINE FROM HOSE TO PUMP
8
LINE FROM POWER STEERING PUMP TO HOSE
13
LINE FROM TEST CONNECTION TO LEFT FRONT WHEEL BRAKE HOSE
13
LINE FROM TEST CONNECTION TO LEFT FRONT WHEEL BRAKE HOSE
13
LINE FROM PRESSURE CONTROL VALVE TO FRONT AXLE BRAKE HOSE,LEFT
18
LINE FROM TEST CONNECTION TO RIGHT FRONT WHEEL BRAKE HOSE
23
BRACKET DELIVERY AND SUCTION LINES
28
BRACKET FUEL LINE TO BELL HOUSING
28
BRACKET , Replaced By: A6454310740
33
LOOM TIE LINE MOUNTING
38
ANGLE LINE MOUNTING
38
ANGLE , Replaced By: A3604280243
43
SCREW CONSOLE TO SIDE MEMBER
48
NUT SUPPORT TO SIDE MEMBER
53
LOOM TIE LINE MOUNTING 280 MM
53
LOOM TIE , Replaced By: A0019978390
58
PROTECTIVE PLATE , EXHAUST STOCK OF OLD PART NUMBERS FIRST UP TO CHASSIS 5 034723, Replaced By: A3854201544
58
PROTECTIVE PLATE HEAT INSULATION, PLASTIC LINES, ON THE LEFT
63
BRACKET AT MUFFLER
68
BRACKET AT MUFFLER
73
PROTECTIVE PLATE FRONT RIGHT
78
CLAMP REAR EXHAUST PIPE TO BRACKET
83
WASHER PROTECTIVE PLATE TO FRONT EXHAUST PIPE
87
SUSPENSION PROTECTIVE PLATE TO EXHAUST PIPE
87
REPAIR KIT , Replaced By: A3094900037
87
INSULATING WASHER. INSULATION , Replaced By: A3094900037
93
SCREWM 8X40
97
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
97
NUT , Replaced By: N913004008001
103
FRONT EXHAUST PIPE FRONT
103
FRONT EXHAUST PIPE FRONT
103
FRONT EXHAUST PIPE FRONT
107
CONNECTOR RIGHT FRONT
999
BRACKET BRAKE LINE MOUNTING
999
PROTECTIVE PLATE RIGHT, NO LONGER AVAILABLE
999
PROTECTIVE PLATE LEFT, NO LONGER AVAILABLE
999
LINE FROM MASTER CYLINDER TO INTERMEDIATE PIECE 1850 MM
999
LINE FROM MASTER CYLINDER TO BRAKE PRESSURE REGULATOR 1650 MM, 734559
999
LINE FROM CONNECTOR TO BRAKE HOSE AT REAR AXLE 800 MM,4 478330
