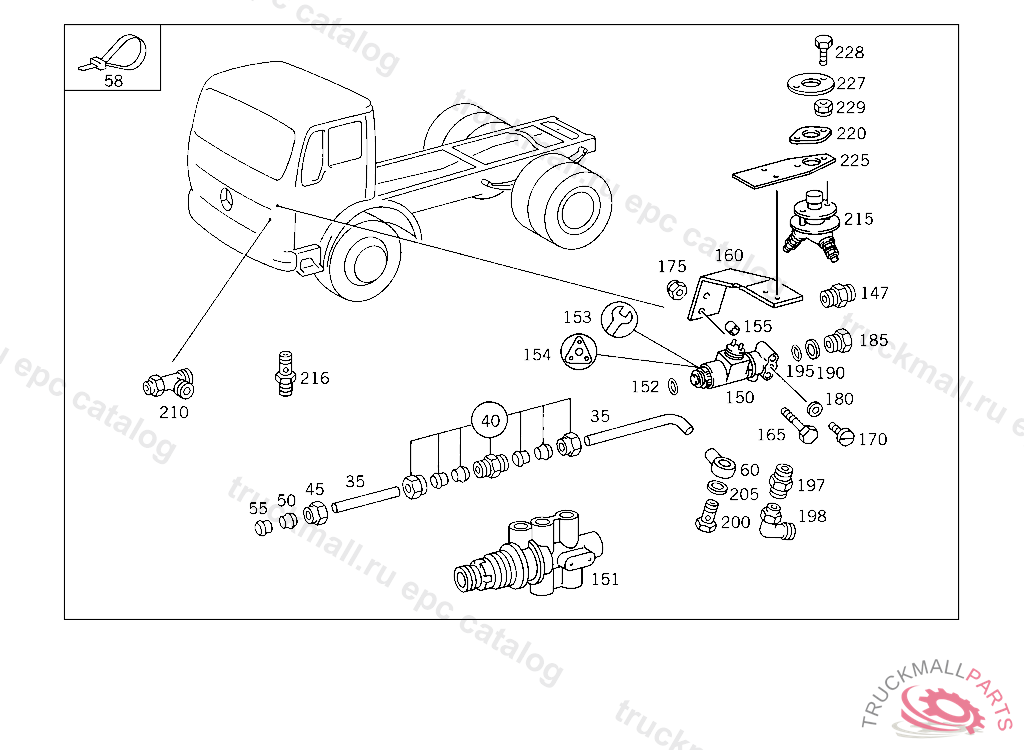

Поз.
Артикул
Описание
35
PLASTIC PIPE RISING PIPE 4X6 MM
35
HOSE LEAK LINE 4X6 MM, ORDER BY THE METER
40
FITTING (PARTS KIT),LINE RUPTURE,5 909352K 169122
45
UNION NUT
50
GLAND , Replaced By: A0019901667
50
SEAL CONE
55
SLEEVE LEAK LINE
58
LOOM TIE LINE MOUNTING
60
BANJO UNION HOSE WIDTH, / I.D., 4/10 MM
60
BANJO UNION HOSE WIDTH, / I.D., 4/12 MM
147
FITTING CONNECTION TO STOP LIGHT SWITCH
147
FITTING CONNECTION TO STOP LIGHT SWITCH, Replaced By: A3899970272
150
VALVE (3/2-WAY SOLENOID VALVE) EKS
151
VALVE 5/3-WAY
152
SEAL RINGWABCO
153
REPAIR KITTO 003 997 14 36,WABCO 472 123 19 80
154
GASKET KITKNORR
155
SEAL RING VALVE TO VALVE
160
BRACKET SOLENOID VALVE
165
SCREW BRACKET TO 3/2-WAY VALVE
165
SCREW AT SIDE MEMBER,REAR M 8X135
165
SCREW REAR AXLE REGULATING SOLENOID VALVE M 8X95
165
SCREW VALVE TO BRACKET M 8X55
165
SCREW , Replaced By: N304017008043
170
SCREW TO PLUG THE FREE CONNECTIONS
175
NUT , Replaced By: N913004008001
175
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
180
SEAL RINGBOSCH
185
SCREW PLUGROCKINGER TYP 59 G140,59 G150, Replaced By: N007604012105
185
SCREW PLUGROCKINGER,TYP 59 U150
190
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20",5 727400
190
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940103
195
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "40"
197
FITTING LINE CONNECTION
197
FITTING LINE CONNECTION, Replaced By: N000000006446
198
ELBOW FITTING 3/2-WAY VALVE,CONNECTION: "20",5 765577
200
HOLLOW SCREW HEATING CONNECTION
200
HOLLOW SCREW LINE CONNECTION
200
HOLLOW SCREW LINE CONNECTION
205
SEAL RING LINE CONNECTION
205
SEAL RING LINE CONNECTION
210
T-FITTING EXHAUST-BRAKE POWER CYLINDER
215
SWITCH (FOOT-OPERATED SWITCH),5 220372
215
SWITCH (FOOT-OPERATED SWITCH),5 220373
215
SWITCH , Replaced By: A0045450314, +001A0005465435
215
SWITCH EXHAUST BRAKE,K 004388
216
HOLLOW SCREW FITTING PNEUMATIC CYLINDER,CONNECTION: "10",5 308944
220
REINFORCEMENT EXHAUST BRAKE SWITCH,5 377329
225
REINFORCEMENT EXHAUST BRAKE SWITCH,5 462108
227
BRACKET SWITCH TO FLOOR PLATE,5 220373
228
SCREW SWITCH TO FLOOR PLATE M6X16,5 220373
229
NUT COMPRESSED AIR LINE TO LEFT SIDE MEMBER
229
NUT , Replaced By: N910113006001
999
VALVE EXHAUST BRAKE OPERATING MECHANISM BOSCH
999
PROTECTIVE CAPWABCO
999
REPAIR KIT , Replaced By: A0024302260
999
VALVE , Replaced By: A0039971736
999
VALVE , Replaced By: A0039971836
999
VALVE ,4 188089, Replaced By: A0029975836
999
VALVE , Replaced By: A0029975936
999
VALVE , Replaced By: A0029975836
999
SEAL RINGBOSCH
999
ROD
999
PIPE SOCKET COMPRESSED AIR PIPING TO 3/2-WAY VALVE
999
LEVER , Replaced By: A6203000628, +001N071803013208
999
ROD
