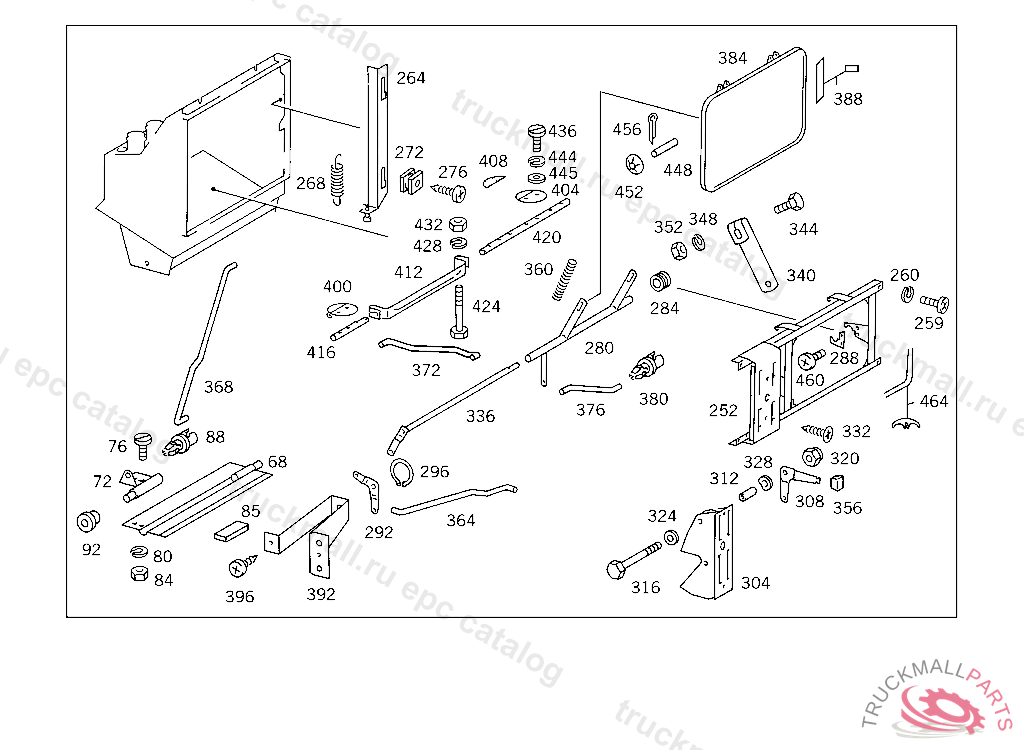

Поз.
Артикул
Описание
68
FLAP
72
BRACKET
76
CYLINDRICAL HEAD SCREW. SCREW BRACKET TO FLAP
80
LOCK WASHER CONTACT PLATE TO STEERING WHEEL
84
NUT MODULE TO HOUSING
85
PLASTIC SECTION BRACKET TO BRACKET, ORDER BY THE METER
88
CLIP
92
BUSHING FLAP TO HOUSING
252
FRAME
259
SCREW CABLE TO FUSE BOX M 6X12
260
LOCK WASHER EXTENSIBLE BRAKE VALVE TO CAB
264
BRACKET RIGHT
264
BRACKET LEFT
268
SPRING FRAME TO HOUSING
272
SEGMENT FRAME TO HOUSING
276
SHEET METAL SCREW FRAME TO HOUSING
280
OPERATING LEVER
284
BUSHING
288
BRACKET
292
LEVER
296
LOCK RING
304
MOUNTING
308
LEVER
312
BUSHING
316
SCREW HYDRAULIC LINE TO SIDE MEMBER
320
NUT PUMP TO BRACKET
324
WASHER PLUG SOCKET TO BRACKET
328
SPRING WASHER PROTECTIVE PLATE TO BELL HOUSING
332
SHEET METAL SCREW TOP COVERING IN HOUSING B 4,2X16
336
OPERATING LEVER
340
LEVER
344
SCREW LEVER TO SHAFT
348
LOCK WASHER CONTACT PLATE TO STEERING WHEEL
352
NUT BOOT TO AIR DUCT AND TO AIR CLEANER
356
KNOB
360
SPRING
364
LINK
368
LINK
372
LINK
376
LINK
380
CLIP
384
FLAP
388
PLASTIC SECTION , ORDER BY THE METER
392
BRACKET
396
SHEET METAL SCREW WIRE CABLE TO CAB
400
FLAP
404
FLAP
408
PLASTIC SECTION BRACKET TO BRACKET, ORDER BY THE METER
412
LEVER
416
SHAFT
420
SHAFT
424
SCREW LEVER TO SHAFT
428
LOCK WASHER
432
NUT MODULE TO HOUSING
436
SCREW FLAP TO SHAFT
444
LOCK WASHER BRACKET TO COVERING
445
WASHER CHAIN TO ENGINE COMPARTMENT INSULATION, ON VEHICLES HAVING MERCEDES-BENZ BODY UP TO CHASSIS 037773 ON VEHICLES HAVING NO MERCEDES-BENZ BODY UP TO CHASSIS 037601 EXCEPT FOR 037688,037693,037696,037735,037756. ALSO INSTALLED ON 037783
445
WASHER BRACKET MOUNTING
448
PIN FLAP TO LEVER
452
LOCK PLATE
456
COTTER PIN (ARTICULATED ROD)
460
SCREW CONTROL UNIT TO BRACKET
464
RUBBER SEAL FLAP TO LEVER
999
HOSE FROM RADIATOR TO WATER PUMP
999
INTERMEDIATE PIECE HEATING WATER LINE, NOT USED
999
BRACKET HEATER UNIT, NOT USED
999
HOSE
999
HOSE FROM INTERMEDIATE PIECE TO HEATING PIPE, NOT USED
999
BRACKET SHUT-OFF VALVE
999
GUSSET PLATE FRONT, NOT USED
999
SHAFT SHUT-OFF VALVE
999
SEPARATOR (BUBBLE SEPARATOR)
999
LOCKING CAP COOLING WATER LINE
999
LOCKING CAP AT WATER EXPANSION TANK
