Поз.
Артикул
Описание

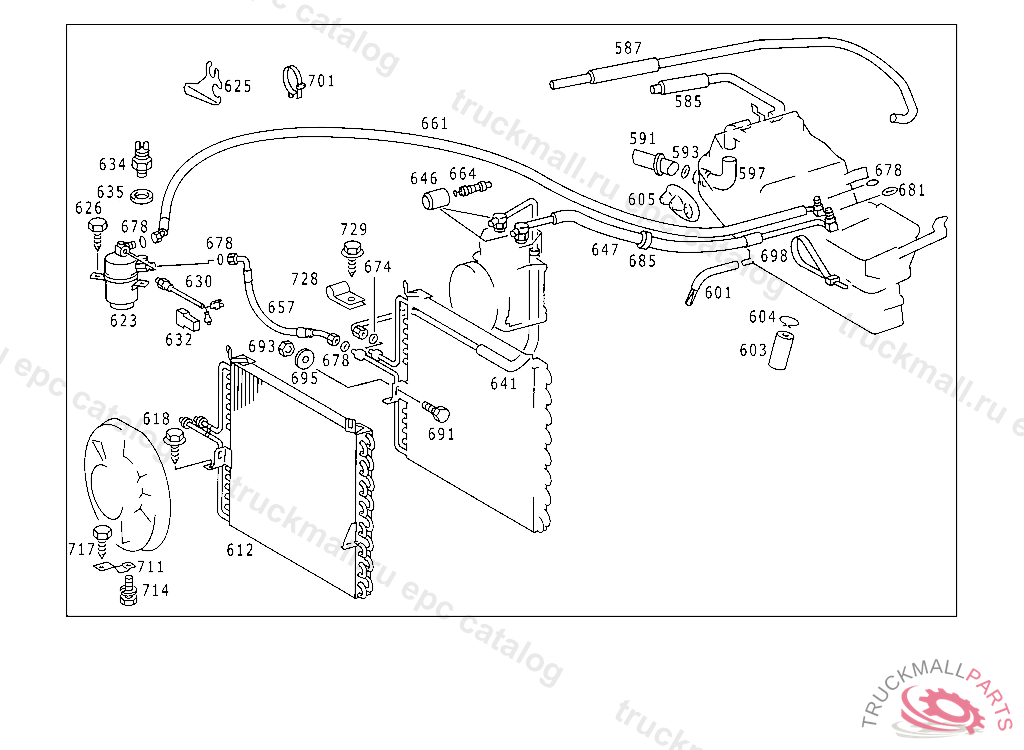

585
HOSE INTERIOR TEMPERATURE SENSOR,AIR NOZZLE
587
HOSE INTERIOR TEMPERATURE SENSOR,AIR NOZZLE, FROM MODEL YEAR '81
591
PIPE SOCKET FRONT PANEL PILLAR
593
SEAL AIR-BLAST NOZZLE BREATHER FITTING
597
HOSE AIR-BLAST NOZZLE BREATHER FITTING
601
HOSE CONDENSED WATER DRAIN FROM AIR CONDITIONER CASE TO TUNNEL
603
HOSE CONDENSED WATER DRAIN
604
LOOM TIE
605
GROMMET
612
CONDENSER
612
CONDENSER
612
CONDENSER
612
CONDENSER , 023 016993 033 012222 123 009145 130 014497 033 098845 123 303955 130 266592 223 083075
618
COMBINATION BOLT INSTRUMENT PANEL TO COWL,BOTTOM
623
TANK , RANGE OF DELIVERY INCLUDES:1 SEAL RING 000 835 05 98
625
BRACKET AT LIQUID TANK, UP TO CHASSIS123.130,132 257362 123.190 023925 123.193 006028
626
SHEET METAL SCREW BRACKET TO CAB FLOOR
630
SWITCH
632
INSULATING SLEEVE CABLE HARNESS FOR ELECTRIC SEAT ADJUSTER
634
SWITCH LIQUID TANK, 023 060688 033 029143 123 043369 130 055527
635
SEAL RING FROM EXPANSION VALVE TO COMPRESSOR
641
PIPE LINE FROM COMPRESSOR TO CONDENSER
641
PIPE LINE
641
PIPE LINE FROM COMPRESSOR TO CONDENSER
641
PIPE LINE FROM COMPRESSOR TO CONDENSER
641
PIPE LINE FROM COMPRESSOR TO CONDENSER
641
PIPE LINE FROM COMPRESSOR TO CONDENSER
646
CAP (PARTS KIT),CAP
647
PIPE LINE FROM EXPANSION VALVE TO COMPRESSOR
647
PIPE LINE FROM EXPANSION VALVE TO COMPRESSOR
647
PIPE LINE FROM EXPANSION VALVE TO COMPRESSOR, ONLY FOR 123.220,223,243,283
647
PIPE LINE EXPANSION-VALVE-TO-COMPRESSOR REFRIGERANT LINE
647
PIPE LINE FROM EXPANSION VALVE TO COMPRESSOR
647
PIPE LINE FROM EXPANSION VALVE TO COMPRESSOR
657
PIPE LINE FROM CONDENSER TO LIQUID TANK
661
PIPE LINE FROM LIQUID TANK TO EXPANSION VALVE
664
VALVE INSERT , NOT USED
674
SEAL RING HOSE TO RESERVOIR 10.6 MM
678
SEAL RING HOSE TO EXPANSION VALVE 7.5 MM
681
SEAL RING HOSE TO CONDENSER 14 MM
685
RUBBER RING
691
SCREW COVER PLATE TO COVER PLATE M 6 X 12
693
NUT BALL PIVOT TO LEVER
695
SPRING WASHER LICENSE PLATE TO BRACKET
698
LOOM TIE TO MOUNT PLASTIC PIPING
701
LOOM TIE
711
BRACKET AUXILIARY FAN
711
BRACKET AUXILIARY FAN
714
COMBINATION BOLT
717
SHEET METAL SCREW BRACKET TO CAB FLOOR
728
CLAMP
729
COMBINATION BOLT
