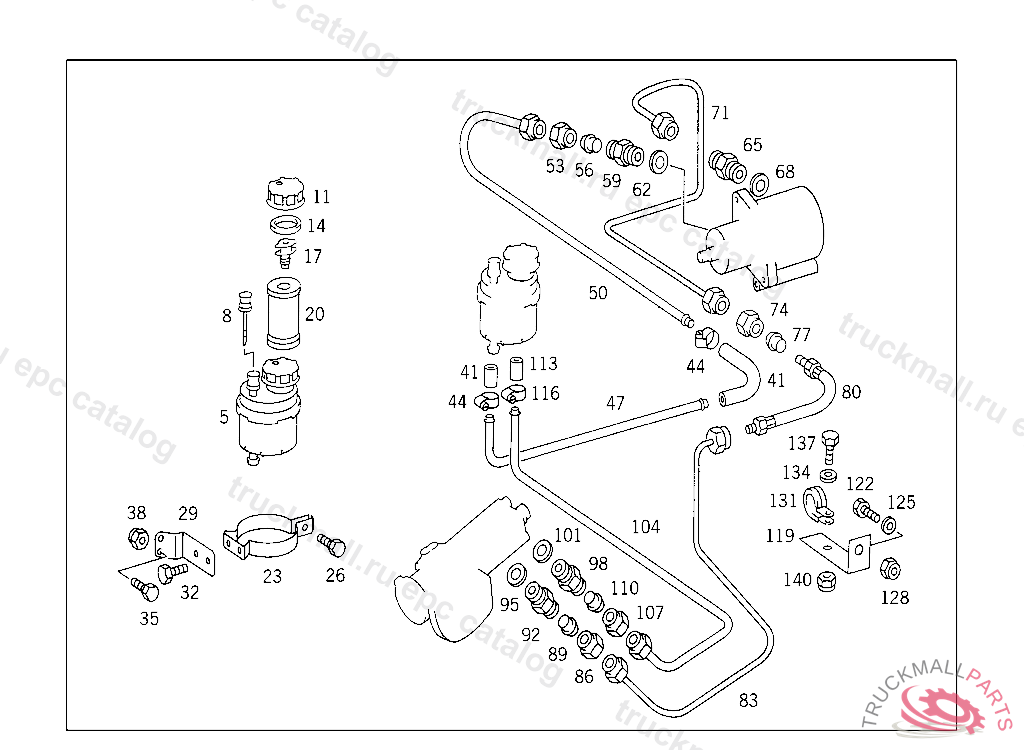

Поз.
Артикул
Описание
5
TANK OIL
8
OIL DIPSTICK
8
OIL DIPSTICK , Replaced By: A0004661167
11
FILLER CAP
14
SEAL RING
17
BRACKET
20
FILTER
23
STRAP OIL TANK
26
SCREW , Replaced By: N304017010040
29
BRACKET OIL TANK,1D 003621
29
BRACKET OIL TANK
32
SCREW BRACKET TO SIDE MEMBER
35
SCREW , Replaced By: N304017010040
38
NUT BRACKET TO SIDE MEMBER,XB209706
41
HOSE FROM OIL TANK TO POWER STEERING PUMP AT ENGINE
41
HOSE , Replaced By: A3849977482
44
CLAMP HOSE TO OIL TANK AND TO SUCTION LINE
44
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK
44
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
47
LINE (SUCTION LINE),FROM OIL TANK TO PUMP 1745 MM,1D 003621
47
LINE SUCTION LINE 1745 MM
50
LINE FROM HOSE TO POWER STEERING PUMP
53
UNION NUT LINE CONNECTION, Replaced By: N000000006243
56
GLAND , Replaced By: A0019901267
59
SCREW-IN FITTING SUCTION LINE TO OIL PUMP
62
SEAL RING LINE TO OIL PUMP
65
FITTING DELIVERY LINE TO PUMP
65
SCREW-IN FITTING OIL LINE CONNECTION
68
SEALING RING. SEAL RING DELIVERY LINE TO STEERING
71
LINE FROM HYDRAULIC PUMP TO STEERING,1D 003621
71
LINE FROM OIL PUMP TO HIGH PRESSURE HOSE
74
UNION NUT LINE CONNECTION, Replaced By: N000000006239
77
GLAND , Replaced By: A0019901967
80
HOSE DELIVERY LINE TO PUMP
80
HOSE (DELIVERY LINE),FROM PUMP TO STEERING
80
HOSE (DELIVERY LINE),FROM PUMP TO STEERING
83
LINE FROM HOSE TO STEERING,1D 003621
83
LINE (DELIVERY LINE) FROM HIGH PRESSURE HOSE TO STEERING BOX
86
UNION NUT LINE CONNECTION, Replaced By: N000000006239
89
GLAND , Replaced By: A0019901967
92
FITTING DELIVERY LINE TO PUMP
92
SCREW-IN FITTING OIL LINE CONNECTION
95
SEALING RING. SEAL RING DELIVERY LINE TO STEERING
98
SCREW-IN FITTING RETURN LINE TO STEERING
101
SEAL RING SOLENOID VALVE A 18X24
104
LINE RETURN, FROM STEERING TO OIL TANK,1D 003621
104
LINE RETURN, FROM STEERING TO OIL TANK
107
UNION NUT LINE CONNECTION
110
GLAND LINE CONNECTION
113
HOSE FROM STEERING TO OIL TANK
113
HOSE FROM STEERING TO OIL TANK
116
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
116
CLAMP , Replaced By: N000000000667
116
CLAMP HOSE TO HEATING PIPE
116
LOOM TIE HOSE TO HEATING PIPE
116
LOOM TIE. CLAMP HOSE TO FLANGE AND TO VALVE
119
BRACKET FUEL LINE
119
BRACKET OIL LINES
122
SCREW RETURN AND SUCTION LINES TO FRAME, FRONT M 12X40
122
SCREW BRACKET TO SIDE MEMBER
125
WASHER SUPPORT TO FRAME,D 127794
128
NUT BRACKET TO SIDE MEMBER
131
CLAMP DELIVERY AND SUCTION LINES TO FRAME 12/15
131
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, FRONT
131
CLAMP LINES TO BRACKET
131
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, FRONT
131
CLAMP BATTERY POS. CABLE TO BRACKET
131
CLAMP DELIVERY AND SUCTION LINES TO FRAME
131
CLAMP LINES TO BRACKET
131
CLAMP LINES TO BRACKET
134
WASHER PLUG SOCKET TO BRACKET
134
WASHER TRAILER PLUG SOCKET TO BRACKET
137
SCREW ELECTRICAL COMPARTMENT
137
SCREW LINES TO BRACKET
140
NUT PUMP TO BRACKET
140
NUT BRACKET TO SIDE MEMBER
