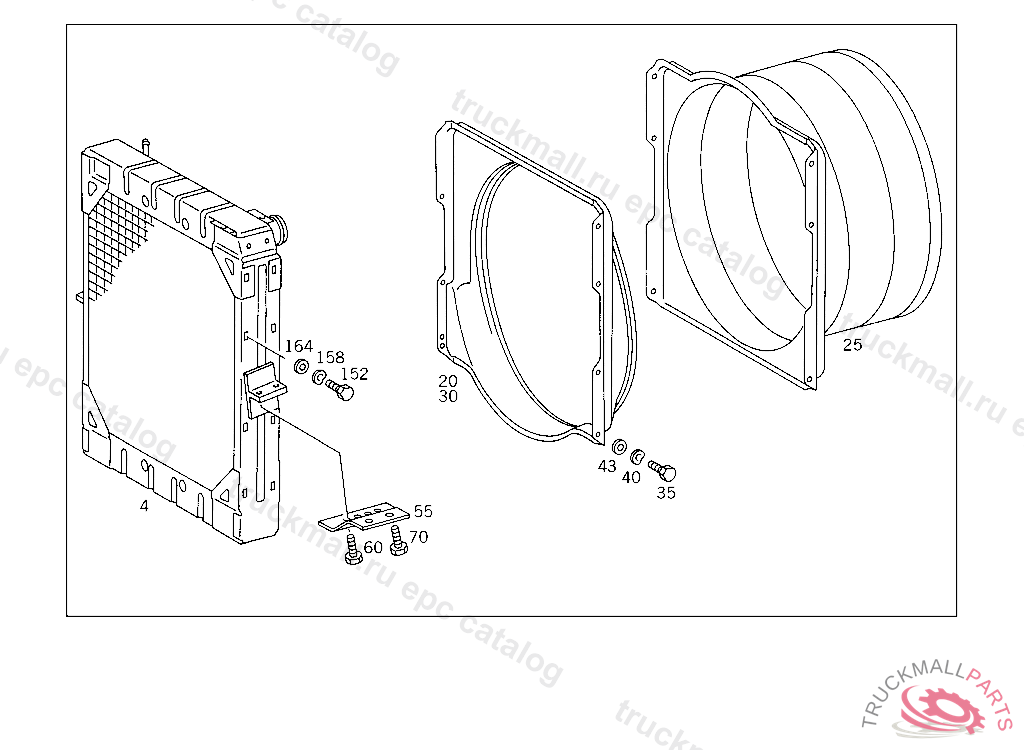

Поз.
Артикул
Описание
4
RADIATOR
4
RADIATORBEHR
20
FAN SHROUD RADIATOR
25
FAN SHROUD RADIATOR
30
FAN SHROUD RADIATOR
30
AIR BAFFLE
30
AIR BAFFLE
35
SCREW , Replaced By: N304017006016
35
SCREW COVER PLATE TO BRACKET
35
SCREW , Replaced By: N304017006018
35
SCREW PUMP TO BRACKET
35
SCREW COVER PLATE TO COVER PLATE M 6 X 12
40
SPRING WASHER LICENSE PLATE TO BRACKET
43
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
43
WASHER COMPRESSED AIR LINE TO BRACKET
55
SUPPORT RADIATOR
60
SCREW BRACKET TO SIDE MEMBER
70
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
70
SCREW CONSOLE TO SIDE MEMBER
70
HEXAGON HEAD BOLT RUBBER MOUNTING TO SIDE MEMBER AND TO SUPPORT M10X20
70
SCREW , Replaced By: N304017010028
152
SCREW COVER PLATE TO BRACKET
152
SCREW , Replaced By: N304017006020
152
SCREW LICENSE PLATE TO BRACKET
158
SPRING WASHER LICENSE PLATE TO BRACKET
164
WASHER AIR BAFFLE AND BRACKET TO RADIATOR
164
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
164
WASHER COMPRESSED AIR LINE TO BRACKET
999
RADIATOR WATER BEHR
999
RADIATOR , Replaced By: A0015010901
999
CLAMP
999
SHIM RUBBER MOUNTING TO BRACKET
999
SUPPORT RADIATOR
999
SUPPORT RADIATOR MOUNTING,4 428845
999
SHIM RUBBER MOUNTING TO BRACKET
999
RUBBER MOUNTING RADIATOR
999
RUBBER MOUNTING RADIATOR MOUNTING,4 428845
999
BRACKET OIL DIPSTICK TO RADIATOR
999
BRACKET OIL DIPSTICK TO RADIATOR
999
FAN SHROUD RADIATOR
999
FLANGE HEATING AND VENTILATION
999
BOOT FAN SHROUD TO FAN RING
