Главная
›
Mercedes
›
TRUCK
›
L 1622
›
386.028
›
30 CONTROL
›
060 ACCELERATOR PEDAL CONTROL
Mercedes A0009912422 - НАКОНЕЧНИК ТЯГИ
L 1622 386.028

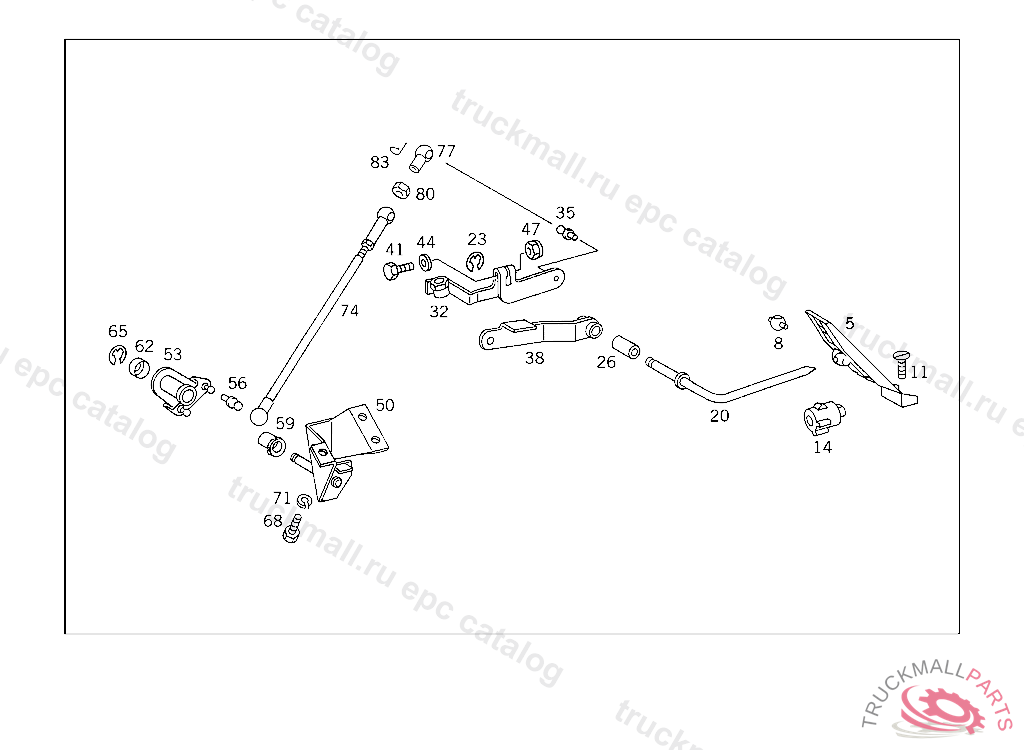

30 CONTROL - 060 ACCELERATOR PEDAL CONTROL
Поз.
Артикул
Описание
5
A3843007004
ACCELERATOR PEDAL
5
A6733000004
ACCELERATOR PEDAL
8
A3093010022
JOINT
11
N000963006010
SCREW ACCELERATOR PEDAL TO FLOOR PLATE
14
A1263010141
STOP FULL THROTTLE
20
A3763007325
LEVER (PEDAL LEVER)
23
N006799009002
LOCK PLATE
26
A3863017050
BUSHING ,B 892893
32
A3763007425
LEVER (CONTROL LEVER)
35
N071803010202
BALL STUD. BALL PIVOT TOP B10X4,5 MM
38
A3763007117
LEVER (CONTROL LEVER)
41
N000931006197
SCREW BRACKET TO FRAME
44
N000125006420
WASHER PLUG SOCKET TO BRACKET
47
N913004006002
NUT , Replaced By: N913004006001
50
A3843007240
BRACKET REVERSING LEVER
53
A3763007128
LEVER
56
N071803010202
BALL STUD. BALL PIVOT TOP B10X4,5 MM
59
A3813020050
BUSHING INTERMEDIATE LEVER TO BEARING BRACKET,5 943507
62
A4073015088
COVERING
65
N006799009002
LOCK PLATE
68
N000933008268
SCREW SWITCH TO BRACKET 8X16
71
N912004008100
LOCK WASHER RAIL TO BATTERY SUPPORT
74
A3863007315
ROD305 MM
74
A3863008115
ROD265 MM
77
A0009912422
BALL SOCKET PULL ROD TO LEVER
80
N000934006006
NUT
83
N071805010403
CIRCLIP. SECURING CLIP BALL SOCKET TO ROD
