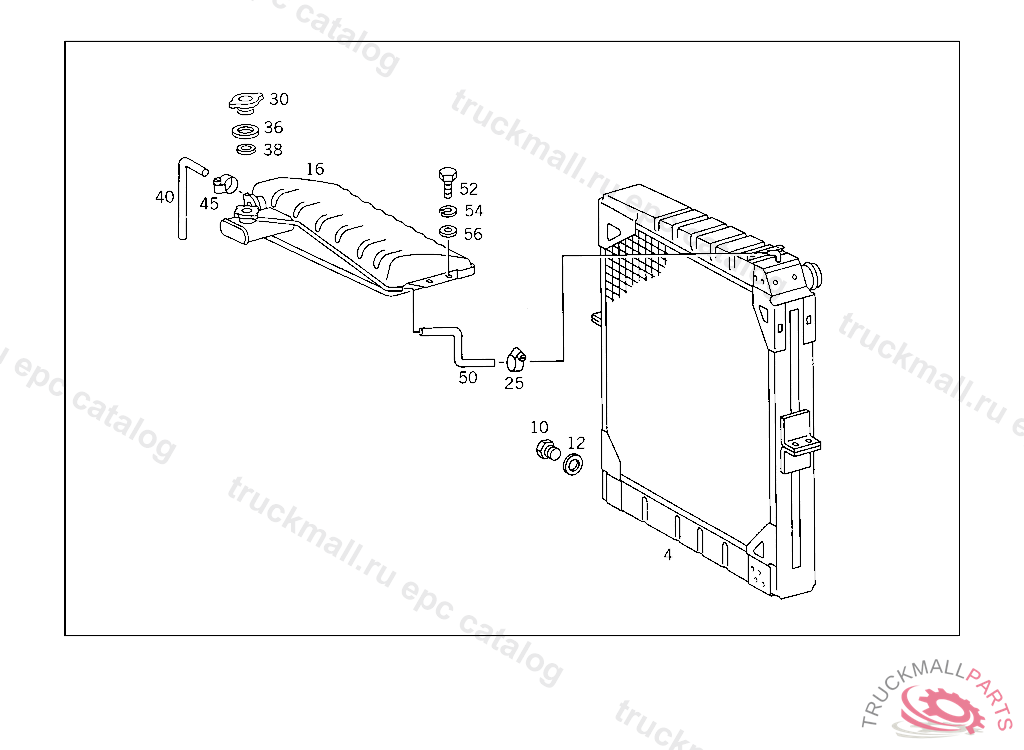

Поз.
Артикул
Описание
4
RADIATOR
10
SCREW PLUG WATER DRAIN
10
SCREW PLUG , Replaced By: N007604014101
12
SEAL RING FUEL LINE TO FEED PUMP
16
TANK ON RADIATOR
25
CLAMP HOSE TO RADIATOR AND TO EXPANSION TANK 12-22X13 MM
25
CLAMP , Replaced By: N916017011001
25
CLAMP , Replaced By: N916017011000
30
RADIATOR CAP
30
RADIATOR CAP
36
GASKET O.D., 52 MM
36
GASKET O.D., 52 MM
38
GASKET O.D., 37 MM
40
HOSE OVERFLOW
40
HOSE , Replaced By: A0139978682
45
CLIP CABLE HARNESS TO ROOF RAIL
45
CLAMP , Replaced By: A0009881878
50
HOSE DE-AERATION LINE, LENGTH AVAILABLE: 1000 MM
52
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
52
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
52
SCREW , Replaced By: N304017008016
54
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
54
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
56
WASHER EXHAUST MUFFLER TO STRAP
56
WASHER EXHAUST MUFFLER TO STRAP
56
WASHER , Replaced By: N000125008443
999
RADIATOR CAP , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A0005014215
999
RADIATOR CAP , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A0005014215
999
RADIATOR , Replaced By: A0005014601
999
RADIATOR CAP CENTRAL
999
RADIATOR , Replaced By: A0005014601
999
VALVE , NO LONGER REQUIRED,INSTAED, ORDER PART NOS. 007604 018101 + 007603 018101
999
CLAMP , Replaced By: A3609951201
999
CLAMP , Replaced By: A3609950601
999
HOSE FROM HEATING LINE TO HEATING LINE
999
TANK , Replaced By: A3815000749
999
SHIM , Replaced By: A3815010295
999
RADIATOR , Replaced By: A3855010401
999
HOSE , EXHAUST STOCK OF OLD PART NUMBERS FIRST UP TO IDENT NO. 4 434577, Replaced By: A3875012982
999
HOSE , Replaced By: A3875012882
999
BRACKET , NOT USED
999
WASHER BRACKET TO RIGHT FENDER, 415 5 014668 416 5 000515 417 4 972023
