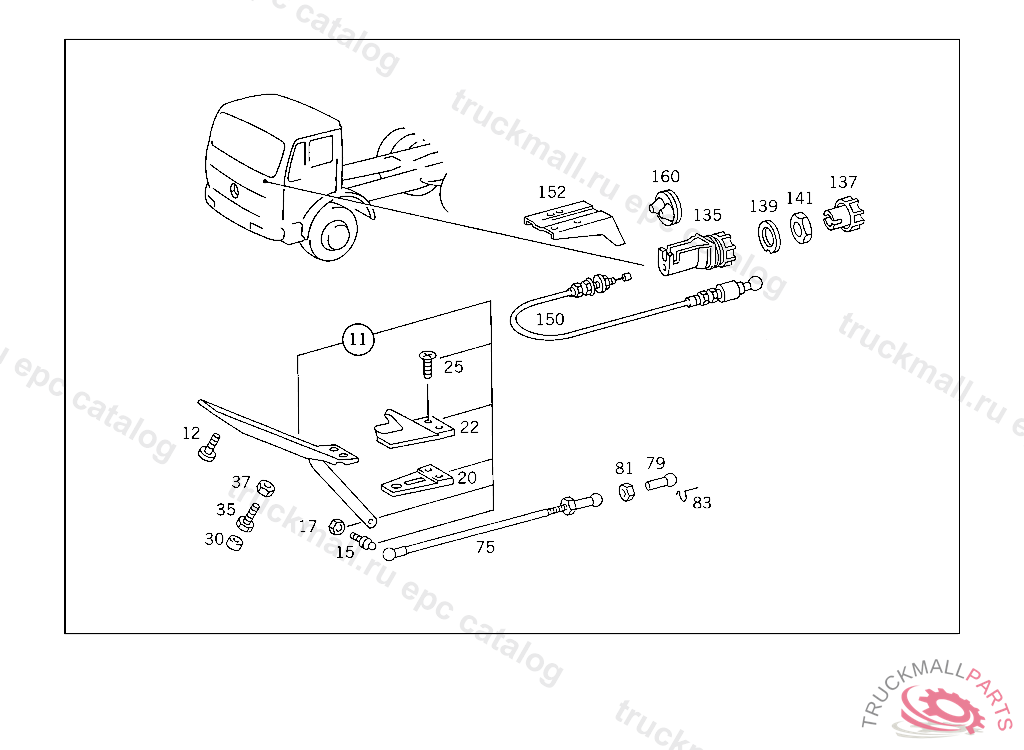

Поз.
Артикул
Описание
11
ACCELERATOR PEDAL (PARTS KIT), RANGE OF DELIVERY INCLUDES: 1X 655 301 00 93, 3X 000965 006077
11
ACCELERATOR PEDAL , TO BE ADAPTED DURING ASSEMBLY, Replaced By: A6243000304
11
ACCELERATOR PEDAL , Replaced By: A3813000104
12
SCREW ACCELERATOR PEDAL
15
BALL PIVOT LOAD SENSOR
15
BALL PIVOT CONTROL LEVER TO INJECTION PUMP LEVER, Replaced By: N000000004467
17
NUT PUMP TO BRACKET
17
NUT , Replaced By: N913004006001
20
SHIM ACCELERATOR PEDAL
20
SHIM , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 4 859957, Replaced By: A6153010084
20
SHIM ,4 227107-4 604519, Replaced By: A3813010284, +001A3813010297
20
SHIM ,4 227106, Replaced By: A3813010284, +001A3813010297
22
BOOT ACCELERATOR PEDAL
22
BOOT ACCELERATOR PEDAL,4 859957
22
BOOT ,4 227107-4 604519, Replaced By: A3813010297, +001A6153010084
22
BOOT ,4 227106, Replaced By: A3813010297, +001A6153010084
25
SCREW ACCELERATOR PEDAL TO CAB M 6X25
30
STOP ACCELERATOR PEDAL
35
SCREW VALVE TO BRACKET
35
SCREW VALVE TO BRACKET, Replaced By: N304014008002
37
NUT
75
ROD FROM ACCELERATOR PEDAL TO INTERMEDIATE LEVER, 415 5 014668 416 5 000515 417 4 972023
79
BALL SOCKET PULL ROD TO LEVER
81
NUT BALL PIVOT TO LEVER
83
CIRCLIP. SECURING CLIP BALL SOCKET TO ROD
135
MANUAL CONTROL IDLING ADJUSTMENT
137
KNOB MANUAL CONTROL
137
KNOB , Replaced By: A6153020001
139
FITTED WASHER MANUAL CONTROL
139
LOCK , Replaced By: N000988030003
141
NUT MANUAL CONTROL
150
WIRE CABLE IDLING ADJUSTMENT
150
WIRE CABLE IDLING ADJUSTMENT, 415 5 014668 416 5 000515 417 4 972023
150
WIRE CABLE , Replaced By: A3813001730
152
BRACKET
152
BRACKET , Replaced By: A3813020240
160
GROMMET
999
BRACKET , Replaced By: A3833020540
999
CLAMP LINE MOUNTING
999
SEAL WASHER , Replaced By: A3813010388
999
LEVER , Replaced By: A3813000728
999
BEARING BRACKET ,5 290094, Replaced By: A6203000436, +002A6153010088
999
LEVER , Replaced By: A6203000928, +002A6153010088
999
ROD LOAD SENSOR CONTROL
999
GUIDE MANUAL CONTROL
999
BRACKET WIRE CABLE TO FRAME SIDE MEMBER, 415 5 014668 416 5 000515 417 4 972023
999
ROD , Replaced By: A3604302992
999
ROD , Replaced By: A3813001115
999
BRACKET CABLE,4 345193
999
BRACKET CABLE HARNESS MOUNTING
999
BALL SOCKET ROD TO BALL PIVOT
999
PAD ACCELERATOR PEDAL
999
BEARING BRACKET INTERMEDIATE LEVER
999
LEVER (INTERMEDIATE LEVER)
999
GUIDE RAIL ACCELERATOR PEDAL TO FLOOR PLATE
999
SCREW DELIVERY AND SUCTION LINES TO ENGINE, TOP
999
SCREW COVER PLATE TO BRACKET
999
SCREW , Replaced By: N304017006018
999
SCREW , Replaced By: N304017006020
999
SCREW PEDAL TO CAB FLOOR
999
SCREW GUIDE RAIL RETROFIT M 6X35, BORE THREADED HOLES IN CAB FLOOR TO 6.5MM
999
SHEET METAL SCREW , Replaced By: N914031005208
999
SCREW COVER PLATE TO COVER PLATE M 6 X 12
999
SCREW LICENSE PLATE TO BRACKET
999
PULL ROD FROM CONTROL SHAFT BEARING TO ENGINE SHAFT, TO BE ADAPTED DURING ASSEMBLY
999
COMBINATION BOLT BRACKET TO WINDOW SILL GIRDER
