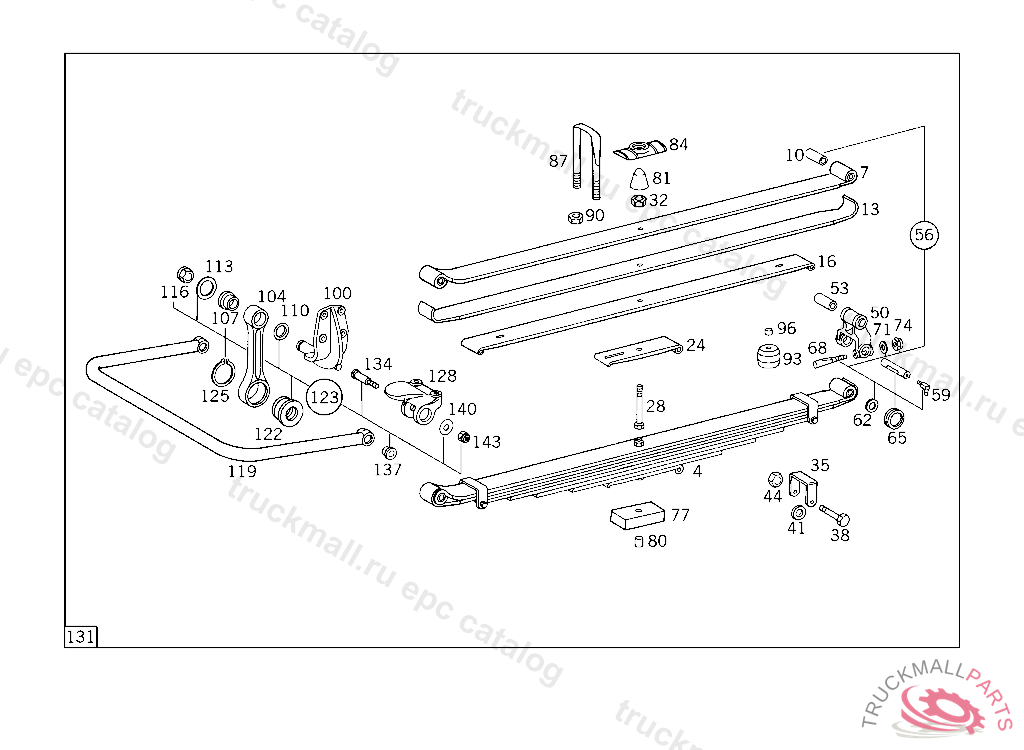

Поз.
Артикул
Описание
4
FRONT SPRING 12-LEAF
7
SPRING LEAFNO.1
10
BUSHING FRONT
10
BUSHING FRONT
13
SPRING LEAFNO.2
16
SPRING LEAFNO.3
16
SPRING LEAF , Replaced By: A6593210713
24
SPRING LEAFNO.8
24
SPRING LEAF , Replaced By: A6593210618
28
SCREW (SPRING BOLT)
28
SCREW , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 4 269038, Replaced By: A3873210071
32
NUT STEERING SUPPORT TO FRAME
32
NUT , Replaced By: N910113014000
35
SPRING CLAMP SPRING EYE,FRONT AND REAR,5 1933955 533057
35
SPRING CLAMP , Replaced By: A6203240433
35
SPRING CLAMP ,5 193394, Replaced By: A6203240733, +001N000963012011
35
SPRING CLAMP , Replaced By: A0023219233
38
SCREW FOR SPRING CLAMPS
38
SCREW FOR SPRING CLAMPS,5 484789
38
SCREW , Replaced By: N308765012007
41
WASHER FOR SPRING CLAMPS
44
NUT STRAP TO SUPPORT
50
SHACKLE FRONT SPRING
50
SHACKLE , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 4 354866, Replaced By: A3873200162
53
BUSHING FRONT
53
BUSHING FRONT
56
SHACKLE PIN PARTS KIT
56
REPAIR KIT , Replaced By: A3953200265
56
REPAIR KIT , Replaced By: A3955860232
59
GREASE NIPPLE
62
WASHER AS REQUIRED 4.30 MM
62
WASHER AS REQUIRED 4.20 MM
62
WASHER AS REQUIRED 4.00 MM
65
SEAL RING SPRING SUSPENSION
68
BOLT SPRING SHACKLE TO SPRING REAR BRACKET
71
WASHER RADIATOR TO RUBBER MOUNTING
71
WASHER , Replaced By: N000125010532
74
NUT STRAP TO BRACKET
74
NUT , Replaced By: N910113010000
77
SHIM FRONT SPRINGS TO FRONT AXLE
77
SHIM FRONT SPRINGS TO FRONT AXLE
77
SHIM FRONT SPRINGS TO FRONT AXLE
80
PIN , Replaced By: A6573310074
81
RUBBER BUFFER SPRING STOP
81
RUBBER BUFFER , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 5 389516, Replaced By: A6553310044
84
PLATE FRONT SPRINGS TO FRONT AXLE
84
PLATE , Replaced By: A6483310026
84
PLATE FRONT SPRINGS TO FRONT AXLE
84
SPACER , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 5 389516, Replaced By: A6483310026
87
U-BOLT FRONT SPRINGS TO FRONT AXLE 275 MM
87
U-BOLT FRONT SPRINGS TO FRONT AXLE 212 MM,5 0251885 184732
87
U-BOLT FRONT SPRINGS TO FRONT AXLE 230 MM
90
NUT REAR SPRING TO REAR AXLE
93
RUBBER BUFFER SPRING STOP TO FRAME BOTTOM SIDE
96
SPACER RING SPRING STOP TO FRAME BOTTOM SIDE
100
BEARING BRACKET REAR AXLE STABILIZER
100
CONSOLE , Replaced By: A3873230563, +001N000939012102
100
BEARING BRACKET , Replaced By: A3873200178
104
SHACKLE. LINK TORSION BAR
104
LINK ,4 707617, Replaced By: A3893230116, +001A3873230185
107
BUSHING SHACKLE TO BEARING BRACKET
110
SPACER WASHER SHACKLE TO BEARING BRACKET
113
SPACER WASHER SHACKLE TO BEARING BRACKET
116
NUT SUPPORT TO SIDE MEMBER
119
TORSION BAR TRAILING AXLE STABILIZER
122
RUBBER MOUNTING SHACKLE TO TORSION BAR
122
RUBBER MOUNTING TORSION BAR,4 707617
123
REPAIR KIT TORSION BAR MOUNTING
123
REPAIR KIT , Replaced By: A6203200228
123
REPAIR KIT TORSION BAR MOUNTING,4 394060 DELIVER ADDITIONALLY:2X 000125 033001,2X 000471 032000 UP TO IDENT NO. 4 1498724 707617
123
REPAIR KIT , Replaced By: A3873200028
125
LOCK RING SHACKLE TO TORSION BAR
128
BEARING RIGHT
128
BEARING LEFT
134
PIN , Replaced By: A6203200228
134
PIN , Replaced By: A6203200228
137
BUSHING TORSION BAR TO BEARING BRACKET
140
DISC SPRING TORSION BAR TO BEARING BRACKET
143
NUT TORSION BAR TO BEARING BRACKET
999
SHOCK ABSORBER , Replaced By: A3873260300
999
SHOCK ABSORBER , Replaced By: A3873260300
999
WASHER SHACKLE TO CONSOLE,965965
999
SCREW , TO BE ADAPTED DURING ASSEMBLY, Replaced By: N000960020084
999
SHACKLE PIN , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A3895860132
999
U-BOLT , Replaced By: A3873310925
999
SPRING LEAF , Replaced By: A6593210714
999
SPRING LEAF , Replaced By: A6593210615
999
SPRING LEAF , Replaced By: A6593210616
999
SPRING LEAF , Replaced By: A6593210617
999
SPRING LEAF , Replaced By: A6593210619
999
SPRING LEAFNO.10
999
SPRING LEAF , Replaced By: A6593210421
999
SPRING LEAF , Replaced By: A3873210122
999
SHACKLE PIN , Replaced By: A3955860232
999
SHACKLE PIN , Replaced By: A3955860332
999
SPRING LEAF , Replaced By: A6593210422
999
SHOCK ABSORBER , Replaced By: A3873260300
999
SHOCK ABSORBER (PARTS KIT)
999
BEARING BRACKET TO RIGHT STABILIZER,4 114936
999
SHIM FRONT SPRINGS TO FRONT AXLE
999
SPRING LEAF , Replaced By: A6563240219
999
SPRING LEAF , Replaced By: A3893240516
999
SPRING LEAF , Replaced By: A3893240517
999
SPRING LEAF , Replaced By: A3893240518
999
SPRING LEAF , Replaced By: A3893240019
999
SPRING LEAF , Replaced By: A3893240541
999
SPRING LEAF , Replaced By: A3893240542
999
SPRING LEAF , Replaced By: A3893240543
999
SPRING LEAF , Replaced By: A3893240544
999
SPRING LEAF , Replaced By: A3893240545
999
SPRING LEAF , Replaced By: A3893240546
999
SPRING LEAFNO.8
999
SPRING LEAF , Replaced By: A6563240317
999
SPRING LEAF , Replaced By: A6563240318
999
SPRING LEAF , Replaced By: A6563240541
999
SPRING LEAF , Replaced By: A6563240342
999
SPRING LEAF , Replaced By: A6563240343
999
SPRING LEAF , Replaced By: A6563240344
999
SPRING LEAFNO.6
999
SPRING LEAFNO.7
999
SHACKLE PIN , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A3895860132
999
SHACKLE PIN PARTS KIT
999
SHACKLE PIN , Replaced By: A3955860232
999
SHACKLE PIN , Replaced By: A3955860332
999
REPAIR KIT , Replaced By: A3955860332
999
REPAIR KIT , Replaced By: A3953200165
999
SPRING LEAFNO.11
999
SPRING LEAFNO.9
999
SPRING LEAFNO.10
999
SPRING LEAF , Replaced By: A6563240041
999
SPRING LEAFNO.4
999
SPRING LEAFNO.5
999
SPRING LEAF , TO BE ADAPTED DURING ASSEMBLY, Replaced By: A6563240044
999
SPRING LEAFNO.2
999
SPRING LEAFNO.12
999
SPRING LEAFNO.5
999
SPRING LEAFNO.6
999
SPRING LEAFNO.7
999
SPRING LEAFNO.9
999
SPRING LEAFNO.4
999
COTTER PIN
999
COTTER PINTO 000 429 16 30
999
WASHER SHACKLE TO BEARING BRACKET,965965
999
LOCK RING SHACKLE TO BEARING BRACKET,965965
999
LOCK RING SHACKLE TO CONSOLE TO 393 326 00 63,965965
999
STUD BOLT
999
STUD BOLT
999
SCREW BEARING BRACKET TO FRONT AXLE M 20X125,5 530466
999
SCREW TRAILER COUPLING TO REAR CROSS MEMBER
999
SCREW SHACKLE TO CONSOLE
999
SCREW BRAKE LINE COUPLING TO REAR CROSS MEMBER
999
NUT COMBINATION CYLINDER TO BEARING BRACKET
999
NUT COMBINATION CYLINDER TO BEARING BRACKET, Replaced By: N910113016002
