Поз.
Артикул
Описание
5

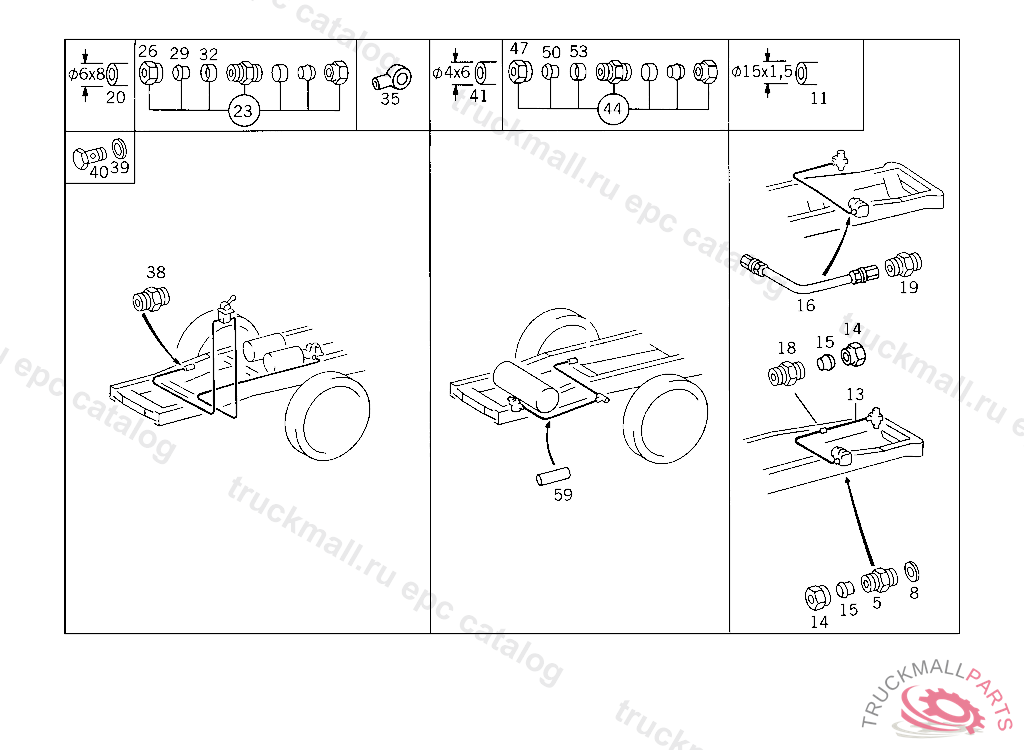

CONNECTOR AT AIR COMPRESSOR
8
SEAL RING LOAD/NO-LOAD VALVE,CONNECTIONS: "20,21",5 727400
11
LINE FROM AIR COMPRESSOR TO DOUBLE FITTING 15X1.5 MM, 390.001,031 A 099199 390.002,032 A 099380 390.012 A 099416 390.013 A 099299
11
LINE FROM AIR COMPRESSOR TO PRESSURE REGULATOR 15X1.5 MM, 390.001,031 A 099200 390.002,032 A 099381 390.012 A 099417 390.013 A 099300
11
LINE FROM FITTING TO T-FITTING, 390.001,031 A 099199 390.002,032 A 099380 390.012 A 099416 390.013 A 099299
13
LINE FROM PRESSURE REGULATOR TO FITTING
14
UNION NUT LINE CONNECTION
15
GLAND LINE CONNECTION
18
CONNECTION FITTING HIGH PRESSURE LINE TO STEERING
20
PLASTIC PIPE. HOSE AERATION 6X8 MM, ORDER BY THE METER
23
FITTING (PARTS KIT),LINE RUPTURE
26
UNION NUT LINE CONNECTION
29
GLAND LINE CONNECTION
32
SLEEVE LINE CONNECTION
35
BANJO UNION HOSE WIDTH, / I.D., 6/12 MM
35
BANJO UNION HOSE WIDTH, / I.D., 6/16 MM
35
BANJO UNION HOSE WIDTH, / I.D., 6/16 MM
38
CONNECTION FITTING ,880809
39
SEALING RING. SEAL RING ENGINE BREATHING
39
SEAL RING COMPRESSED AIR LINE TO PARKING BRAKE VALVE
39
SEAL RING LINE CONNECTION
39
SEAL RING PRESSURE REGULATOR,CONNECTION: "23",5 161701
40
HOLLOW SCREW
40
HOLLOW SCREW OIL DELIVERY LINE TO MANUAL PUMP A8
41
HOSE LEAK LINE 4X6 MM, ORDER BY THE METER
44
FITTING (PARTS KIT),LINE RUPTURE,5 909352K 169122
47
UNION NUT
50
GLAND , Replaced By: A0019901667
53
SLEEVE LEAK LINE
59
INSULATING HOSE COLOR CODE BLUE,YB227219
59
INSULATING HOSE COLOR CODE BROWN
59
INSULATING HOSE
59
INSULATING HOSE
59
INSULATING HOSE RED, ORDER BY THE METER
59
INSULATING HOSE RED, ORDER BY THE METER
59
INSULATING HOSE COLOR CODE GREEN
59
INSULATING HOSE8X0,01 MM
59
INSULATING HOSE COLOR CODE BLUE 2X0,01 MM
