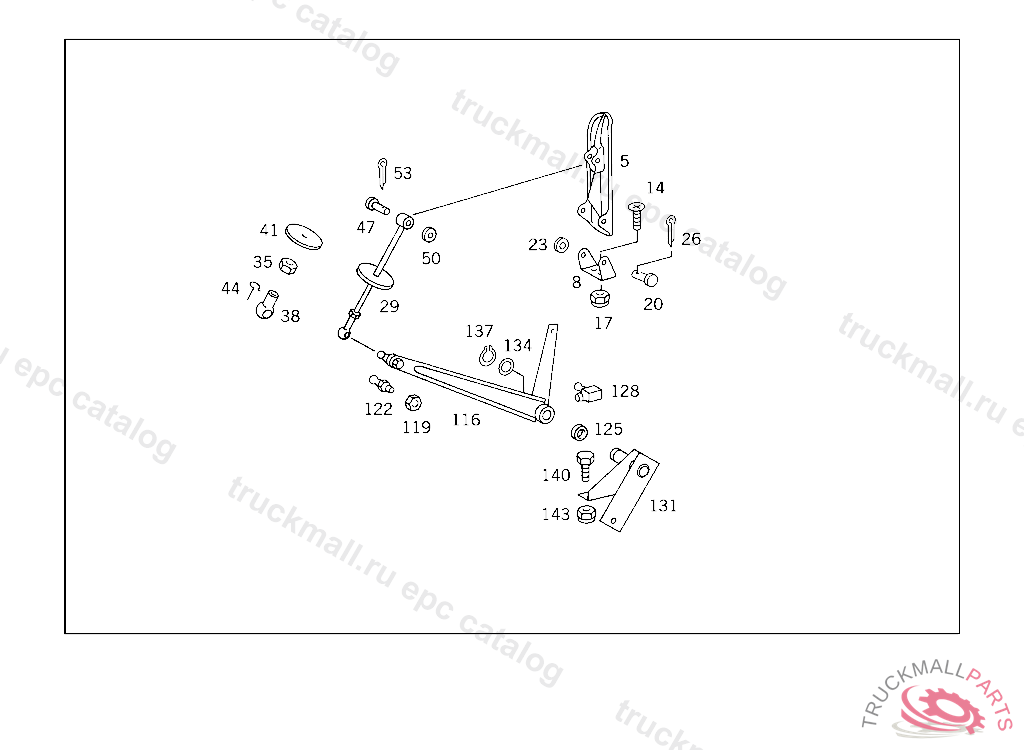

Поз.
Артикул
Описание
5
PEDAL PLATE ACCELERATOR PEDAL
8
ARTICULATION PIECE ACCELERATOR PEDAL TO FLOOR PLATE
8
ARTICULATION PIECE , Replaced By: A3903017005
14
SCREW ARTICULATION ELEMENT TO FLOOR M 8X35
17
NUT , Replaced By: N913004008001
20
PIN ACCELERATOR PEDAL TO JOINT
23
WASHER , Replaced By: N000125010532
26
COTTER PIN STRAP TO BRACKET
29
ROD FROM ACCELERATOR PEDAL TO CONTROL LEVER
29
ROD , Replaced By: A3903007515
35
NUT , Replaced By: N304032008006
38
BALL SOCKET ROD TO BALL PIVOT
41
SEAL
44
SECURING CLIP. CIRCLIP
47
PIN ROD TO PEDAL PLATE
50
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
53
COTTER PIN BATTERY COVER TO 388 540 70 14
116
LEVER ACCELERATOR PEDAL
119
NUT , Replaced By: N304032008006
122
BALL STUD. BALL PIVOT PULL ROD TO BRACKET
125
BUSHING MANUAL CONTROL,D 249954
128
GREASE NIPPLE PROTECTIVE TUBE
131
BEARING BRACKET PEDAL BEARING,793543 345.200,220 FROM CHASSIS 11008097
134
WASHER PEDAL BEARING
137
LOCK RING BELT TIGHTENER
140
SCREW , Replaced By: N304017008034
143
NUT AIR RESERVOIR TO FRAME
999
PULL ROD FROM CONTROL LEVER TO ENGINE 6X130X30/30
999
LEVER , NOT USED
