Mercedes N308676024000 -

OHL 1621 390.046

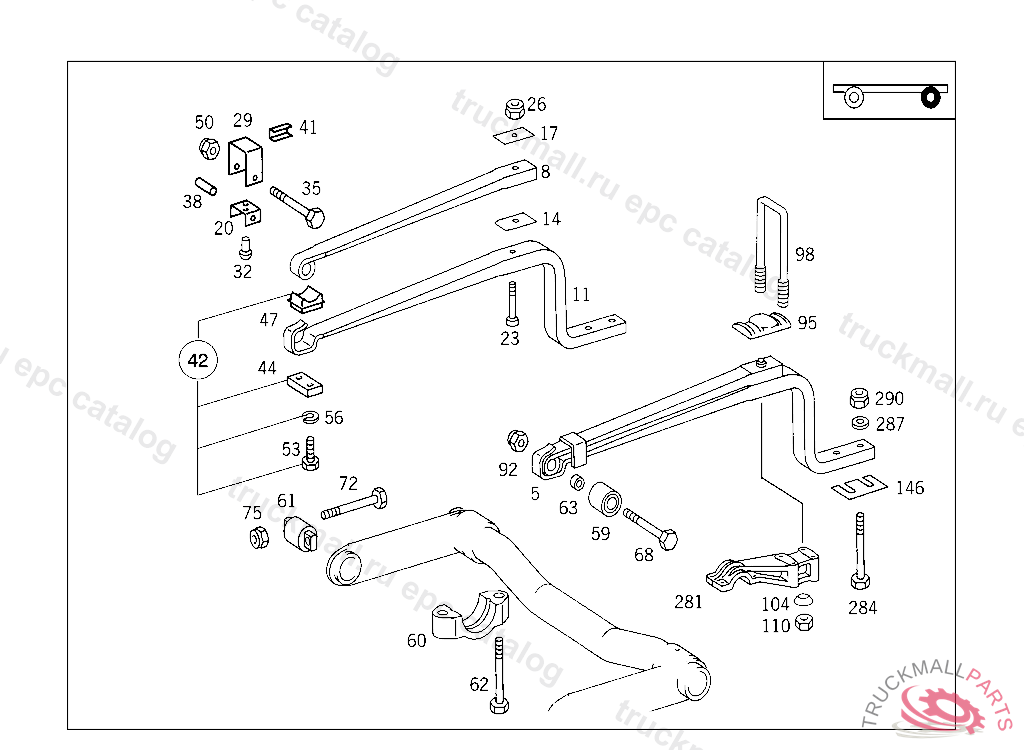

32 SPRINGS AND SUSPENSION - 560 PNEUMATIC SUSPENSION & STABILIZATION ON REAR AXLE IL. 1
  • Поз.
    Артикул
    Описание
  • 60
    COVER TORSION BAR TO AIR-SPRING-BELLOWS SUPPORT, NO.7390I I I I II
  • 61
    BUSHING TORSION BAR TO AIR-SPRING-BELLOWS SUPPORT
  • 62
    HEXAGON HEAD BOLT TORSION BAR TO AIR-SPRING-BELLOWS SUPPORT M24X2.0X80
  • 72
    SCREW. BOLT TORSION BAR MOUNTING
  • 75
    NUT SHOCK ABSORBER TO BEARING BRACKET
