Поз.
Артикул
Описание

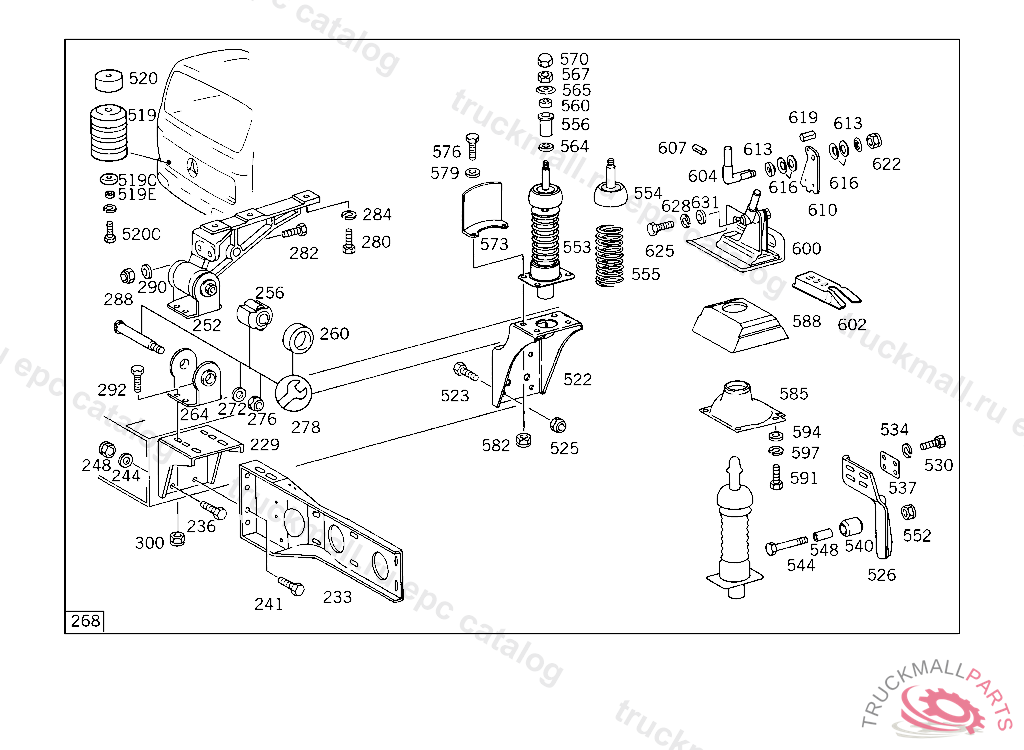

229
CONSOLE PEDESTAL
229
CONSOLE , Replaced By: A3878912631
233
STRUT BUMPER AT TORSION BAR
236
SCREW SUPPORT TO SIDE MEMBER M 14X45
236
SCREW , Replaced By: N308676014012
241
SCREW APPARATUS SUPPORT TO FRAME
241
SCREW , Replaced By: A9429901304
244
WASHER STRUT TO EXHAUST PIPE AND TO SIDE MEMBER
244
WASHER , Replaced By: N000125015019
248
NUT STEERING SUPPORT TO FRAME
248
NUT , Replaced By: N910113014000
252
BRACKET CAB,LEFT, FOR USE WITH SHORT VERSION OF MERCEDES-BENZ CAB5 146509
256
RUBBER BUFFER
260
RUBBER BUFFER , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A6205860031
264
MOUNTING , Replaced By: A3878908703, +001A6558902903
268
PIN
272
WASHER TORSION BAR TO BEARING BRACKET, Replaced By: N007349017003
276
NUT COMBINATION CYLINDER TO BEARING BRACKET
276
NUT COMBINATION CYLINDER TO BEARING BRACKET, Replaced By: N910113016002
278
REPAIR KIT CAB SUSPENSION,FRONT, FOR USE WITH SHORT MERCEDES-BENZ CAB5 764324
280
SCREW BRACKET TO CAB CONSOLE M14X1.5X40
282
SCREW BRACKET TO SIDE MEMBER
284
LOCK WASHER BRACKET TO SIDE MEMBER,5 703114
288
NUT BRACKET TO SIDE MEMBER
288
NUT , Replaced By: N910113014001
290
WASHER BRACKET TO SIDE MEMBER,5 703114
292
SCREW APPARATUS SUPPORT TO FRAME
292
SCREW , Replaced By: A9429901304
300
NUT STEERING SUPPORT TO FRAME
300
NUT , Replaced By: N910113014000
523
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X35
523
SCREW , Replaced By: N308676012026
525
NUT SUPPORT TO SIDE MEMBER
526
GUIDE CAB,LEFT, 10/20 UP TO IDENT NO. 960232, 50/60 UP TO IDENT NO. 962188
530
SCREW GUIDE TO CAB, FOR USE WITH SHORT VERSION OF MERCEDES-BENZ CAB
534
LOCK WASHER FITTING TO BRACKET
537
SHIM GUIDE TO CAB
540
BUSHING LATERAL GUIDE OF CAB
544
SCREW RIGHT BRACKET TO RIGHT BEARING BRACKET
548
SPACER TUBE BRACKET TO CONSOLE
552
NUT SUPPORT TO SIDE MEMBER
553
SHOCK ABSORBER (VIBRATION ABSORBER),CAB REAR SUSPENSION, FOR USE WITH SHORT VERSION OF MERCEDES-BENZ CAB5 146509
553
SHOCK ABSORBER , Replaced By: A3878901319
553
SHOCK ABSORBER , Replaced By: A3878901619
554
RUBBER MOUNTINGTO 387 890 36 19
555
SPRING , FOR USE WITH SHORT VERSION OF MERCEDES-BENZ CAB5 146509
555
SPRING , Replaced By: A0008910451
556
SPACER TUBE SHOCK ABSORBER MOUNTING
560
RUBBER RING SHOCK ABSORBER MOUNTING
560
DISC SPRING , Replaced By: A3275045082, +001A3878912010
564
WASHER COMBINATION CYLINDER TO SLACK ADJUSTER
565
WASHER SHOCK ABSORBER MOUNTING
567
NUT STRAP TO SUPPORT
570
CAP NUT VIBRATION ABSORBER
570
CAP NUT , Replaced By: N001587012010
573
COVER PLATE SHOCK ABSORBER
576
SCREW BRACKET TO CROSS CONNECTION STRUT
576
SCREW , Replaced By: N304017008034
579
WASHER BRACKET TO LEFT SIDE MEMBER
579
WASHER , Replaced By: N009021008213
582
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
582
NUT , Replaced By: N913004008001
585
BRACKET VIBRATION ABSORBER TO CAB,RIGHT, FOR USE WITH SHORT VERSION OF MERCEDES-BENZ CAB5 157715
585
BRACKET VIBRATION ABSORBER TO CAB,LEFT, FOR USE WITH SHORT VERSION OF MERCEDES-BENZ CAB5 157715
588
BOOT VIBRATION ABSORBER, FOR USE WITH SHORT VERSION OF MERCEDES-BENZ CAB5 157715
591
SCREW END PIECE TO EXHAUST PIPE M 10X25
594
WASHER RADIATOR TO RUBBER MOUNTING
594
WASHER , Replaced By: N000125010532
597
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
600
LOCKING MECHANISM CAB LOCKING MECHANISM,LEFT, FOR USE WITH SHORT VERSION OF MERCEDES-BENZ CAB
602
LATCH CAB LOCKING MECHANISM
604
PIN , FOR USE WITH SHORT VERSION OF MERCEDES-BENZ CAB
607
CLAMPING SLEEVE
610
LEVER
613
WASHER
616
DISC SPRING CAB LOCKING MECHANISM
619
CLAMPING SLEEVE CAB LOCKING MECHANISM
622
NUT SUPPORT TO SIDE MEMBER
625
SCREW END PIECE TO EXHAUST PIPE M 10X25
628
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
631
WASHER RADIATOR TO RUBBER MOUNTING
631
WASHER , Replaced By: N000125010532
999
RUBBER MOUNTINGTO 620 890 02 19
999
SCREW MOUNTING USED FOR FRAME CONNECTION PARTS
999
SCREW , Replaced By: N308676012013
999
SCREW , Replaced By: A3959900501
999
SCREW , Replaced By: A0029908201
999
SCREW , Replaced By: A3169900014
999
SCREWM 14X14X22X40
999
SCREWM 14X14X18X32
999
SCREWM 14X14X27X45
999
SCREWM 16X18X18X40
999
SCREW FRONT SPRING FRONT BRACKET TO SIDE MEMBER
999
SCREWM 12X13X18X35
999
SCREWM 12X14X13X35
999
SCREWM 14X14X24X42
999
SCREWM 14X15X15X32
999
SCREWM 14X15X21X38
999
SCREW PLATE TO SIDE MEMBER
999
SCREWM 16X17X22X42
999
SCREWM 12X13X21X38
999
SCREWM 14X15X27X44
999
SCREWM 14X15X17X34
999
SCREWM 14X15X29X46
999
SCREWM 14X15X19X36
999
SCREWM 12X13X15X32
999
SCREW , Replaced By: A0009906314
999
SCREWM 14X14X32X50
999
COUPLING PIN , Replaced By: A3813172374
999
LOCKING MECHANISM , Replaced By: A3813101975
999
LOCKING MECHANISM , Replaced By: A3813102075
999
LOCKING MECHANISM CAB LOCKING MECHANISM,RIGHT, FOR USE WITH SHORT VERSION OF MERCEDES-BENZ CAB
999
BRACKET CAB, RIGHT, FOR USE WITH SHORT VERSION OF MERCEDES-BENZ CAB5 146509
999
BRACKET , Replaced By: A3813177840
999
BRACKET , Replaced By: A3813177940
999
SCREWM 12X13X35X52
999
SCREWM 14X15X35X52
999
SCREWM 14X15X31X48
999
SCREWM 10X11X26.5X46
999
SCREWM 12X12X10X25
999
SCREW , Replaced By: A3229903101
999
SCREW , Replaced By: N308676016020
999
SCREWM 16X16X22X40
999
SCREW , Replaced By: N000961016118
999
SCREWM 12X12X11X26
999
SCREWM 12X12X13X28
999
SCREWM 16X16X20X38
999
SCREWM 16X16X30X48
999
SCREWM 16X16X32X50
999
SCREWM 14X14X18X34
999
SCREWM 12X12X15X30
999
SCREWM 12X12X17X32
999
SCREWM 18X18X23X45
999
SCREW , Replaced By: N000961018043
999
REINFORCEMENT LEFT,FOR TORSION BAR,5 184731
999
ANGLE , Replaced By: A3873110353
999
REINFORCEMENT RIGHT,FOR TORSION BAR,5 184731
999
GUSSET PLATE FRONT LEFT, TO BE ADAPTED DURING ASSEMBLY
999
GUSSET PLATE , Replaced By: A6203120987
999
COUPLING PIN FOR COUPLING MOUTH
999
ANGLE LEFT
999
ANGLE RIGHT
999
GUIDE LEFT
999
GUIDE RIGHT
999
SHIM CAB TO FRAME
999
CROSS MEMBERNO.4A
999
SCREWM 16X18X63X85
999
CROSS MEMBER REAR,4 707518
999
CROSS MEMBER IN FRONT OF REAR CROSS MEMBER NO.7
999
CROSS MEMBER REAR,4 707519
999
TRUSS RIGHT
999
CROSS MEMBER CENTRAL BEARING
999
STRUT LEFT AND RIGHT
999
GUSSET PLATE LEFT
999
GUSSET PLATE RIGHT
999
BEARING BRACKET CONTROL ARM
999
SCREWM 16X16X20X45
999
SCREWM 12X13X13X30
999
SCREWM 12X13X23X40
999
GUSSET PLATE
999
SCREWM 16X18X26X48
999
SCREWM 12X13X12X29
999
SCREWM 16X18X38X60
999
SCREWM 12X13X25X42
999
SCREWM 16X16X38X90
999
SCREWM 14X15X18X35
999
SCREWM 16X17X24X44
999
SCREWM 12X13X63X85
999
SCREWM 12X13X58X80
999
FITTED SCREWM 10X11X14X28
999
FITTED SCREWM 10X11X24X40
999
FITTED SCREWM 18X19X57X85
999
FITTED SCREWM 10X11X25X38
999
FITTED SCREWM 18X19X25X45
999
FITTED SCREWM 18X19X38X60
999
FITTED SCREWM 18X19X33X55
999
SCREW BEARING BRACKET TO SIDE AND CROSS MEMBERS M 18X85,5 557245
999
SCREW BEARING ON CENTER BEARING BRACKET M 18X100
999
SCREW SUPPORTING ARM TO BELL HOUSING M 18X85
999
SCREW ENGINE MOUNTING TO SUPPORTING ARM M 18X1.5X145
999
SCREW PLATE TO CENTRAL BEARING
999
SCREW SHOCK ABSORBER TO RAIL
999
SCREW BRACKET TO LEFT SIDE MEMBER
999
SCREW BRACKET TO SIDE MEMBER
999
SCREWM 18X18X33X55
999
WASHER BRACKET TO SPARE WHEEL CARRIER
999
HEXAGON HEAD BOLT , Replaced By: A0029902704
999
SCREW CONSOLE TO FRAME
999
RIVET REAR CROSS MEMBER 12X42 MM
999
RIVET12X58 MM, TO BE ADAPTED DURING ASSEMBLY
999
RIVET FRAME TRUSS TO SIDE MEMBER
999
HEXAGON NUT EXHAUST PIPE TO BRACKET ON SIDE MEMBER
999
NUT CONSOLE TO SUPPORT
999
NUT INTERMEDIATE LEVER TO STEERING SUPPORT
999
NUT GUSSET PLATES AND REAR CROSS MEMBER TO SIDE MEMBERS
999
NUT , Replaced By: N910113012003
999
NUT , Replaced By: N910113016001
999
NUT , Replaced By: N910113018004
999
NUT TORSION BAR TO BEARING BRACKET,5 904661
