Поз.
Артикул
Описание
5

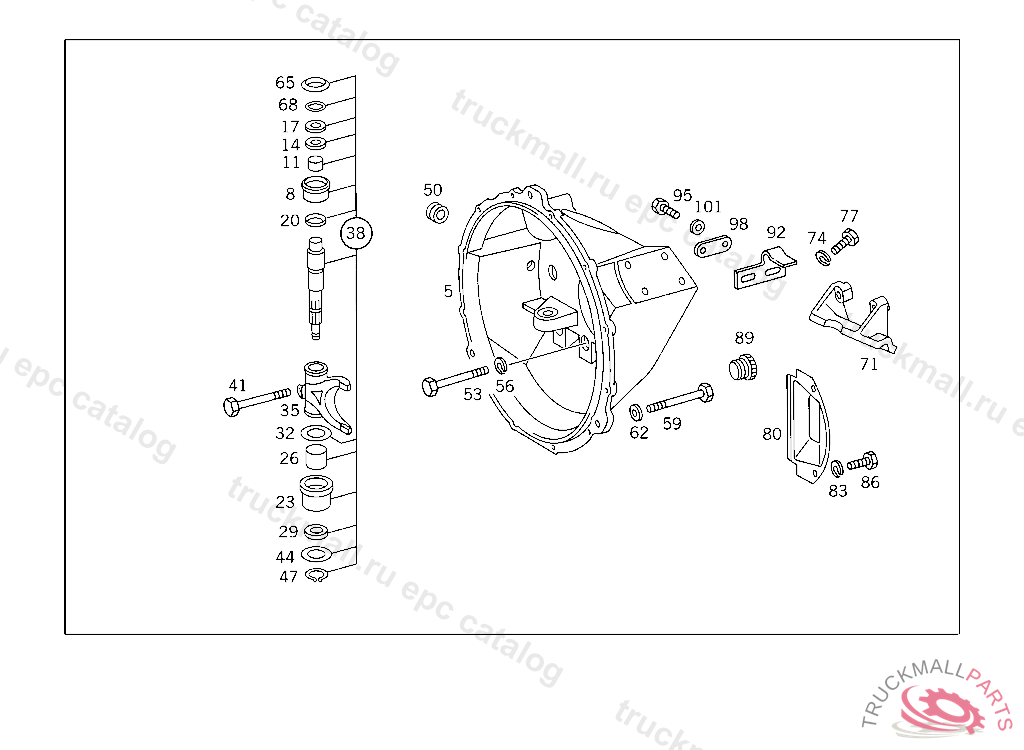

HOUSING BELL HOUSING WITH BUSHINGS
8
BUSHING ,5 285575, Replaced By: A6202510050, +001A6202500155, +001A0099971547
8
BUSHING RELEASE SHAFT,TOP
11
BUSHING RELEASE SHAFT,TOP 35X39 MM
14
SEAL RING RELEASE SHAFT,TOP
17
COVER PLATE RELEASE SHAFT,TOP
20
SEAL RING RELEASE SHAFT,TOP 40X52X7 MM
20
SEAL RING RELEASE SHAFT,BOTTOM 40X52X11 MM
23
BUSHING RELEASE SHAFT,BOTTOM
26
BUSHING RELEASE SHAFT,BOTTOM 24X27 MM
29
SEAL RING BOTTOM
32
WASHER AS REQUIRED 1.00 MM
32
WASHER AS REQUIRED 1.3 MM
32
WASHER AS REQUIRED 1.20 MM
32
WASHER AS REQUIRED 0.80 MM
35
RELEASE LEVER CLUTCH ACTUATION
38
REPAIR KIT , Replaced By: A3892500014
38
SHAFT , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 5 285575, Replaced By: A3852500014
41
SCREW
44
SPACER WASHER RELEASE SHAFT,BOTTOM
47
LOCK RING RELEASE SHAFT,BOTTOM
50
PLUG BELL HOUSING
50
PLUG BELL HOUSING
53
SCREW , Replaced By: N308676018010
53
SCREW , Replaced By: N000961018046
56
LOCK WASHER BELL HOUSING TO TRANSMISSION
59
SCREW CLUTCH SLAVE CYLINDER TO BELL HOUSING M 10X45
59
SCREW RADIATOR M 10X45
62
WASHER , Replaced By: N000125010532
65
COVER RELEASE SHAFT,TOP
65
WASHER LEVER TO RELEASE SHAFT,5 285575
65
WASHER , Replaced By: A6202540176
68
SEAL RING LEVER TO RELEASE SHAFT,5 285575
71
BRACKET CLUTCH ACTUATION
74
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
77
HEXAGON HEAD BOLT BRACKET TO BRACKET
77
SCREW , Replaced By: N304017010002
80
COVER PLATE , THE OLD PART MUST NO LONGER BE INSTALLED THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A3972510083, +002A0002510183
80
PLUG BELL HOUSING
83
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
86
SCREW , Replaced By: N304017008016
89
PLUG BELL HOUSING
92
POINTER CLUTCH LINING WEAR, 396.3 10/20 6 900235 396.3 50/60 5 353180 396.4 NOT USED
95
SCREW BRACKET ON LOAD SENSOR
95
SCREW , Replaced By: N910105006023
98
LOCK POINTER TO CLUTCH ACTUATION BRACKET, 396.3 10/20 6 900235 396.3 50/60 5 353180 396.4 NOT USED
101
WASHER , Replaced By: N009021006208
999
WASHER AS REQUIRED 0.90 MM
999
WASHER AS REQUIRED 1.10 MM
999
HOUSING ,4 7439865 285575, Replaced By: A6202501205, +001A6202500155
