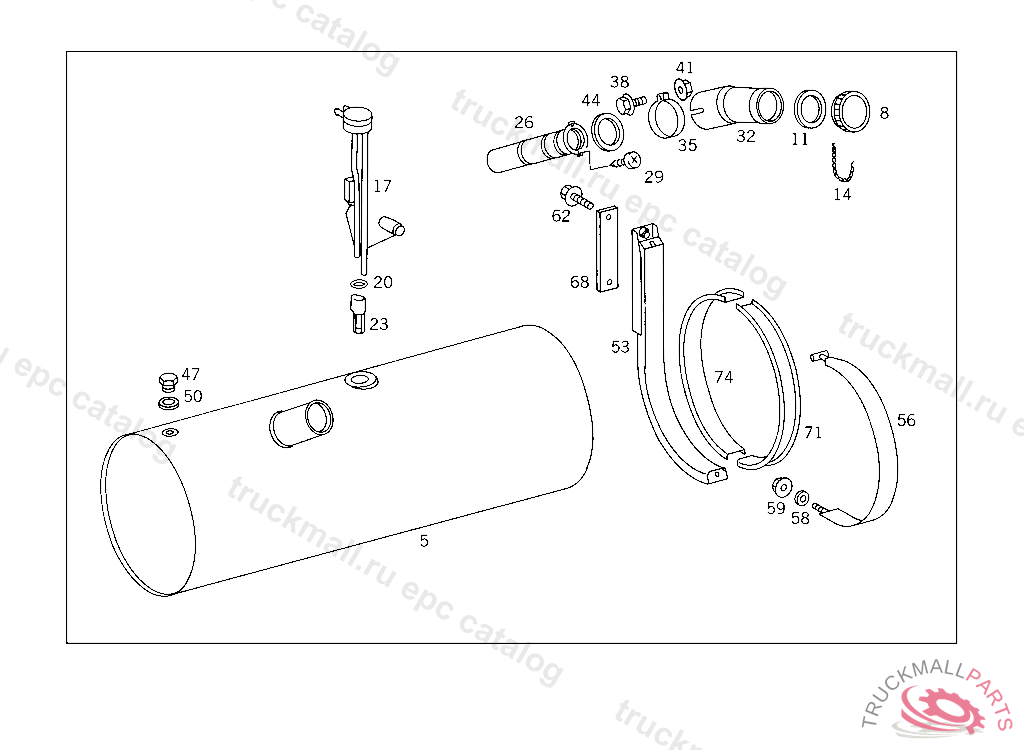

Поз.
Артикул
Описание
5
FUEL TANK , Replaced By: A3554700101
8
FILLER CAP
8
FILLER CAP , Replaced By: A0004700305
11
SEAL RING
14
CHAIN FILLER CAP
17
SENDER UNIT FUEL GAUGE
20
SEAL RING FUEL GAUGE SENDER UNIT TO FUEL TANK
23
FUEL STRAINER FUEL TANK,K 169122
26
FUEL STRAINER ,5 052322
26
FUEL STRAINER FILLER NECK,5 052323
26
FUEL STRAINER FILLER NECK,5 052323
29
SHEET METAL SCREW , Replaced By: N007981004339
29
SHEET METAL SCREW , Replaced By: N000000000459
32
FILLER NECK DETACHABLE
35
CLAMP
38
SCREW , Replaced By: N304017008034
38
SCREW , Replaced By: N910142008009
41
NUT , Replaced By: N913004008001
41
NUT BRACKET TO BRACKET
44
SEAL RING
47
SCREW PLUG , Replaced By: N007604014110
50
SEAL RING FUEL LINE TO FEED PUMP
53
SUPPORT FRONT
53
SUPPORT REAR
56
STRAP FUEL TANK TO CONSOLE,5 149420
59
NUT STRAP TO SUPPORT,5 149419
59
NUT STRAP TO SUPPORT
59
NUT STRAP TO SUPPORT
62
SCREW , Replaced By: N308676014020
62
SCREW SUPPORT TO SIDE MEMBER M14X40
68
SHIM SUPPORT TO SIDE MEMBER
71
PAD FUEL TANK TO SUPPORT, ORDER BY THE METER
74
PAD FUEL TANK TO SUPPORT, ORDER BY THE METER
999
FUEL TANK , Replaced By: A3874701301
999
STRAP ,5 149419, Replaced By: A6204700340, +001N000934012022
999
FILLER CAP , Replaced By: A0004700305
999
FILLER CAP , Replaced By: A0004700305
999
FILLER CAP , Replaced By: A0004717930
