Поз.
Артикул
Описание
5

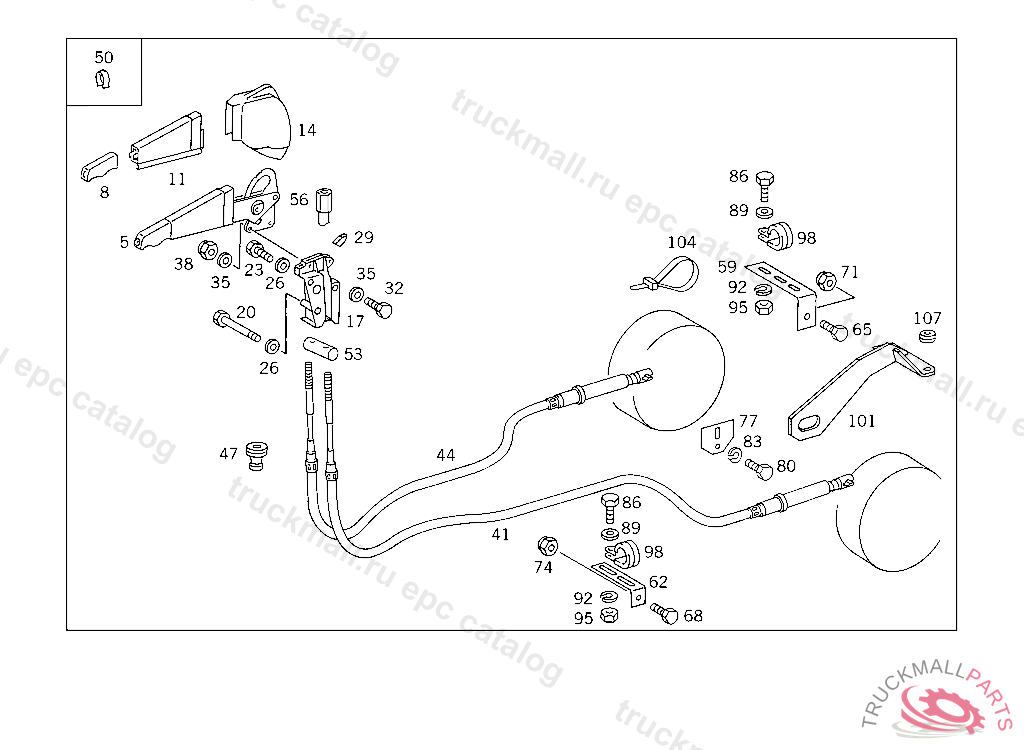

BRAKE LEVER , NO.8650I.......I.......I I II
8
HANDLE , NO.8650I.......I.......I I II .......INO.9985I.......I I II
11
COVERING , NO.8650I.......I.......I I II .......INO.9985I.......I I II
14
COVERING , NO.8650I.......I.......I I II .......INO.9985I.......I I II
17
CONSOLE
17
CONSOLE
20
SCREW CONSOLE TO CAB M 10X80
23
SCREW BRACKET TO SIDE MEMBER M10X30
26
WASHER CONSOLE TO CAB
29
STOP BUFFER. DAMPING RING
32
SCREW CROSS MEMBER TO SIDE MEMBERS
35
WASHER GROUND CABLE
38
NUT BRAKE LEVER TO CONSOLE
41
BRAKE CABLE FRONT LEFT
44
BRAKE CABLE FRONT RIGHT
47
GROMMET
50
SPRING BRAKE CABLE
53
PIN BRAKE CABLE TO BRAKE LEVER
56
NUT BRAKE CABLE TO BRAKE LEVER
59
BRACKET TO ENGINE
62
BRACKET BRACKET TO FENDER BRACKET
65
SCREW STEERING SHAFT BEARING TO CAB M 8X20
68
SCREW BRACKET TO REAR CROSS MEMBER
71
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
74
NUT GUSSET PLATES AND REAR CROSS MEMBER TO SIDE MEMBERS
77
GUIDE PLATE REAR BRAKE CABLE TO BRACKET
80
SCREW PARKING BRAKE VALVE TO INSTRUMENT PANEL,TB108828
83
LOCK WASHER RAIL TO BATTERY SUPPORT
86
SCREW BATTERY POS. CABLE TO BRACKET,PB004444
89
WASHER PLUG SOCKET TO BRACKET
92
LOCK WASHER CABLE TO FUSE BOX
95
NUT
98
CLAMP DELIVERY AND SUCTION LINES TO FRAME
98
CLAMP BATTERY POS. CABLE TO BRACKET
101
BRACKET
104
LOOM TIE ELECTRIC CABLE MOUNTING
104
CABLE TIE. LOOM TIE CABLE TO ALTERNATOR
107
GROMMET LINE THRU LEFT SIDE MEMBER
