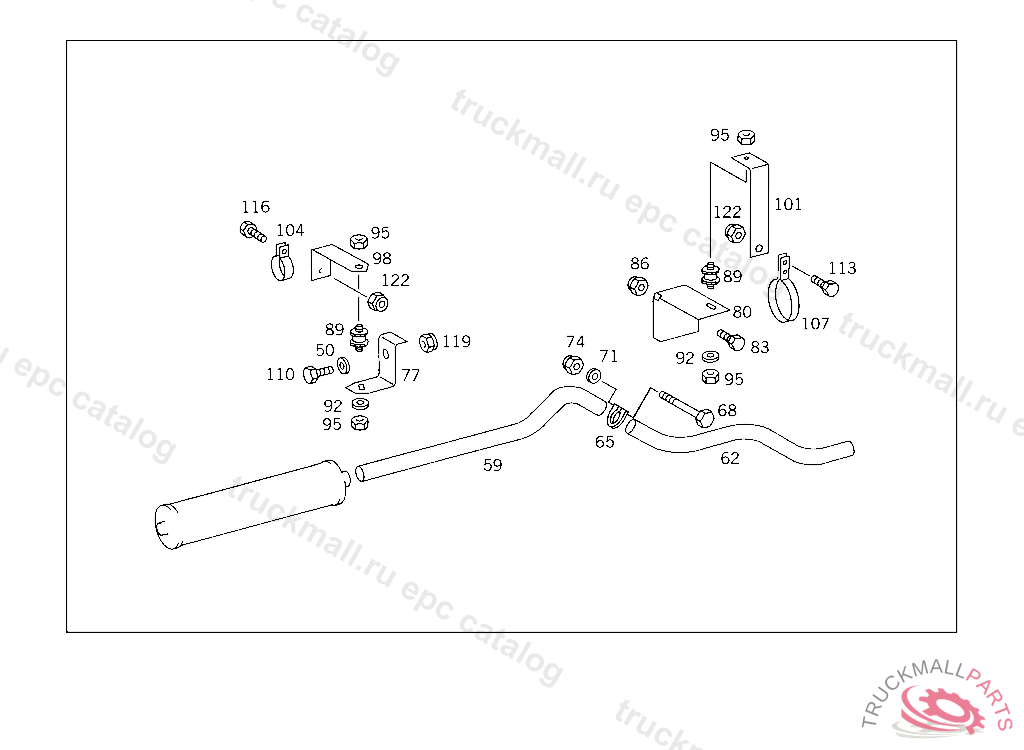

Поз.
Артикул
Описание
50
WASHER GROUND CABLE
59
REAR EXHAUST PIPE ,D 339845
62
REAR EXHAUST PIPE (TAIL PIPE),D 339845
65
CLAMP FLEXIBLE METAL TUBE TO EXHAUST PIPE
68
71
WASHER TRAILER PLUG SOCKET TO BRACKET
74
NUT , Replaced By: A1201420072
74
HEXAGON NUT SCREENING PLATE,5 163561
77
BRACKET REAR EXHAUST PIPE TO BRACKET AT SHOCK ABSORBER CROSS MEMBER,D 250888
80
BRACKET ,D 250888
83
SCREW ANGLE TO CROSS MEMBER M 10X30
83
SCREW , Replaced By: N304017010040
86
NUT BRACKET TO SIDE MEMBER,XB209706
89
RUBBER BUFFER EXHAUST MUFFLER
92
WASHER GROUND CABLE
95
NUT BRACKET TO RETARDER
98
SUPPORT ,D 250888
101
SUPPORT ,D 250888
104
CLAMP REAR EXHAUST PIPE TO SUPPORT,D 250888
107
CLAMP EXHAUST PIPE TO SUPPORT,D 250888
110
SCREW BRACKET TO SIDE MEMBER
113
SCREW LINES TO BRACKET
116
SCREW POWER CYLINDER TO BEARING BRACKET
119
NUT , Replaced By: N910113010004
122
HEXAGON NUT SCREENING PLATE,5 163561
122
NUT , Replaced By: A1201420072
