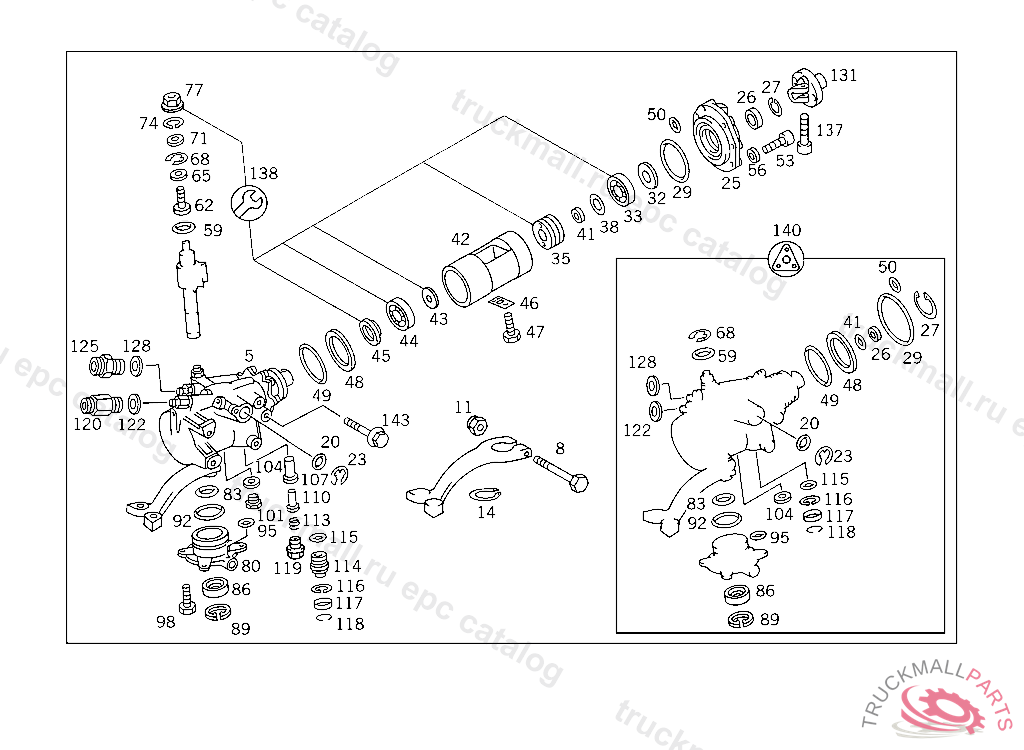

Поз.
Артикул
Описание
5
STEERING BOX ASSEMBLY WITH PITMAN ARM, 1B 022104 2B 051198 PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
5
STEERING BOX ASSEMBLY WITH PITMAN ARM, 1B 022104 2B 051198 PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
5
STEERING BOX ASSEMBLY WITH PITMAN ARM, INAPPLICABLE TO VEHICLES WITH SPORTS UNDERCARRIAGE PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
5
STEERING BOX ASSEMBLY WITH PITMAN ARM, INAPPLICABLE TO VEHICLES WITH SPORTS UNDERCARRIAGE PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
8
SCREW , Replaced By: N308676010017
8
SCREW CLAMP, ONE-HOLE
11
NUT , Replaced By: N910113010002
11
HEXAGON NUT
14
LOCK PITMAN ARM TO STEERING BOX ASSEMBLY
20
SEAL RING , 023 10/50,12/52 056284 023 20/60,22/62 057848 033 10/50,12/52 027436 033 20/60,22/62 028023 123 10/50,12/52 029863 123 20/60,12/52 041002 130 10/50,12/52 051238 130 20/60,22/62 052678
23
LOCK CONTROL VALVE
25
STEERING BOX COVER
25
STEERING BOX COVER
26
SEAL RING
26
SEAL RING , Replaced By: A0119976746
26
SEAL RING , Replaced By: A0199975147
27
LOCK
29
SEAL RING STEERING NUT BEARING 75X3 MM
32
THRUST WASHER
33
ROLLER BEARING
35
THREADED INSERT
38
WASHER
41
SEAL RING , 023 10/50,12/52 056284 023 20/60,22/62 057848 033 10/50,12/52 027436 033 20/60,22/62 028023 123 10/50,12/52 029863 123 20/60,12/52 041002 130 10/50,12/52 051238 130 20/60,22/62 052678
42
PISTON
42
PISTON
43
WASHER
44
ROLLER BEARING
45
ANGULAR CONTACT BEARING
46
LOCK , 023 10/50,12/52 056283 023 20/60,22/62 057847 033 10/50,12/52 027435 033 20/60,22/62 028022 123 10/50,12/52 029862 123 20/60,12/52 041001 130 10/50,12/52 051237 130 20/60,22/62 052677
47
SCREW FEED LINE AND RETURN LINE
48
SEAL RING
49
SEAL RING
50
SEAL RING VALVE
53
SCREW. CAP BOLT COVER TO CASE M8X25
53
SCREW , Replaced By: N000912008202
56
WASHER BRACKET TO CROSS MEMBER
59
SEAL RING
62
SCREW
65
THRUST WASHER2.65 MM
65
THRUST WASHER2.95 MM
65
THRUST WASHER2.80 MM, TO BE ADAPTED DURING ASSEMBLY
65
THRUST WASHER2.75 MM
65
THRUST WASHER3.00 MM
65
THRUST WASHER3.05 MM
65
THRUST WASHER3.10 MM
65
THRUST WASHER2.85M
65
THRUST WASHER2.70 MM
65
THRUST WASHER2.80 MM, Replaced By: A1074620262
68
LOCK
71
THRUST WASHER SHOCK ABSORBER TO TOP BRACKET
74
LOCK RINGTO 000 553 37 01,000 553 39 01,
77
NUT
77
NUT , Replaced By: A0009904050
80
STEERING BOX COVER
83
SEAL RING
86
SEAL RING , Replaced By: A0119976846
86
SEAL RING , Replaced By: A0199975047
86
SEAL RING
92
SEAL RING
95
SEAL RING VALVE
98
SCREW
98
SCREW , Replaced By: A1249900912
101
SCREW PLUG MID-POSITION BORE
104
SEAL RING PNEUMATIC VALVE
104
SEAL RING , Replaced By: N007603010110
107
BUSHING
110
PIN
113
SPRING , 1F 058034 2F 052097
113
SPRING , 1F 058035 2F 052098
114
COVER , 1F 058034 2F 052097
115
SEAL RING , 1F 058034 2F 052097
116
LOCK , 1F 058034 2F 052097
117
THRUST WASHER , 1F 058034 2F 052097
118
LOCK , 1F 058034 2F 052097
119
SCREW PLUG
120
FITTING ENGINE BREATHING
122
SEAL RING PRESSURE REGULATOR,CONNECTION: "23",5 161701
125
FITTING LOW PRESSURE
128
SEAL RINGTO 000 553 03 05,000 553 18 05,
131
STEERING COUPLING
137
SCREW
137
SCREW , Replaced By: A2029902101
137
LOCK WASHER PARKING BRAKE VALVE TO WINDOW SILL
138
REPAIR KIT
140
GASKET KIT , BEI BM 290,393 RECHTSLENKER ANSTELLE 012 997 80 47 VERWENDEN: 1 DICHTRING 016 997 65 47
143
SCREW
143
SCREW , Replaced By: A1299901101
