Поз.
Артикул
Описание

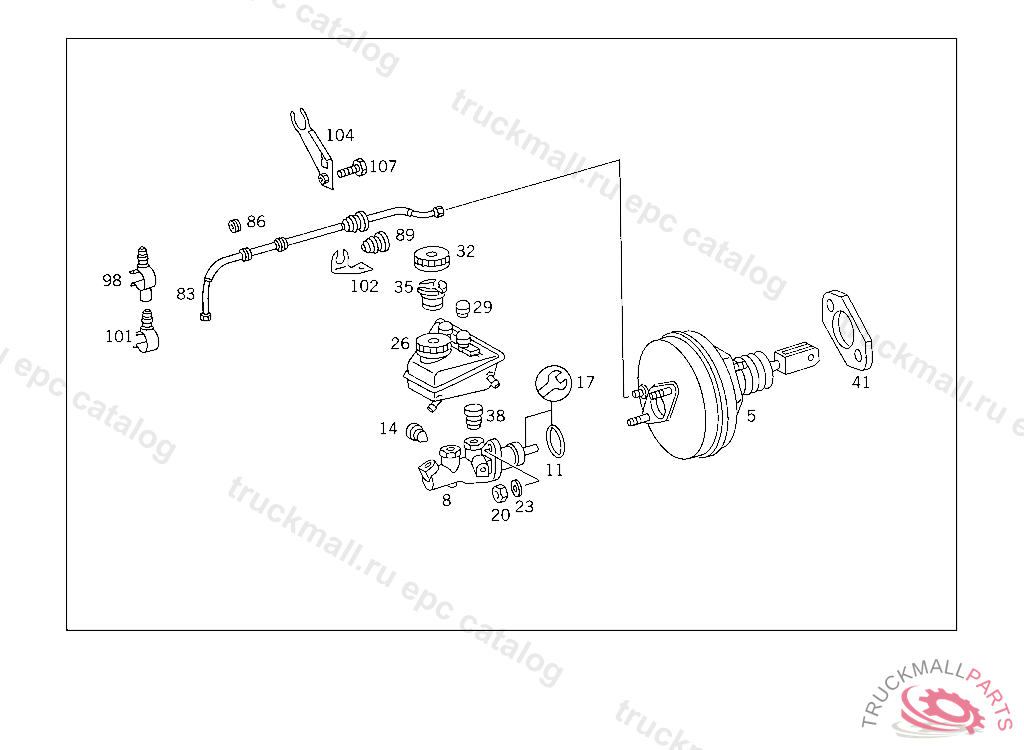

5
BRAKE BOOSTER ASSEMBLY
5
BRAKE BOOSTER ASSEMBLY , Replaced By: A0044300830
5
BRAKE BOOSTER ASSEMBLY , Replaced By: A0044303130
5
BRAKE BOOSTER ASSEMBLY , Replaced By: A0044303130
8
BRAKE MASTER CYLINDER , Replaced By: A0054302401
8
BRAKE MASTER CYLINDER
8
BRAKE MASTER CYLINDER
11
SEAL RING
11
SEAL RING
14
SCREW PLUG BRAKE MASTER CYLINDER
14
SCREW PLUG , Replaced By: A1269970232
17
GASKET KIT. REPAIR KIT BRAKE MASTER CYLINDER, Replaced By: A0014304660
17
REPAIR KIT BRAKE MASTER CYLINDER
20
NUT
23
WASHER EXHAUST MUFFLER TO STRAP
26
RESERVOIR , FOR USE WITHOUT ACCELERATION SKID CONTROL(A S R)
26
RESERVOIR , Replaced By: A0004300202
26
RESERVOIR , Replaced By: A0004300202
29
PROTECTIVE CAP , 000 113166 003 057448 007 046963 083 001049 086 000766 093 000621 102,103 092825 105 116297 183 001424 190 001362
29
PROTECTIVE CAPGIRLING
32
COVER
32
COVER , Replaced By: A0004307514
32
COVER , Replaced By: A2024300014
32
FILLER CAP , Replaced By: A0004300014
35
STRAINER , Replaced By: A0004314334
35
STRAINER
38
BUSHING
38
BUSHING , Replaced By: A0004311550
41
GASKET BRAKE BOOSTER ASSEMBLY TO FIRE WALL
83
LINE FROM INTAKE MANIFOLD TO BRAKE BOOSTER ASSEMBLY
83
LINE FROM INTAKE MANIFOLD TO BRAKE BOOSTER ASSEMBLY, A 780408
83
LINE FROM INTAKE MANIFOLD TO BRAKE BOOSTER ASSEMBLY, A 780407
86
GROMMET ,D 314239
89
GROMMET
98
BRACKET LINE MOUNTING 11 MM
98
CLAMP , Replaced By: A0004760436
98
CLAMP , Replaced By: A0004760436
101
CLAMP6/14-15 MM
102
BRACKET
104
BRACKET
107
SCREW COVER PLATE TO COVER PLATE M 6 X 10
