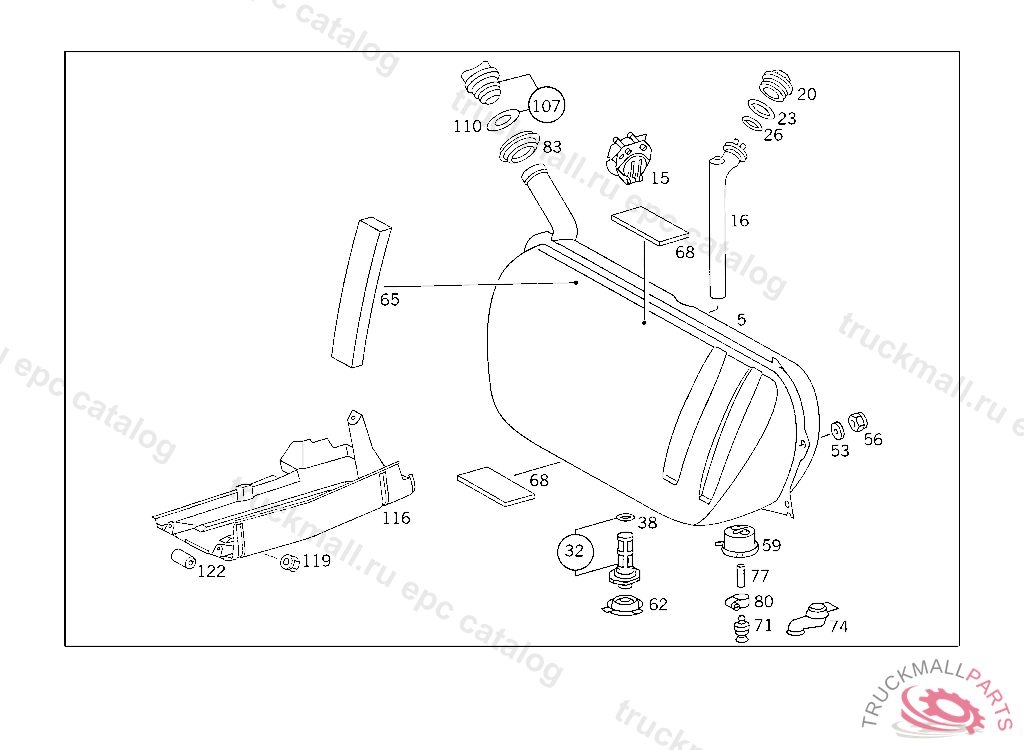

Поз.
Артикул
Описание
5
FUEL TANK , Replaced By: A1244706301
5
FUEL TANK , Replaced By: A1244700304
5
FUEL TANK , Replaced By: A1244705801
5
FUEL TANK70 L.
15
FUNNEL , Replaced By: A1694700029
15
FILLER NECK
16
GAUGE SENDER UNIT70 L
20
FLANGE
23
SEAL RING
26
SEAL RING
32
FUEL STRAINER PARTS KIT
32
FUEL STRAINER
38
SEAL RING
53
WASHER PROTECTIVE PLATE TO BRACKET,5 502998
56
NUT SWITCH TO FLOOR PLATE
59
BOOT LEFT
62
BOOT RIGHT
65
PAD FUEL TANK,FRONT SIDE, 020 008805 023 010290 026 002881 120 012502 123 005628 126 006101 130 009362
68
PAD FUEL TANK BOTTOM SIDE
68
SHIM , Replaced By: A1244750020
71
VALVE , 003,004,080,083 NOT FOR RETROFIT/CATALYST VEHICLES
71
VALVE , 003,004,080,083 NOT FOR RETROFIT/CATALYST VEHICLES
74
BOOT , 003,004,080,083 NOT FOR RETROFIT/CATALYST VEHICLES
77
HOSE ***
77
HOSE , Replaced By: A2019970852
80
LOOM TIE , Replaced By: A1249972090
80
LOOM TIE
83
GROMMET FILLER NECK THRU FENDER RECESS
107
FILLER CAP , Replaced By: A0004700730
110
SEAL RING
116
PROTECTIVE COVER , USED WITHOUT AUTOMATIC LOCKING DIFFERENTIAL (A S D)
116
PROTECTIVE COVER , Replaced By: A1244780637
116
PROTECTIVE COVER , Replaced By: A1244781237
119
NUT COVERING TO CAB FIRE WALL
122
HOSE , ORDER BY THE METER 107.022 005201 ALSO INSTALLED ON 005190-005192,005194-005199. 107.023 012497 107.024 021804 ALSO INSTALLED ON 021794,021804
