Поз.
Артикул
Описание

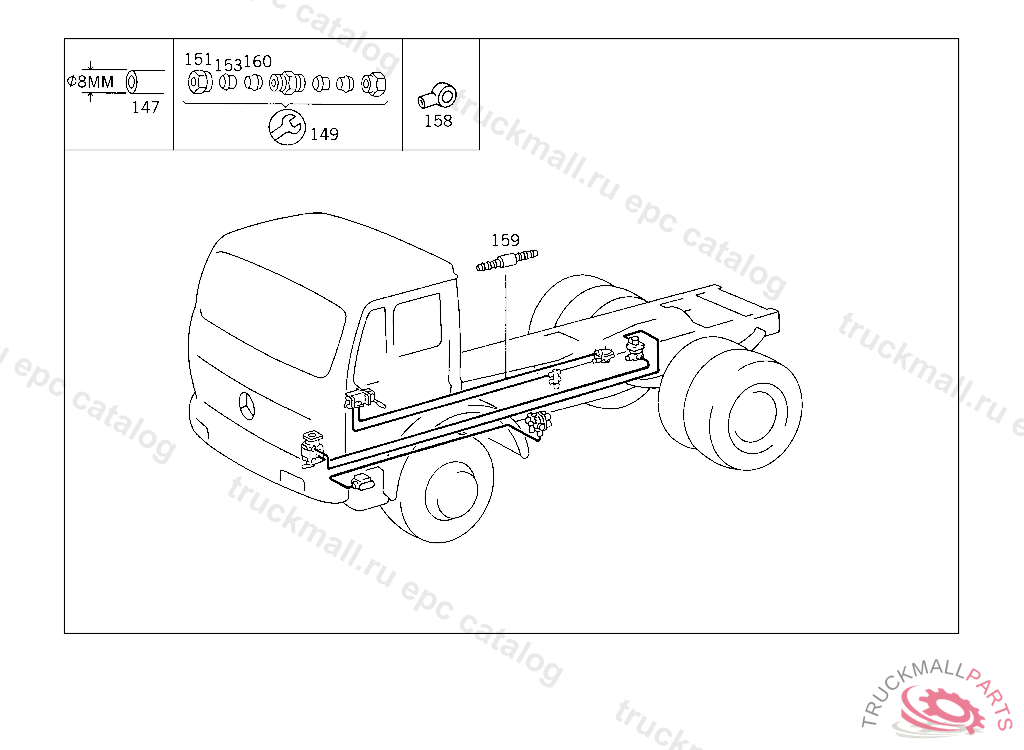

147
PLASTIC PIPE. HOSE AERATION 6X8 MM, ORDER BY THE METER
149
FITTING , Replaced By: A0029905971
149
FITTING (PARTS KIT),LINE RUPTURE
151
UNION NUT LINE CONNECTION
153
GLAND LINE CONNECTION
158
BANJO UNION HOSE WIDTH, / I.D., 6/16 MM
158
BANJO UNION HOSE WIDTH, / I.D., 6/12 MM
158
BANJO UNION HEATING CONNECTION,K 169122
160
SLEEVE LINE CONNECTION
160
SLEEVE , Replaced By: N915062006000
999
FITTINGWABCO
999
GUIDE , Replaced By: N071752014000
999
THRUST RING SUCTION LINE TO OIL PUMP
999
THRUST WASHERTO 003 429 12 44,SCHAEFER
999
SEAL CONETO 003 429 12 44,SCHAEFER
999
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
999
REPAIR KIT BRAKE POWER REGULATOR TO 002 431 05 12,KNORR
999
MUFFLER , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 4 847992, Replaced By: A6174310073
999
REPAIR KIT , Replaced By: A0004300207
999
REPAIR KITTO 000 429 26 95,KNORR
999
REPAIR KITTO 002 431 83 06, KNORR 90309
999
REPAIR KIT BLEEDER VALVE TO 001 431 67 05,BOSCH
999
REPAIR KIT , EXHAUST STOCK OF OLD PARTS NUMBER FIRST UP TO WABCO NR.0182, Replaced By: A0004306260
999
REPAIR KIT , Replaced By: A0014300460
999
BREATHER PIPETO 001 431 83 05,WABCO
999
GASKET34X2X6 MM,GRAU
999
FILLER RINGTO 001 431 83 05,WABCO
999
VALVE SEATGRAU
999
DIAPHRAGMTO 007 420 42 18,KNORR
999
DIAPHRAGMBOSCH,K 262627
999
VALVEWABCO
999
PISTONTO 001 431 83 05,WABCO
999
RING DRAIN VALVE TO 000 432 08 07, NOT USED
999
NUT POWER CYLINDER TO BRACKET
999
BANJO UNION REPAIR SIZE
999
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
999
PLUG
999
REPAIR KIT PRESSURE REGULATOR WABCO
999
SEAL RING28X2 MM,GRAU
999
SEAL RING86X2 MM,GRAU
999
PRESSURE REGULATOR ,5 148812, Replaced By: A0024314306
999
VALVE , Replaced By: A0024314006
999
ELBOW FITTING TRAILER CONTROL VALVE,CONNECTION: 1.1
999
LOOM TIE LINE MOUNTING 280 MM
999
REPAIR KIT SPRING LOAD ACCUMULATOR PART KNORR,K 262627
999
REPAIR KIT. BRAKE CYLINDER DIAPHRAGM PART TO 007 420 42 18, KNORR
999
REPAIR KIT DIAPHRAGM PART KNORR, Replaced By: A0024209524
999
VALVE , Replaced By: A0034295344
999
REPAIR KIT VALVE KIT WABCO,5 148812
999
VALVE , Replaced By: A0024312706
999
REPAIR KIT , Replaced By: A0004301109
999
REPAIR KITTO 001 431 12 06, KNORR 3200
999
REPAIR KIT , Replaced By: A0004301160, +001A0004310273, +001A0004318383, +002A0004312185
999
VALVE (CHECK VALVE) WABCO
999
REPAIR KITTO 002 430 98 81,99 81,KNORR
999
REPAIR KITTO 001 430 66 81,001 430 67 81,KNORR
999
SEAL RINGTO 000 429 27 95, NO LONGER AVAILABLE INDIVIDUALLY,BUT ONLY IN REPAIR KIT
999
SEAL RING22.3X2.4 MM,GRAU
999
SEAL RINGTO 000 429 28 95,GRAU
999
SEAL RING13.6X2 MM,TO 003 429 12 44,SCHAEFER
999
SEAL RING15.3X2.4 MM,TO 003 429 12 44,SCHAEFER
999
CLAMP BRAKE HOSE
999
WASHER BRACKET TO LEFT SIDE MEMBER
999
WASHER , Replaced By: A3609902340
999
GROMMET ,5 585846
999
PROTECTIVE PLATE , ELIMINATED - NO LONGER REQUIRED
999
WEB AT BRACKET,5 356526
999
BRACKET REGULATING VALVE, NOT USED
999
BRACKET METAL SPRING BELLOWS
999
BRACKET TRUCK-TRACTOR BRAKE VALVE
999
BRACKET COMPRESSED AIR LINE, NOT USED
999
BRAKE HOSE , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 4 847992, Replaced By: A6174310073
999
FITTING , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 4 847992, Replaced By: A6174310073
999
CLAMP BRAKE HOSE
999
FITTING ENGINE AIR COMPRESSOR,CONNECTION: "20"
999
BRACKET METAL SPRING BELLOWS,5 2986135 356525
999
WASHER , Replaced By: N000125008443
999
WASHER EXHAUST MUFFLER TO STRAP
999
NUT , Replaced By: N308675016001
999
SCREW PLUG , Replaced By: N000908022011
999
SCREW PLUG LOAD/NO-LOAD VALVE,CONNECTION: "21"
999
SCREW , Replaced By: N304017008021
999
SCREW END PIECE TO EXHAUST PIPE M 10X25
999
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
999
SCREW , Replaced By: N304017010002
999
SCREW METAL SPRING BELLOWS TO BRACKET,4 957941
999
SCREW BRACKET TO FRAME M 12X35
999
SCREW BRACKET TO SIDE MEMBER
999
SCREW STRUT TO EXHAUST PIPE AND TO SIDE MEMBER
999
WASHER STRAP TO SUPPORT
999
CLAMPING SLEEVEKNORR
999
WASHER , Replaced By: N007349010007
999
WASHER STRUT TO CROSS MEMBER
999
SEAL RING DOUBLE BRAKE LINE COUPLING, CONNECTIONS: "11,12"
999
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
999
SEAL RING LOAD/NO-LOAD VALVE,CONNECTIONS: "20,21",5 727400
999
YOKETO 008 420 95 18,008 420 97 18,BOSCH
999
FITTING ,4 667210
999
NUT LOAD/NO-LOAD VALVE,CONNECTIONS: "10,20"
999
SCREW PIPE CLAMP
999
SCREW BRACKET TO SIDE MEMBER
999
NUT FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION: "22",4 821954
999
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
999
NUT SUPPORT TO SIDE MEMBER
999
NUT BRACKET TO SIDE MEMBER
999
LOCK WASHER FITTING TO BRACKET
999
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
999
NUT , Replaced By: N913004008001
999
NUT , Replaced By: N910113014001
999
HOLLOW SCREW FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "10",K 009079
999
HOLLOW SCREW FITTING LEFT AND RIGHT COMBINATION CYLINDERS, CONNECTION: "11,12",5 356525
999
SEAL RING , Replaced By: N007603012121
999
HOLLOW SCREW FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION: "24"
999
SLEEVE LEAK LINE
999
NUT , Replaced By: A0009903250
