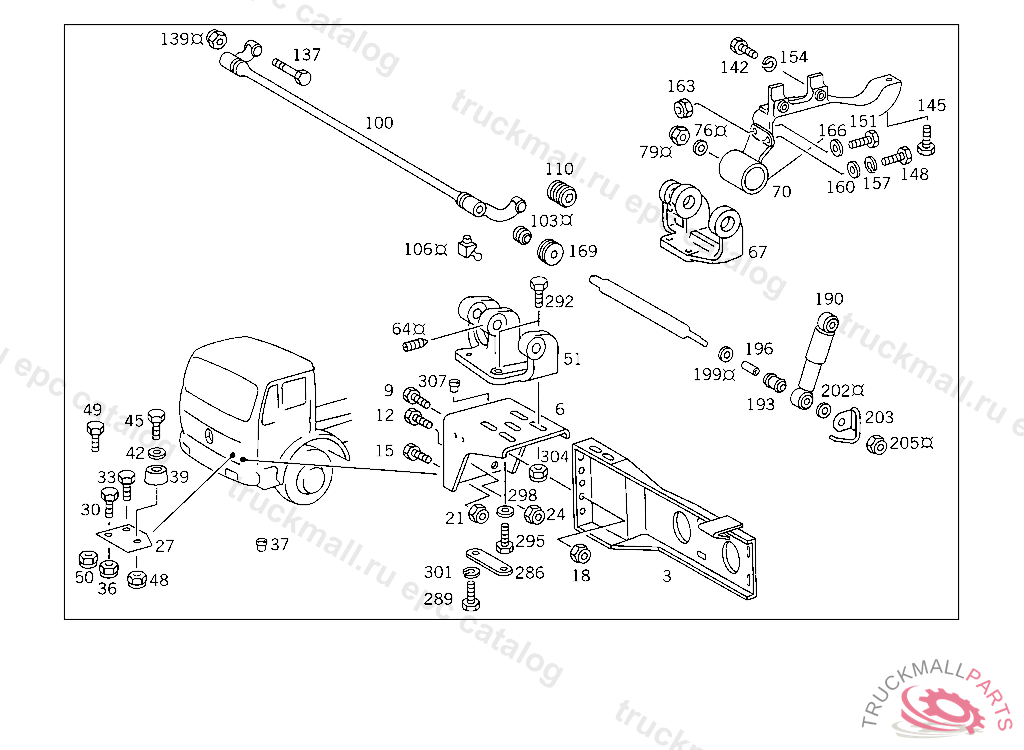

Поз.
Артикул
Описание
3
STRUT BUMPER,LEFT
3
STRUT BUMPER,RIGHT
3
STRUT BUMPER,RIGHT
3
STRUT BUMPER,LEFT
6
CONSOLE PEDESTAL
6
CONSOLE , Replaced By: A3878912631
9
SCREW SUPPORT TO SIDE MEMBER M 14X45
9
SCREW , Replaced By: N308676014012
12
SCREW , Replaced By: N308676016013
12
SCREW BEARING BRACKET TO REAR AXLE M 16X1.5X40
15
SCREW CONSOLE AND STRUT TO FRAME
18
NUT , Replaced By: N910113014000
18
NUT STEERING SUPPORT TO FRAME
21
NUT CONSOLE TO SUPPORT
21
NUT , Replaced By: N910113016001
24
NUT TORSION BAR TO BEARING BRACKET,5 904661
27
BRACKET BUFFER
30
SCREW , Replaced By: N308676012026
30
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X35
33
SCREW CONSOLE TO SIDE MEMBER
36
NUT SUPPORT TO SIDE MEMBER
37
RIVET REAR CROSS MEMBER 12X42 MM
39
MOUNTING (RUBBER BUFFER)
42
WASHER , Replaced By: N009021008213
42
WASHER BRACKET TO LEFT SIDE MEMBER
45
SCREW , Replaced By: N304017008034
48
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
48
NUT , Replaced By: N913004008001
49
SCREW BRACKET TO LEFT SIDE MEMBER
50
NUT BRACKET TO SIDE MEMBER
51
MOUNTING LEFT SIDE MEMBER
51
MOUNTING CAB, RIGHT
64
HEADLESS SETSCREW FOR SPRING
67
MOUNTING CAB,LEFT
67
MOUNTING RIGHT SIDE MEMBER
67
MOUNTING , Replaced By: A6558910420
67
MOUNTING LEFT SIDE MEMBER
67
MOUNTING RIGHT SIDE MEMBER
67
MOUNTING , Replaced By: A6558910320
70
MOUNTING CAB,LEFT
70
MOUNTING CAB, RIGHT
76
WASHER BEARING BRACKET
76
WASHER TORSION BAR TO BEARING BRACKET, Replaced By: N007349017003
76
WASHER TORSION BAR TO BEARING BRACKET
79
NUT COMBINATION CYLINDER TO BEARING BRACKET
79
NUT COMBINATION CYLINDER TO BEARING BRACKET, Replaced By: N910113016002
100
STABILIZER CAB SUSPENSION,FRONT
100
STABILIZER , Replaced By: A6528900104
103
JOINT BEARING , Replaced By: A0009817331
103
JOINT BEARING , Replaced By: A0009817231
103
JOINT BEARING , Replaced By: A0009817231
103
JOINT BEARING
103
JOINT BEARING , Replaced By: A0019814631
103
JOINT BEARING
106
GREASE NIPPLE FOR SPRING
110
SCREW PLUG STABILIZER
110
MOUNTING , NO LONGER AVAILABLE INDIVIDUALLY,BUT ONLY IN REPAIR KIT, Replaced By: A3875860531
110
BUSHING , NO LONGER AVAILABLE INDIVIDUALLY,BUT ONLY IN REPAIR KIT, Replaced By: A3875860531
137
SCREW STABILIZER TO BEARING
139
NUT , Replaced By: N910113014001
139
NUT BRACKET TO SIDE MEMBER
142
SCREW , Replaced By: N308676012011
142
SCREW LEFT AND RIGHT BEARING BRACKETS TO CAB
142
SCREW , Replaced By: N308676012031
145
SCREW BRACKET TO CAB CONSOLE M14X1.5X40
148
SCREW BRACKET TO CAB CONSOLE,K 035197
151
SCREW BRACKET TO SIDE MEMBER
151
SCREW , Replaced By: N000961014064
154
LOCK WASHER FITTING TO BRACKET
157
LOCK WASHER BRACKET TO SIDE MEMBER,5 703114
160
WASHER BRACKET TO SIDE MEMBER,5 703114
163
NUT , Replaced By: N910113014001
163
NUT BRACKET TO SIDE MEMBER
166
WASHER , Replaced By: N000125015019
166
WASHER STRUT TO EXHAUST PIPE AND TO SIDE MEMBER
169
WASHER STABILIZER TO BEARING
190
SHOCK ABSORBER (VIBRATION ABSORBER),CAB REAR SUSPENSION
190
SHOCK ABSORBER (VIBRATION ABSORBER),CAB REAR SUSPENSION
190
SHOCK ABSORBER (VIBRATION ABSORBER),CAB REAR SUSPENSION
193
BUSHING
196
RUBBER MOUNTING
199
WASHER , THE OLD PART MUST NO LONGER BE INSTALLED IN THIS PLACE, Replaced By: A6203170176
199
WASHER VIBRATION ABSORBER TO BEARING AND TO CAB
202
WASHER , Replaced By: N000125013008
202
WASHER
203
BOW VIBRATION ABSORBER TO BEARING AND TO CAB,5 500828
205
NUT SUPPORT TO SIDE MEMBER
286
SHIM , Replaced By: A3878910498
286
SHIM MOUNTING TO CONSOLE
286
SHIM , Replaced By: A3878910498
289
SCREW , Replaced By: N308676014008
289
SCREW BRACKET TO SUPPORT
289
SCREW MOUNTING TO CONSOLE M 14X35
292
SCREW MOUNTING TO CONSOLE M 14X55
295
SCREW CONSOLE TO FRAME
295
SCREW HYDRAULIC CYLINDER BEARING BRACKET TO FRAME M 16X25
295
HEXAGON HEAD BOLT. SCREW ENGINE MOUNTING TO SUPPORT,ON CLUTCH END M 14X30
295
SCREW , Replaced By: N308676016020
295
SCREW , Replaced By: N308676014003
298
WASHER SPARE WHEEL CARRIER
301
LOCK WASHERROCKINGER TYP 59 G140,59 G150
304
NUT , Replaced By: N910113014000
304
NUT STEERING SUPPORT TO FRAME
307
DOWEL PIN MOUNTING TO CONSOLE
999
SPACER TUBE HOLLOW RUBBER SPRING,5 956658
999
WASHER , Replaced By: A6558910210
999
WASHER HOLLOW RUBBER SPRING
999
MOUNTING SPRING AND STABILIZER,RIGHT
999
MOUNTING SPRING AND STABILIZER,LEFT
999
CONSOLE CAB SUSPENSION,FRONT RIGHT
999
CONSOLE CAB SUSPENSION,FRONT LEFT
999
SPACER TUBE
999
BEARING BRACKET LINK,5 172818
999
MOUNTING RIGHT VIBRATION ABSORBER
999
MOUNTING LEFT VIBRATION ABSORBER
999
LEVER (TILTING LEVER),CAB
999
LEVER (TILTING LEVER),CAB
999
SPRING (LEAF SPRING),CAB SUSPENSION
999
SPRING CAB SUSPENSION,FRONT
999
SPACER TUBE VIBRATION ABSORBER TO CONSOLE
999
SPACER TUBE MOUNTING TO CONSOLE
999
RAIL , Replaced By: A6558900122
999
RAIL , Replaced By: A3878901222
999
PIN , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A6205860031
999
RUBBER BUFFER , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A6205860031
999
RUBBER BUFFER , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A6205860031
999
BUSHING SPRING
999
BUFFER (HOLLOW RUBBER SPRING),CAB
999
FLANGE HOLLOW RUBBER SPRING
999
WASHER LEFT AND RIGHT CONSOLES TO CAB
999
CYLINDER HYDRAULIC SYSTEM USED FOR CAB TILTING POWER PACKER
999
PUMP (HAND PUMP) POWER PACKER,4 733732
999
PUMP , Replaced By: A0005536501
