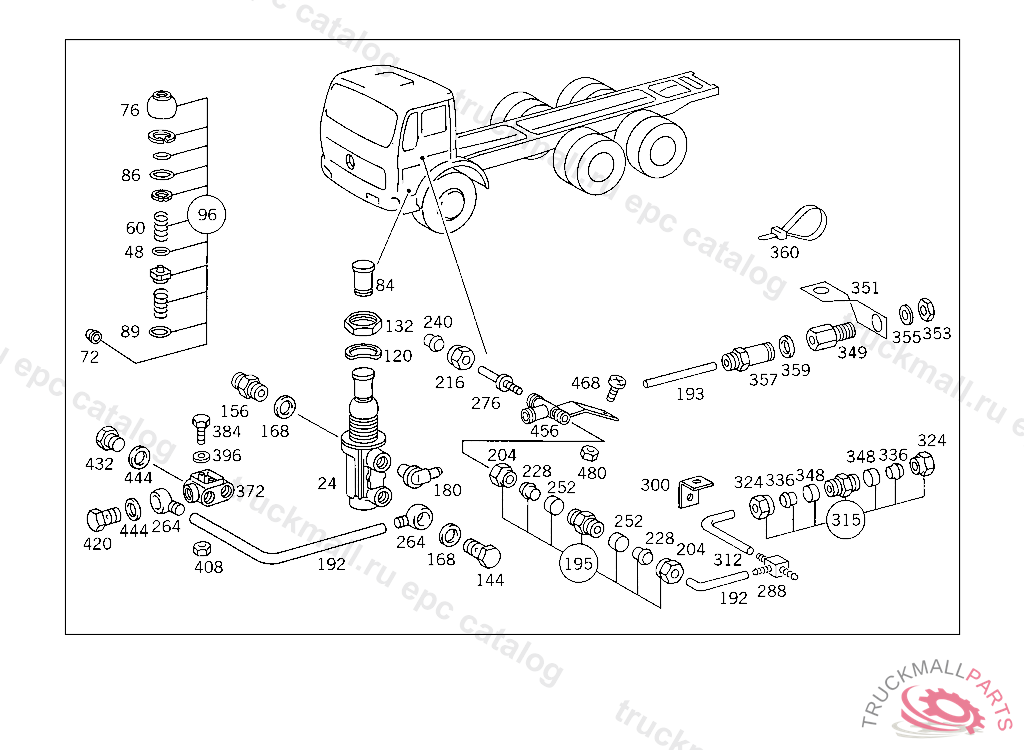

Поз.
Артикул
Описание
24
VALVE EXHAUST BRAKE OPERATING MECHANISM BOSCH
24
VALVE EXHAUST BRAKE OPERATING MECHANISM WESTINGHOUSE
48
SEAL RINGTO 000 434 21 01
60
SPRINGTO 000 434 21 01
72
STRAINERTO 000 434 21 01
76
CUP 3/2-WAY VALVE WABCO
84
HANDLETO 000 434 23 01
86
SEAL RINGTO 000 434 23 01
89
SEAL RINGTO 000 434 23 01
96
REPAIR KIT 3/2-WAY VALVE WABCO
96
REPAIR KIT 3/2-WAY VALVE BOSCH
120
SPRING WASHER AT CAB FLOOR
132
NUT SUCTION LINE TO OIL PUMP
144
HOLLOW SCREW HEATING CONNECTION
156
FITTING LINE CONNECTION, Replaced By: N000000006446
156
FITTING LINE CONNECTION
168
SEAL RING LINE CONNECTION
180
BREATHER , Replaced By: A3933280065
180
PIPE SOCKET COMPRESSED AIR PIPING TO 3/2-WAY VALVE
192
PLASTIC PIPE. HOSE AERATION 6X8 MM, ORDER BY THE METER
195
FITTING (PARTS KIT),LINE RUPTURE
195
FITTING , Replaced By: A0029905971
204
UNION NUT LINE CONNECTION
228
GLAND LINE CONNECTION
252
SLEEVE LINE CONNECTION
264
BANJO UNION HOSE WIDTH, / I.D., 6/12 MM
276
FITTING 3/2-WAY VALVE
288
T-FITTING EXHAUST BRAKE LINE CONNECTION
300
ANGLE LINE MOUNTING
312
PLASTIC PIPE RISING PIPE 4X6 MM
312
HOSE LEAK LINE 4X6 MM, ORDER BY THE METER
315
FITTING (PARTS KIT),LINE RUPTURE,5 909352K 169122
324
UNION NUT
336
SEAL CONE
336
GLAND , Replaced By: A0019901667
348
SLEEVE LEAK LINE
360
LOOM TIE LINE MOUNTING 280 MM
360
LOOM TIE LINE MOUNTING
372
DISTRIBUTOR EXHAUST BRAKE VALVE LINE CONNECTION
384
SCREW DISTRIBUTOR TO CAB
396
WASHER COMPRESSED AIR LINE TO BRACKET
396
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
408
NUT , Replaced By: N913004006001
408
NUT PUMP TO BRACKET
420
HOLLOW SCREW LINE CONNECTION
432
SCREW PLUG, FILLING. SCREW PLUG 3/2-WAY VALVE,CONNECTION: "10"
432
SCREW PLUG , Replaced By: N000908012009
444
SEAL RING LINE CONNECTION
456
BRACKET (T-FITTING) EXHAUST BRAKE LINE CONNECTION
468
SCREW CLAMP TO BRACKET, Replaced By: N007985006581
468
SCREW CLAMP TO BRACKET
480
NUT PUMP TO BRACKET
480
NUT , Replaced By: N913004006001
999
LOOM TIE BRAKE LINE MOUNTING
