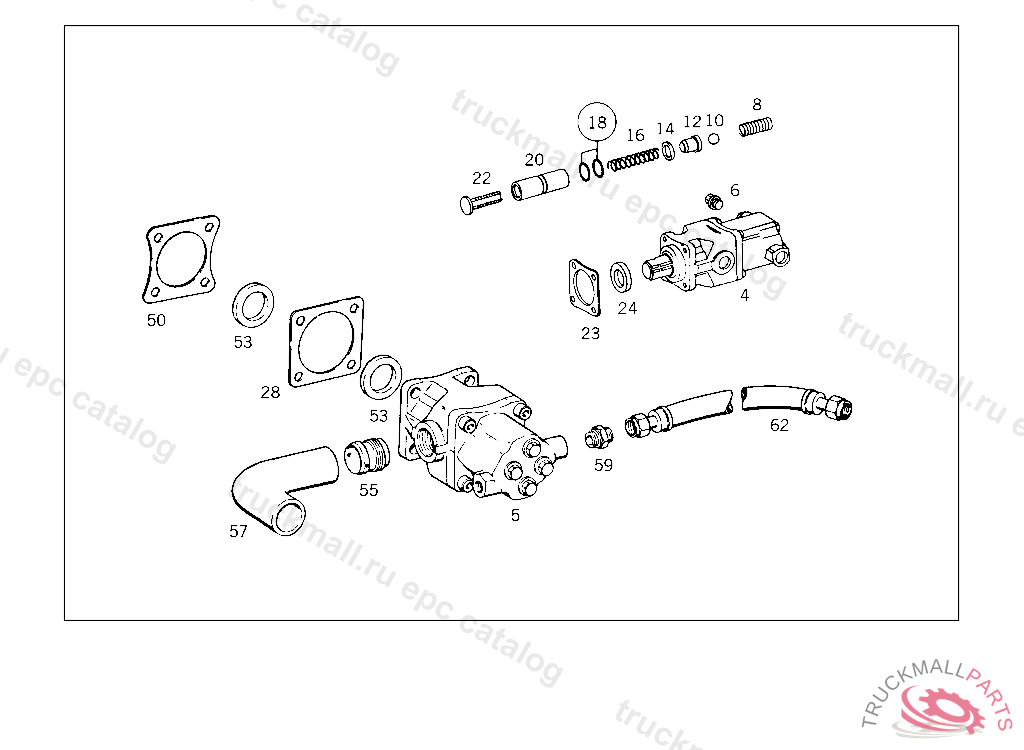

Поз.
Артикул
Описание
4
HYDRAULIC PUMP , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. K 081670, Replaced By: A0012365505
4
HYDRAULIC PUMP SERVICE WITH DUMPING PLATFORM TYPE 295/16
4
HYDRAULIC PUMP SERVICE WITH DUMPING PLATFORM TYP 295/19
4
HYDRAULIC PUMP SERVICE WITH DUMPING PLATFORM TYPE 324/31
4
HYDRAULIC PUMP , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. K 081670, Replaced By: A0012365605
4
HYDRAULIC PUMPTYP 295/69
4
HYDRAULIC PUMP , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 5 233905, Replaced By: A0002369305
4
HYDRAULIC PUMP SERVICE WITH DUMPING PLATFORM TYPE 234/2
4
HYDRAULIC PUMP SERVICE WITH DUMPING PLATFORM TYPE 266
4
HYDRAULIC PUMP SERVICE WITH DUMPING PLATFORM TYPE 266
4
HYDRAULIC PUMPTYP 265/44
4
HYDRAULIC PUMP SERVICE WITH DUMPING PLATFORM TYPE 295/28
4
HYDRAULIC PUMP SERVICE WITH DUMPING PLATFORM TYPE 265/6
4
HYDRAULIC PUMP SERVICE WITH DUMPING PLATFORM TYPE 295/01
4
HYDRAULIC PUMP SERVICE WITH DUMPING PLATFORM TYPE 295/01
4
HYDRAULIC PUMP SERVICE WITH DUMPING PLATFORM TYPE 265/60C
4
HYDRAULIC PUMP SERVICE WITH DUMPING PLATFORM TYPE 296/1
4
HYDRAULIC PUMP SERVICE WITH DUMPING PLATFORM TYP 265/8
4
HYDRAULIC PUMP , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 5 233905, Replaced By: A0002364005
4
HYDRAULIC PUMP SERVICE WITH DUMPING PLATFORM TYPE 266/1
4
HYDRAULIC PUMP , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. K 081670, Replaced By: A0012365705
4
HYDRAULIC PUMPTYP 234/2
4
HYDRAULIC PUMPTYP 234/2
4
HYDRAULIC PUMPTYP 296/69
4
HYDRAULIC PUMPTYP 296/19
4
HYDRAULIC PUMP SERVICE WITH DUMPING PLATFORM TYPE 262/7
4
HYDRAULIC PUMP SERVICE WITH DUMPING PLATFORM TYPE 295/10
4
HYDRAULIC PUMP SERVICE WITH DUMPING PLATFORM TYPE 266/31
4
HYDRAULIC PUMP
5
HYDRAULIC PUMP SERVICE WITH DUMPING PLATFORM TYPE 265/1
6
SCREW PLUG
6
SCREW PLUG
8
SPRING
8
SPRING , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. K 081670
10
BALL (PRESSURE VALVE) 12.7 MM
10
BALL (PRESSURE VALVE) 12.7 MM
10
BALL10 MM
10
BALL10 MM
10
BALL , Replaced By: A0019815085
12
VALVE CHECK VALVE
12
VALVE CHECK VALVE
12
VALVE
12
VALVE , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. K 081670
14
WASHER , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. K 081670
16
SPRING
16
SPRING
16
SPRING
16
SPRING , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. K 081670
18
SEAL RING
18
SEAL RING
18
SEAL RING
18
SEAL RING
20
PISTON , Replaced By: A0002361117
20
PISTON , Replaced By: A0002361117
20
PISTON
20
PISTON
20
PISTON ,5 239905
20
PISTON ,5 239905
20
PISTON , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. K 081670
22
VALVE
22
VALVE
23
GASKET CONNECTION FLANGE
23
GASKET ,5 239906
23
GASKET CASE PART I TO CASE PART II
24
SEAL RING DRIVE SHAFT 50X72X7 MM
24
SEAL RING DRIVE SHAFT 40X58X6/6.5 MM
24
SEAL RING
24
SEAL RING40X58X9 MM
24
SEAL RING LINE CONNECTION
28
GASKET , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. K 081670
28
GASKET
50
GASKET CONNECTION FLANGE
53
SEAL RING
55
FITTING , Replaced By: A0019909478
55
CONNECTOR SUCTION LINE
57
PLASTIC PIPE (ELBOW) 38X87X150 MM
59
FITTING DELIVERY LINE TO PUMP
62
HOSE DELIVERY LINE TO PUMP
999
FITTING PIPE ELBOW CONNECTION 40 MM
999
SPRING HYDRAULIC PUMP, ONLY APPLICABLE TO COMPLETE DUMP TRUCKS
999
FITTING DELIVERY LINE TO PUMP
999
HYDRAULIC PUMP , 867165, Replaced By: A0002366105, +001A0029973972
999
VALVE HYDRAULIC PUMP, ONLY APPLICABLE TO COMPLETE DUMP TRUCKS
999
VALVE HYDRAULIC PUMP, ONLY APPLICABLE TO COMPLETE DUMP TRUCKS
999
SEAL RING HYDRAULIC PUMP, ONLY APPLICABLE TO COMPLETE DUMP TRUCKS
999
WASHER HYDRAULIC PUMP, ONLY APPLICABLE TO COMPLETE DUMP TRUCKS
999
SCREW HYDRAULIC PUMP, ONLY APPLICABLE TO COMPLETE DUMP TRUCKS
